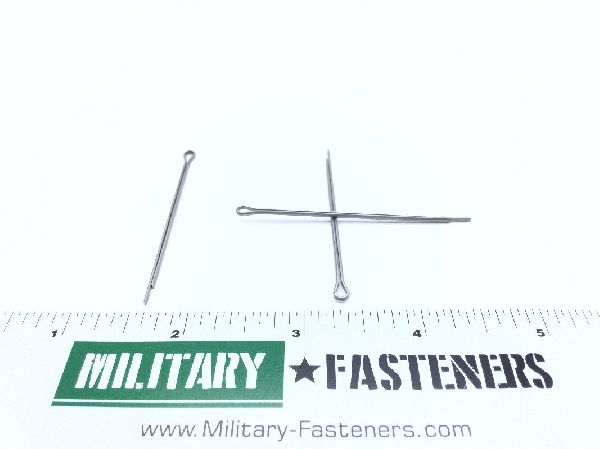

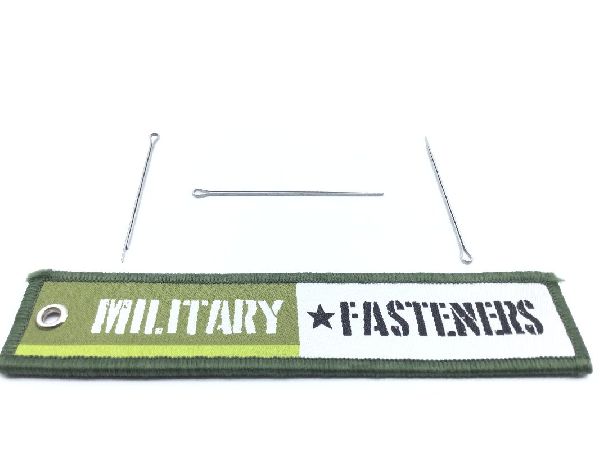

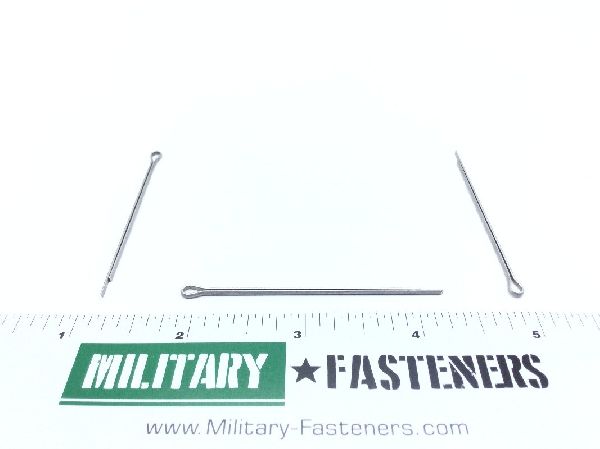

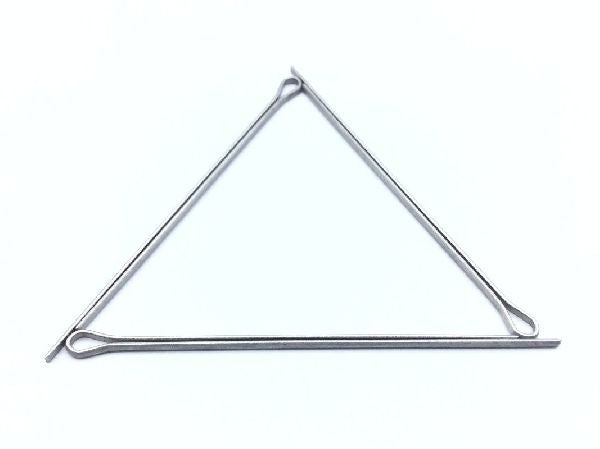

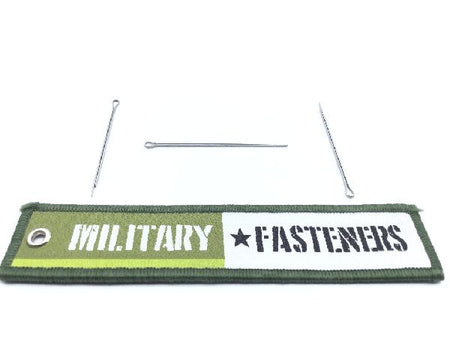

MS24665-162 Cotter Pin
MS24665-162 Cotter Pin (2)
MS24665-162 Cotter Pin (3)
MS24665-162 Cotter Pin (4)
MS24665-162 Cotter Pin (5)
MS24665-162 Cotter Pin (6)
MS24665-162 Cotter Pin
MS24665-162 Cotter Pin (2)
MS24665-162 Cotter Pin (3)
MS24665-162 Cotter Pin (4)
MS24665-162 Cotter Pin (5)
MS24665-162 Cotter Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24665-162 Cotter Pin

Product Series
MS
ECCN
EAR99
Schedule
7318.24.0000
Price per Unit $0.33
Units per Pack 100
Price per Pack $33.00
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:
Total Packs 1
Total Price $33.00
Add item to quote
Material
Steel comp 302 or steel comp 304
Surface Treatment
Astm a380 assn standard single treatment response
Hardness Rating
65.0 rockwell superficial 15-n and 78.0 rockwell superficial 15-n
Material Specification
Astm a493 assn standard single material response
Point Type
Extended prong square cut
Style Designator
Standard
Underloop Length
Between 1.875 inches and 2.125 inches
Diameter
Between 0.056 inches and 0.060 inches
