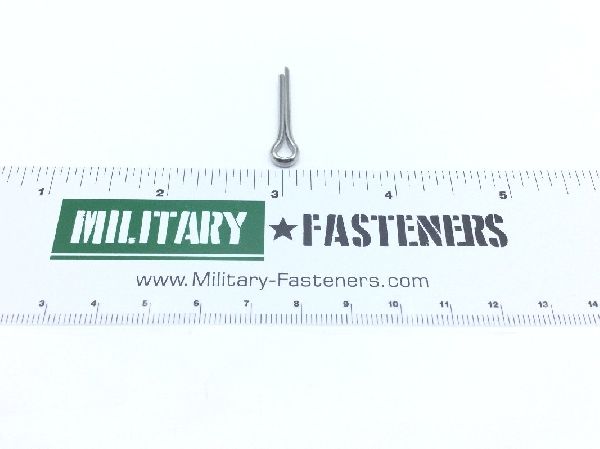

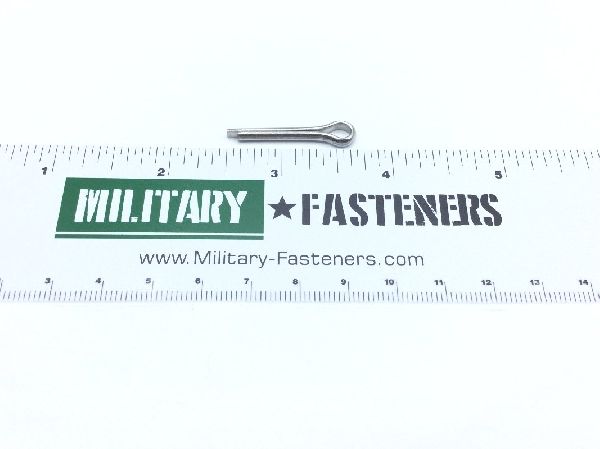

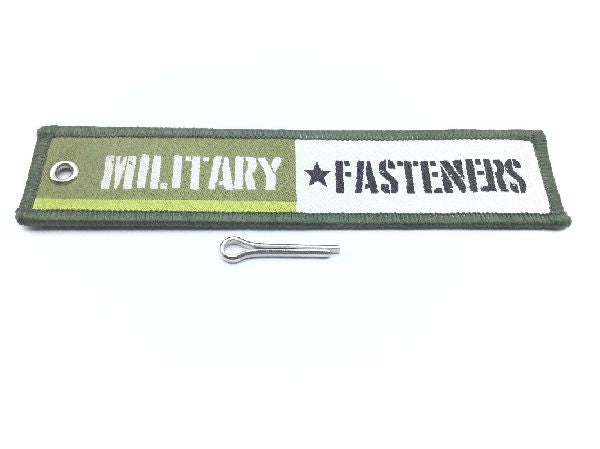

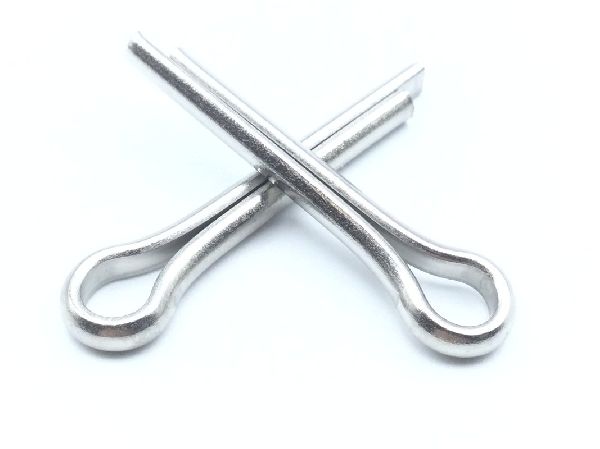

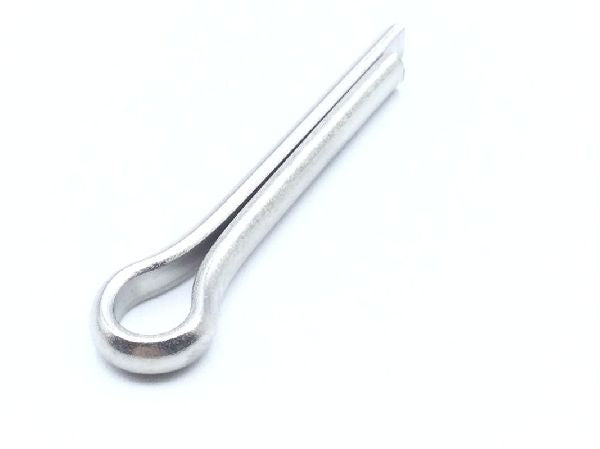

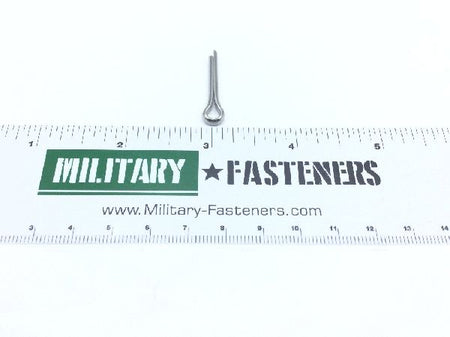

MS24665-368 Cotter Pin

MS24665-368 Cotter Pin (2)

MS24665-368 Cotter Pin (3)

MS24665-368 Cotter Pin (4)

MS24665-368 Cotter Pin (5)

MS24665-368 Cotter Pin (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24665-368 Cotter Pin

Product Series: MS
ECCN: EAR99
Schedule: 7318.24.0000

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Material

Steel comp 302 or steel comp 304

Surface Treatment

Astm a380 assn standard single treatment response

End Application: 3990-01-443-8024 engineering mission module used on the palletized loading system
Hardness Rating: 55.0 rockwell superficial 15-n and 67.0 rockwell superficial 15-n
Material Specification: Astm a493 assn standard all material responses
Point Type: Extended prong square cut
Style Designator: Standard
Underloop Length: Between 0.688 inches and 0.875 inches
Diameter: Between 0.116 inches and 0.120 inches
