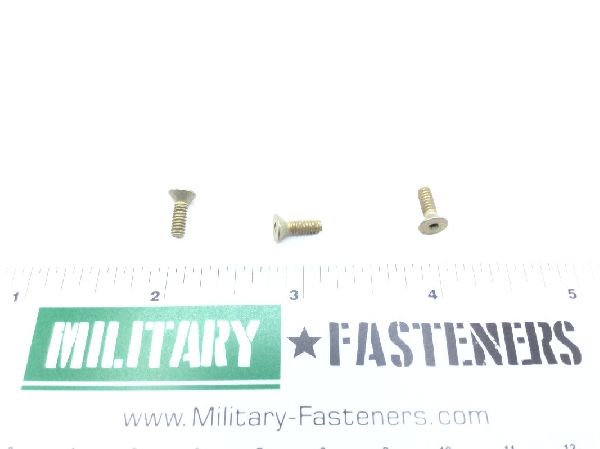

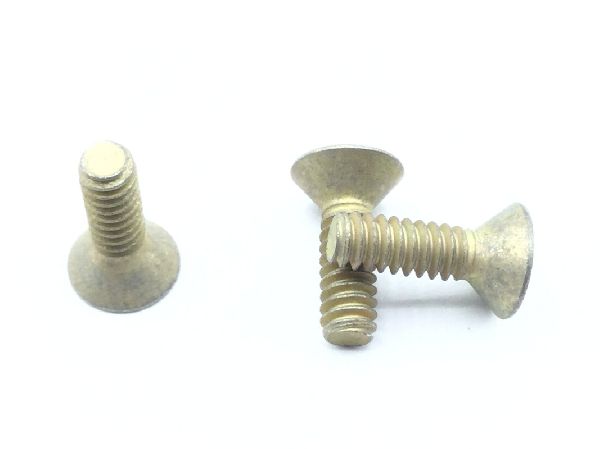

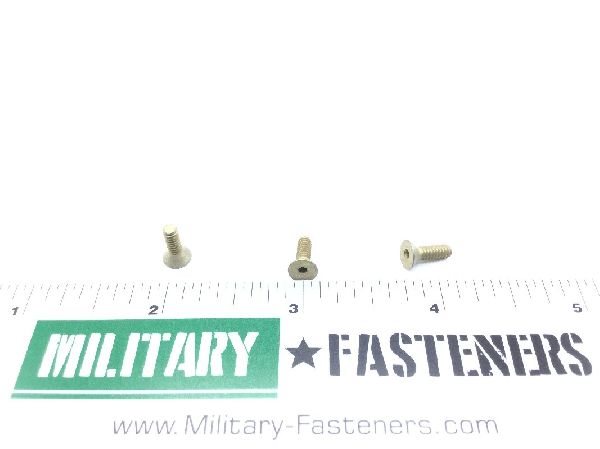

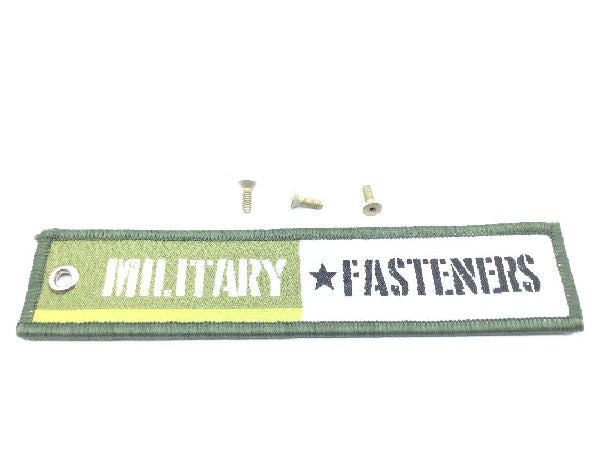

MS24667-2 Socket Head Cap Screw
MS24667-2 Socket Head Cap Screw (2)
MS24667-2 Socket Head Cap Screw (3)
MS24667-2 Socket Head Cap Screw (4)
MS24667-2 Socket Head Cap Screw (5)
MS24667-2 Socket Head Cap Screw
MS24667-2 Socket Head Cap Screw (2)
MS24667-2 Socket Head Cap Screw (3)
MS24667-2 Socket Head Cap Screw (4)
MS24667-2 Socket Head Cap Screw (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24667-2 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.2091
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat countersunk
Material
Steel
Surface Treatment
Type 2 class 3 federal specification single treatment response qq-p-416
Thread Class
3a
Countersink Angle
Between 80.0 degrees and 84.0 degrees
Fastener Length
0.375 inches
Hardness Rating
36.0 rockwell c and 43.0 rockwell c
Internal Drive Style
Hexagon
Material Specification
66 federal standard single material response
Min. Tensile Strength (psi)
160000 pounds per square inch
Minimum Yield Strength
130000 pounds per square inch
Thread Diameter
0.112 inches
Thread Direction
Right-hand
Thread Length
Between 0.325 inches and 0.375 inches
Thread Qty Per Inch (tpi)
40
Thread Series Designator
Unc (coarse thread)
Width Across Flats
0.062 inches
Head Diameter
Between 0.218 inches and 0.255 inches
