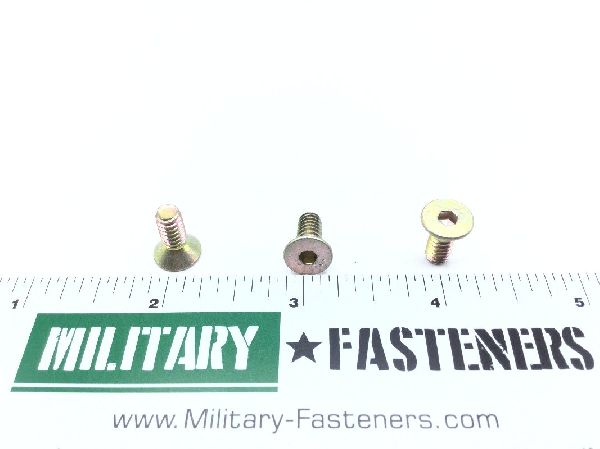

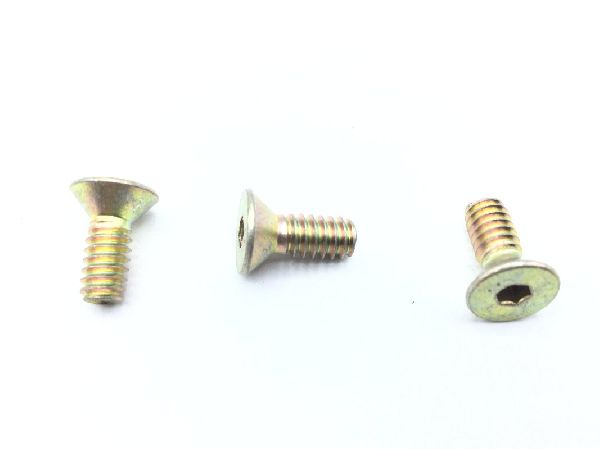

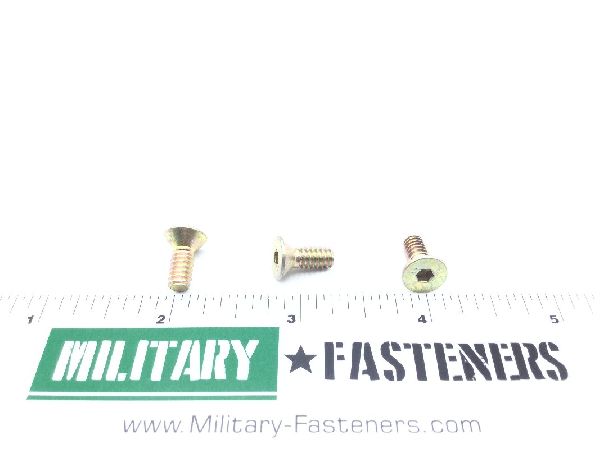

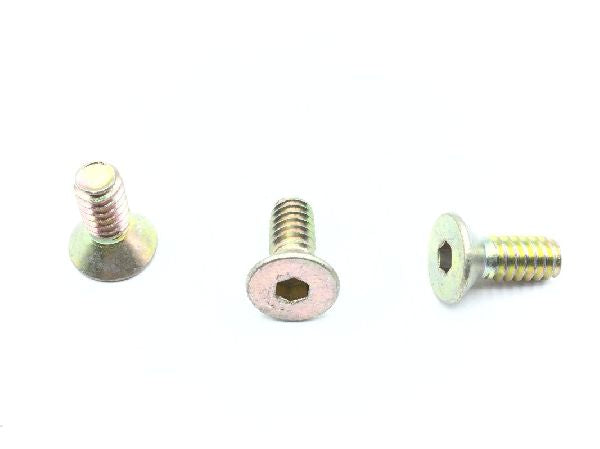

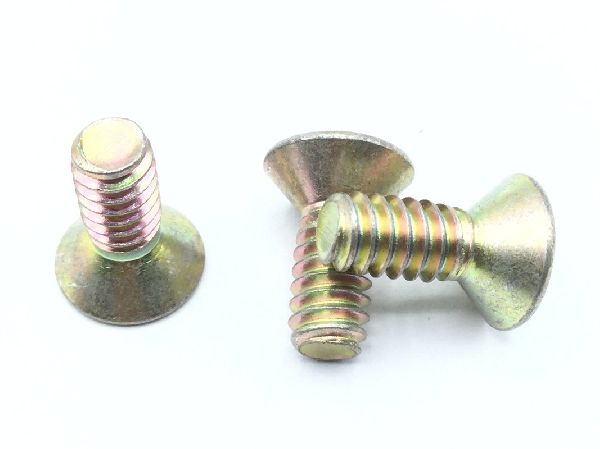

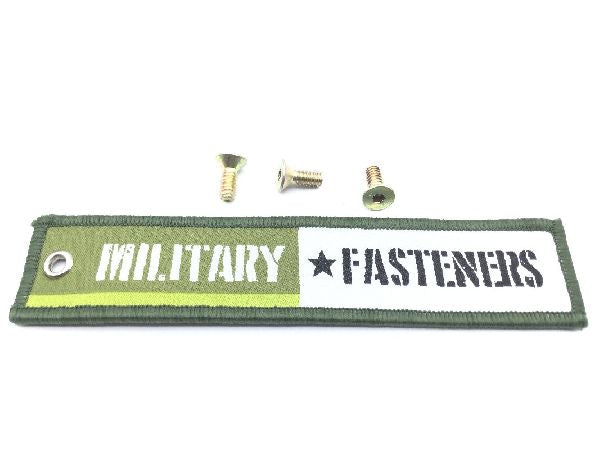

MS24667-20 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $4.08

Units per Pack 10

Price per Pack $40.80

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $40.80

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Type 2 cl 3 federal specification single treatment response qq-p-416

Thread Class

Countersink Angle: Between 80.0 degrees and 84.0 degrees
Fastener Length: 0.500 inches
Hardness Rating: 36.0 rockwell c and 43.0 rockwell c
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.484 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.125 inches
Head Diameter: Between 0.359 inches and 0.411 inches
