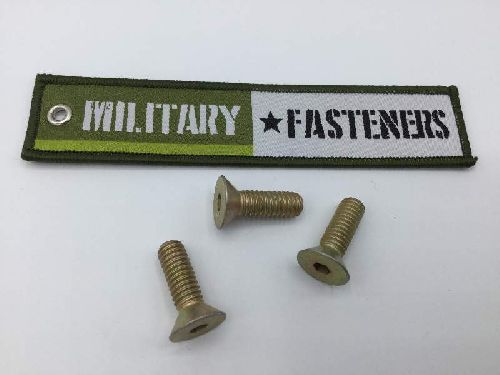

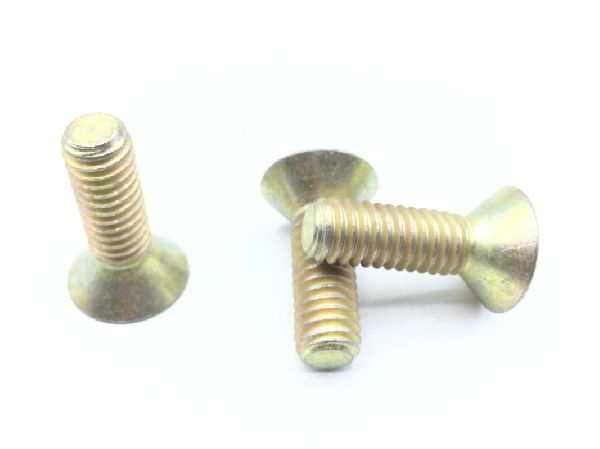

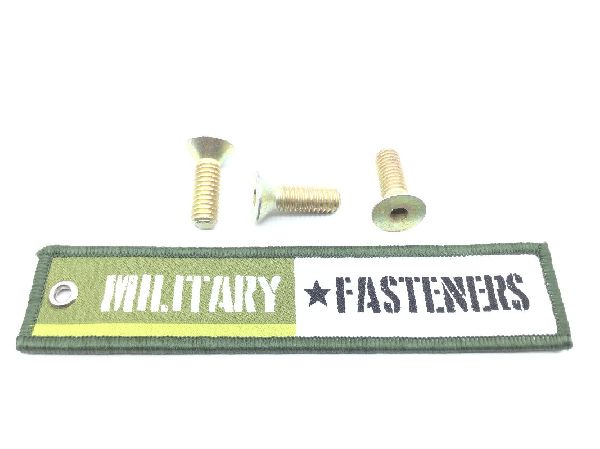

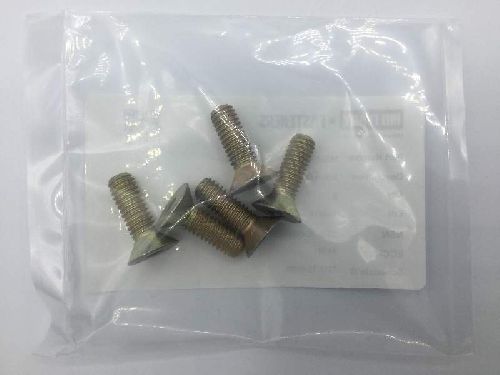

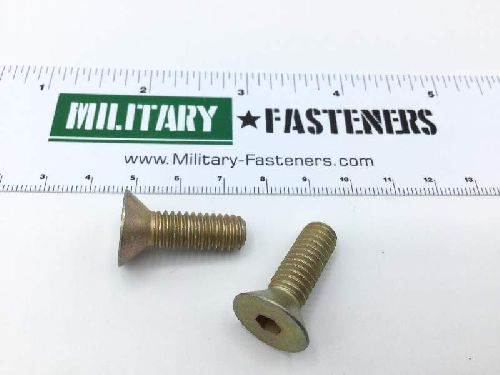

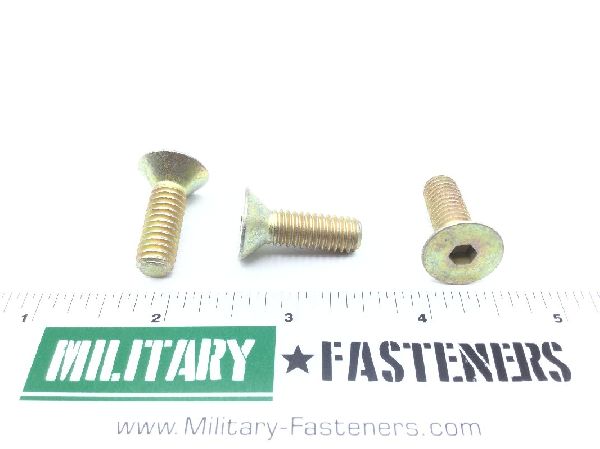

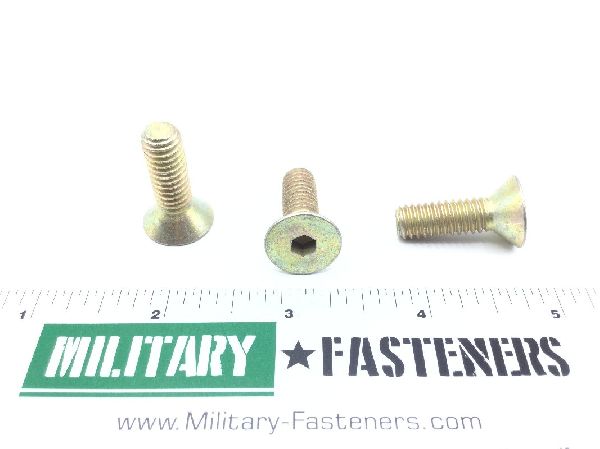

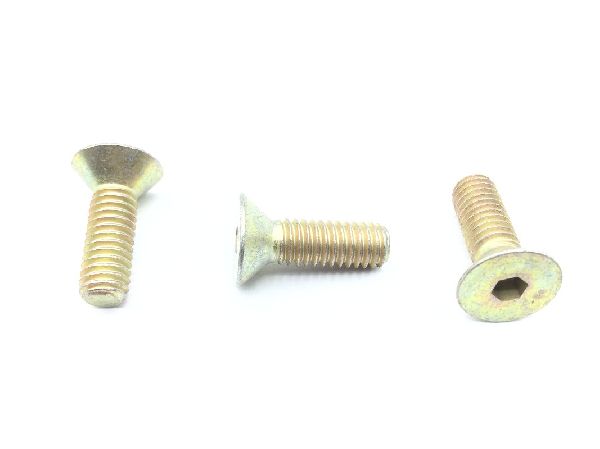

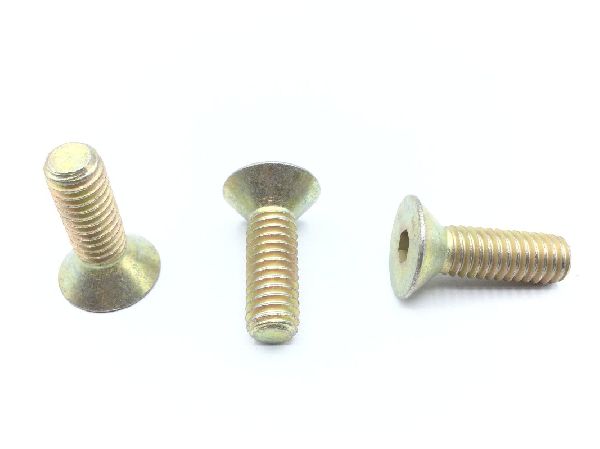

MS24667-41 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $7.88

Units per Pack 5

Price per Pack $39.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $39.40

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Type 2 class 3 federal specification single treatment response qq-p-416

Thread Class

Countersink Angle: Between 80 degrees and 84 degrees
Fastener Length: Between 0.97 inches and 1.0 inches
Hardness Rating: 36 rockwell c and 45 rockwell c
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Nondefinitive Specification/std Data: 4 type
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.661 inches and 0.802 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.188 inches
Head Diameter: Between 0.6 inches and 0.656 inches
