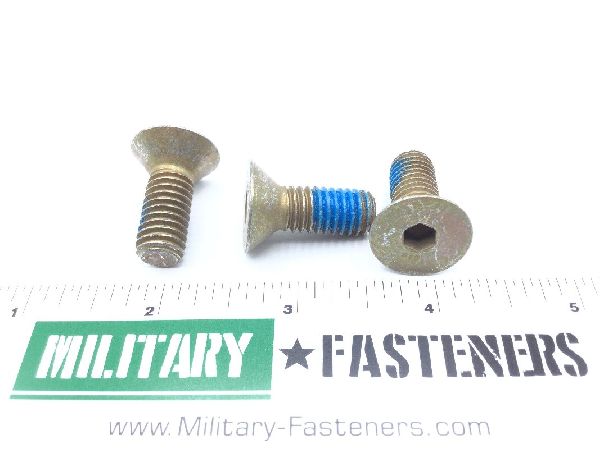

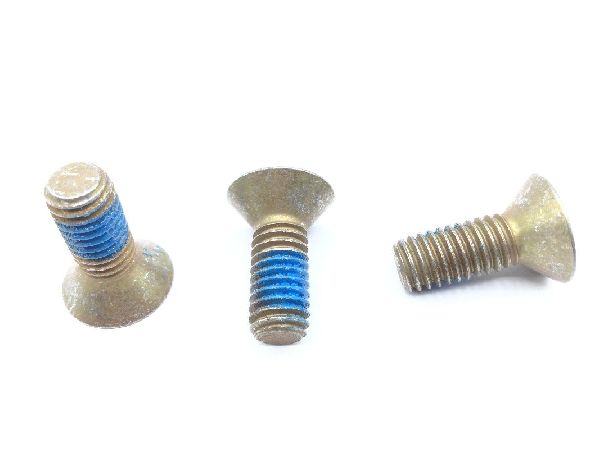

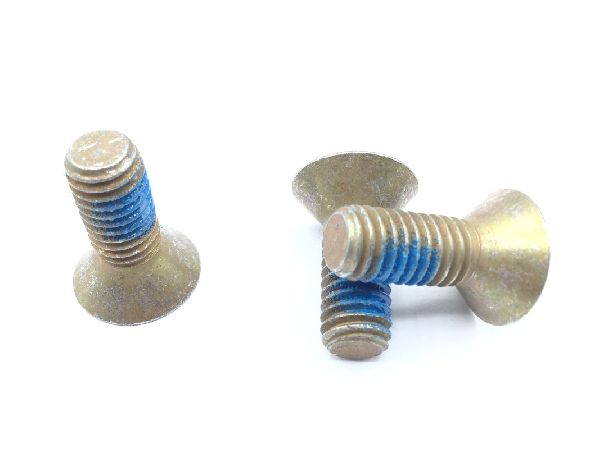

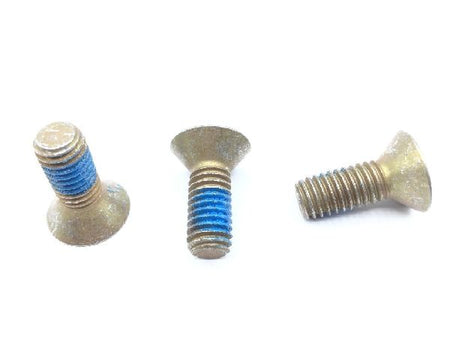

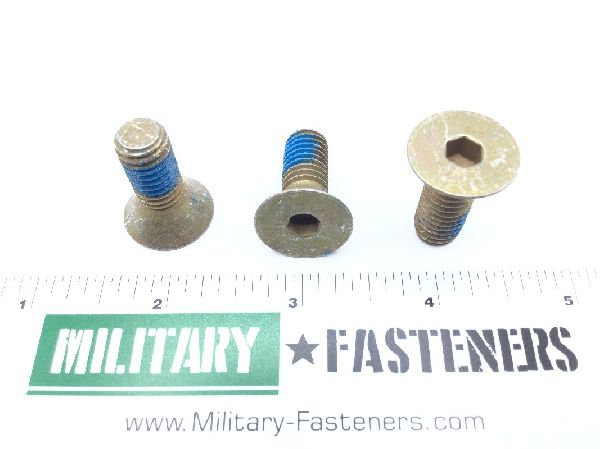

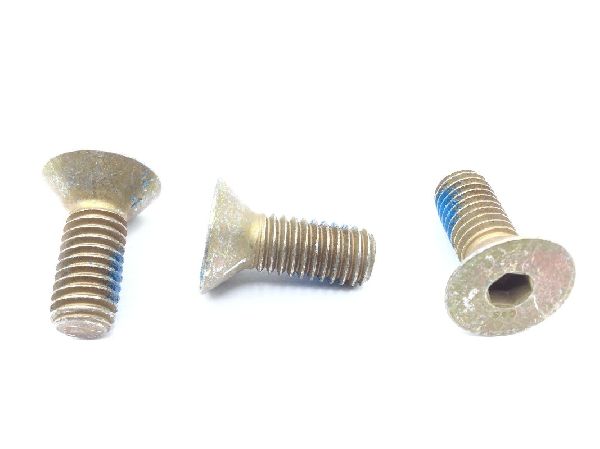

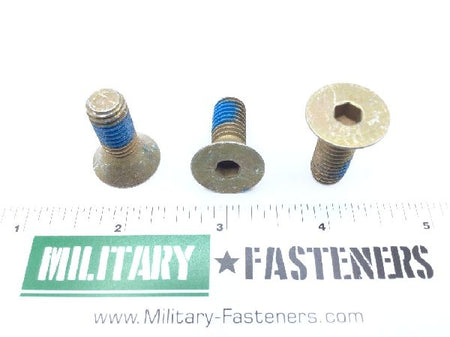

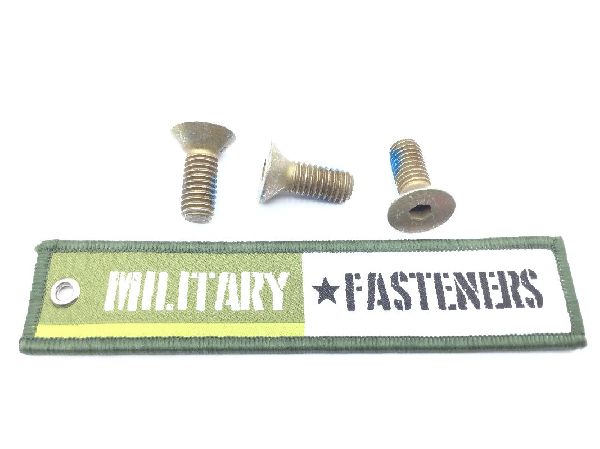

MS24667-52L Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: Between 80.0 degrees and 84.0 degrees
Fastener Length: Between 0.970 inches and 1.000 inches
Hardness Rating: 36.0 rockwell c and 45.0 rockwell c
Internal Drive Style: Hexagon
Locking Feature: Patch threads or strip threads
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Nondefinitive Specification/std Data: 4 type
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: Between 0.611 inches and 0.736 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.219 inches
Head Diameter: Between 0.720 inches and 0.781 inches
