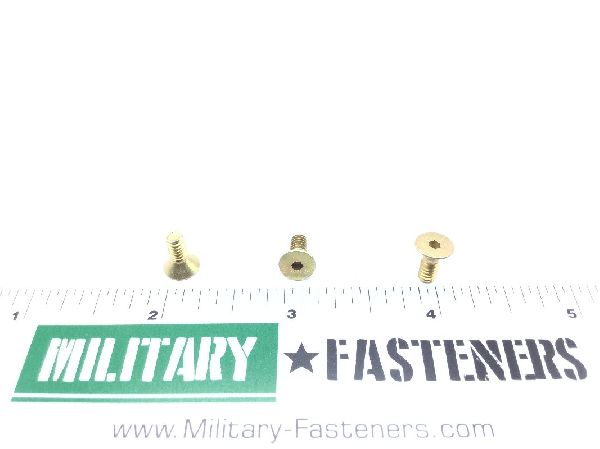

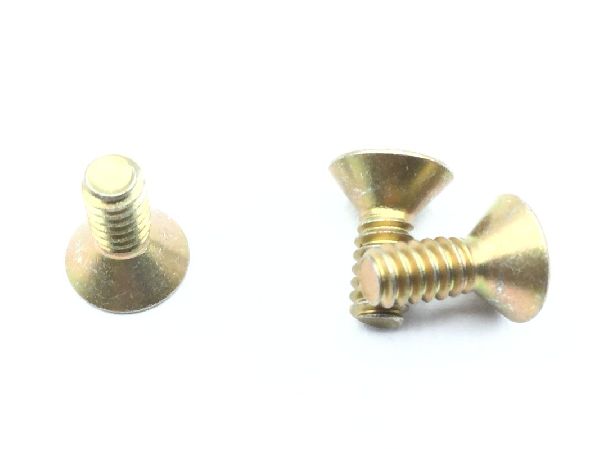

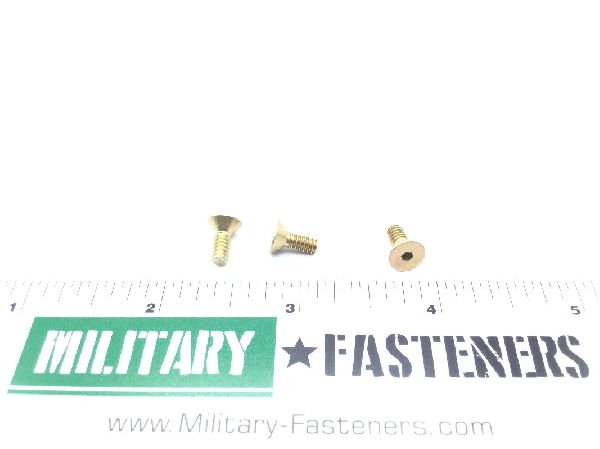

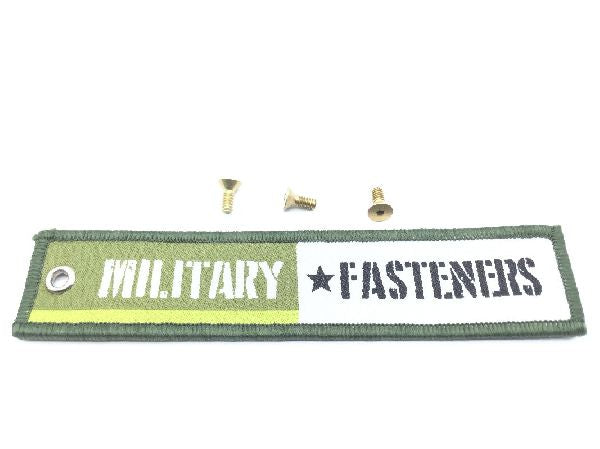

MS24667-8 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: Between 80.0 degrees and 84.0 degrees
Fastener Length: 0.375 inches
Hardness Rating: 36.0 rockwell c and 43.0 rockwell c
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.078 inches and 0.079 inches
Head Diameter: Between 0.263 inches and 0.307 inches
