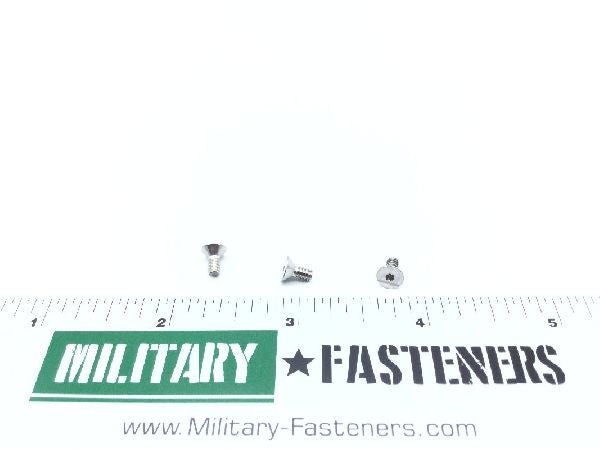

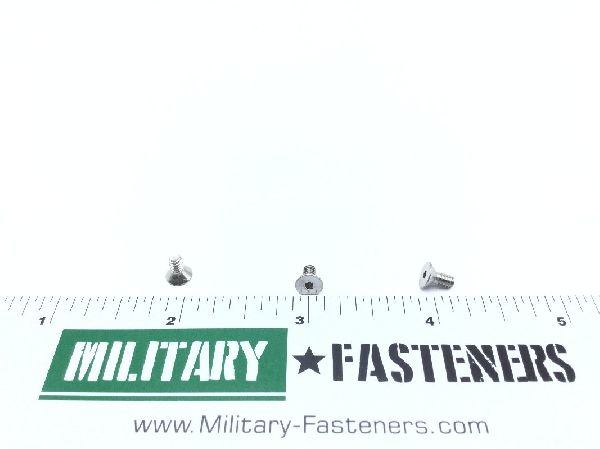

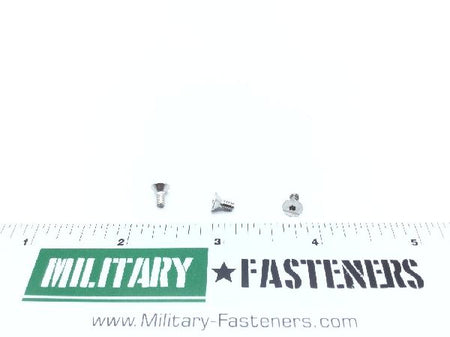

MS24671-1 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $2.35

Units per Pack 25

Price per Pack $58.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $58.75

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 80.0 degrees and 84.0 degrees
Fastener Length: Between 0.234 inches and 0.266 inches
Hardness Rating: 80.0 rockwell b
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 4 type
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.101 inches and 0.183 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.063 inches
Head Diameter: Between 0.218 inches and 0.255 inches
