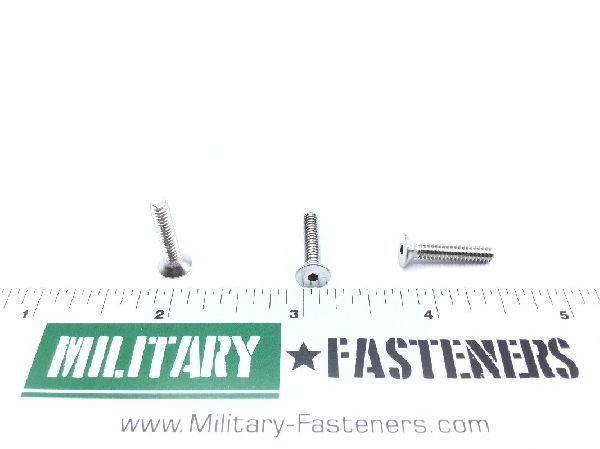

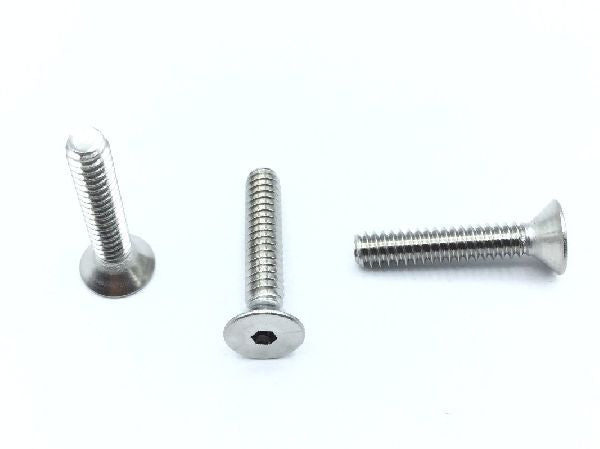

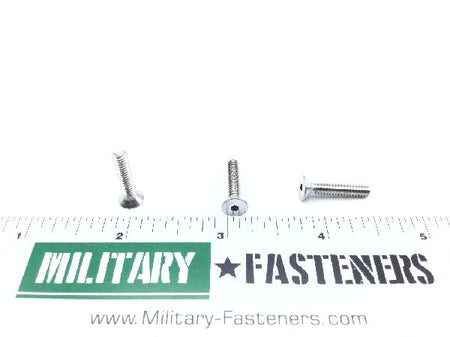

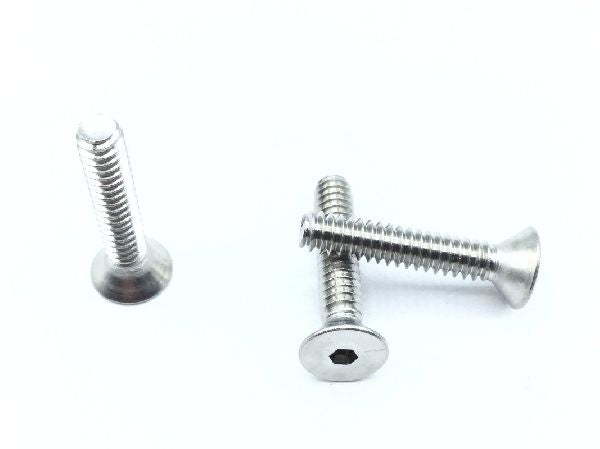

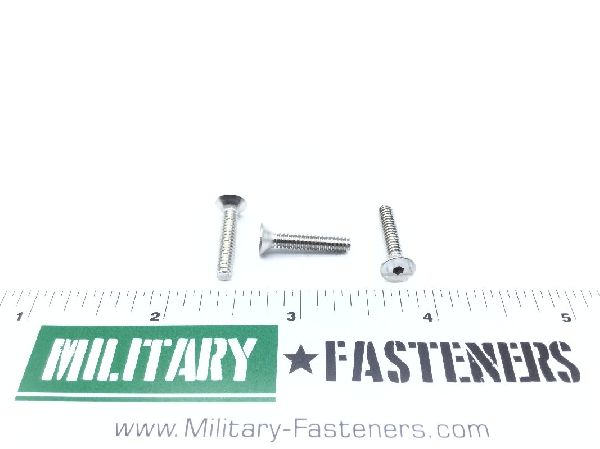

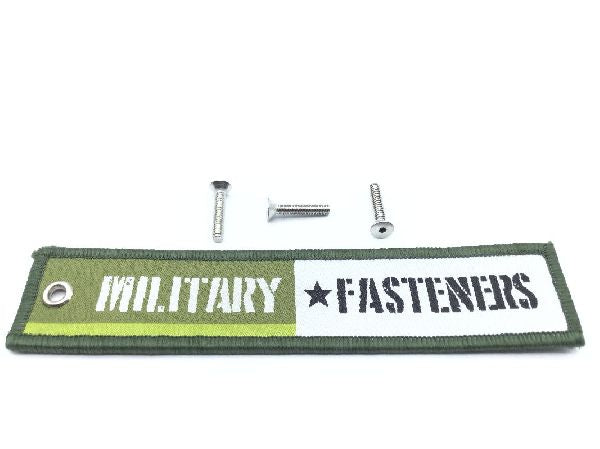

MS24671-11 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.25

Units per Pack 50

Price per Pack $62.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $62.50

Add item to quote

Head Style

Flat countersunk

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 80.0 degrees and 84.0 degrees
Fastener Length: 0.750 inches
Hardness Rating: 36.0 rockwell c and 45.0 rockwell c
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: 0.704 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.078 inches
Head Diameter: Between 0.263 inches and 0.307 inches
