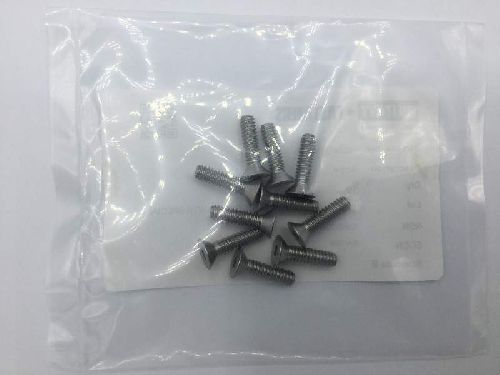

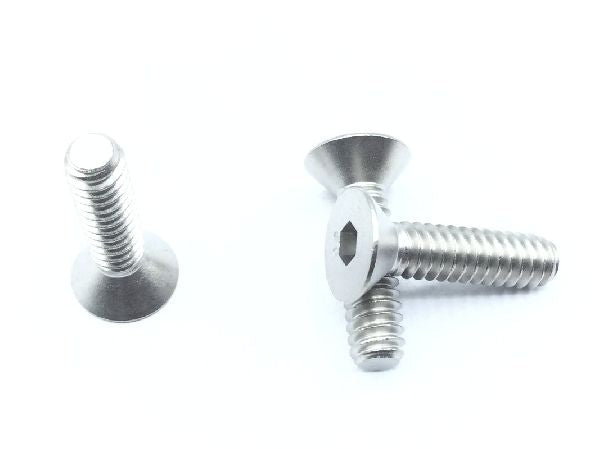

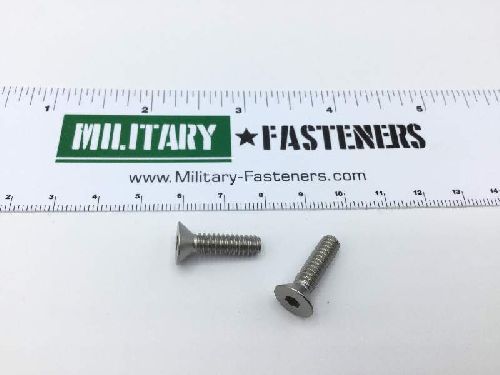

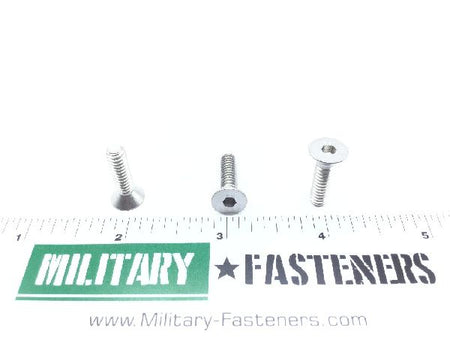

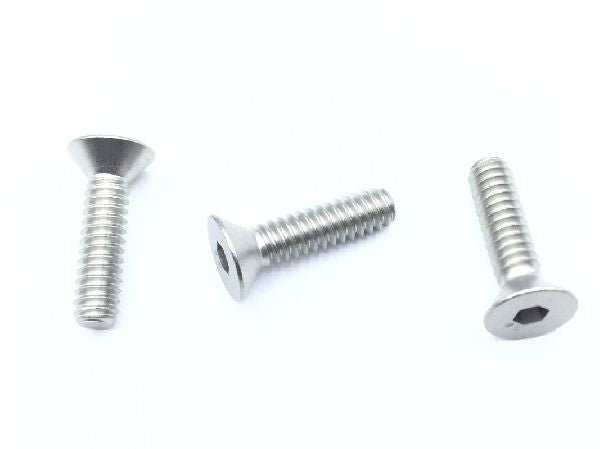

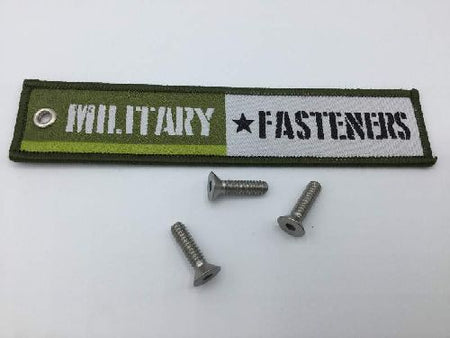

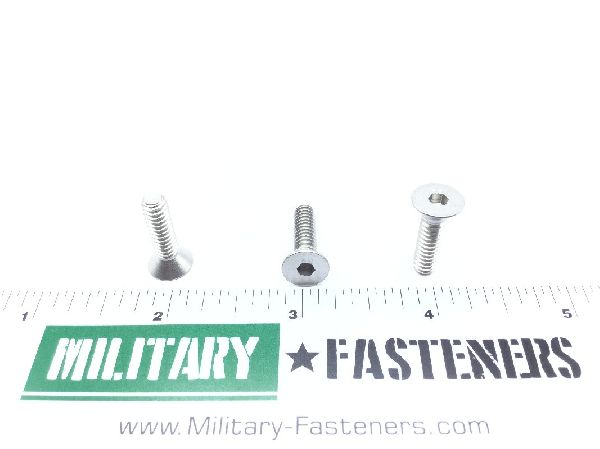

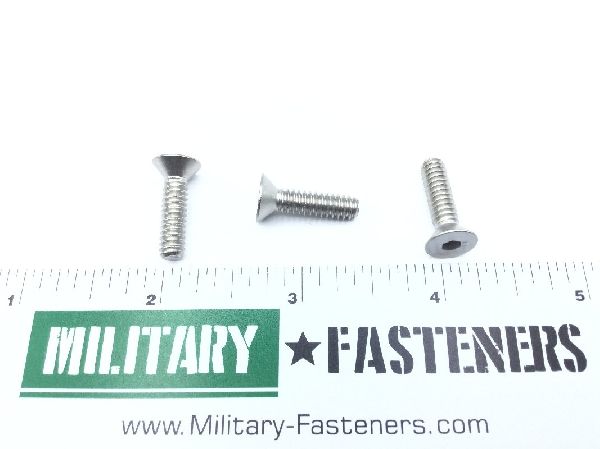

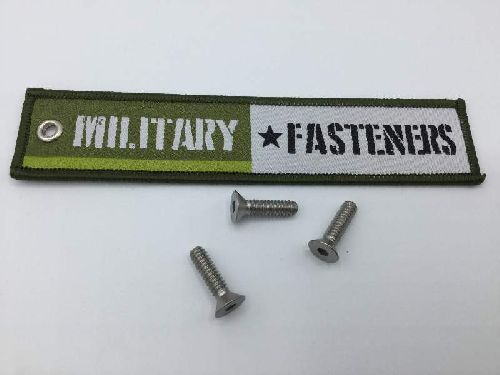

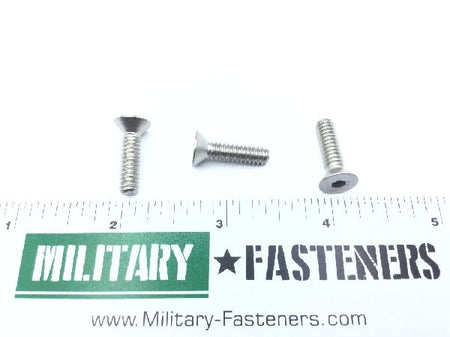

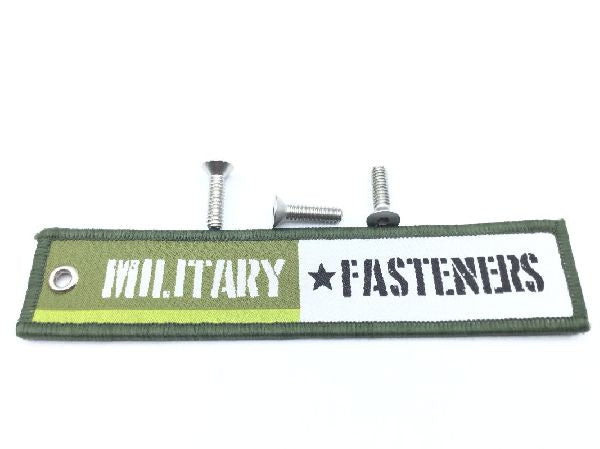

MS24671-22 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $3.46

Units per Pack 10

Price per Pack $34.60

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $34.60

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 80.0 degrees and 84.0 degrees
Fastener Length: Between 0.734 inches and 0.766 inches
Hardness Rating: 80.0 rockwell b
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.540 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.125 inches
Head Diameter: Between 0.359 inches and 0.411 inches
