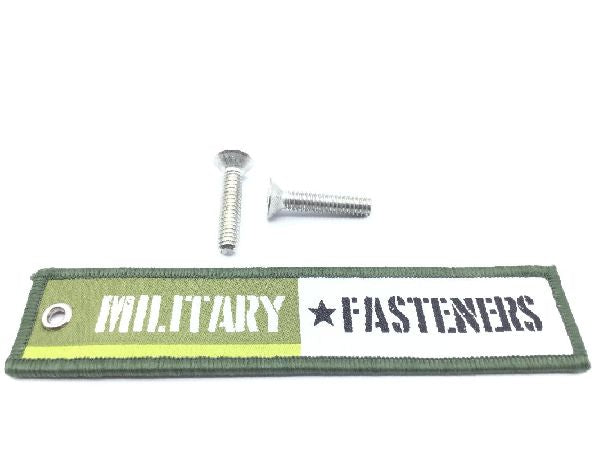

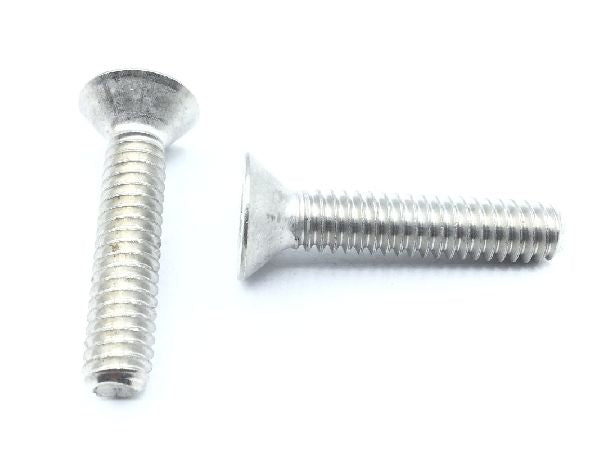

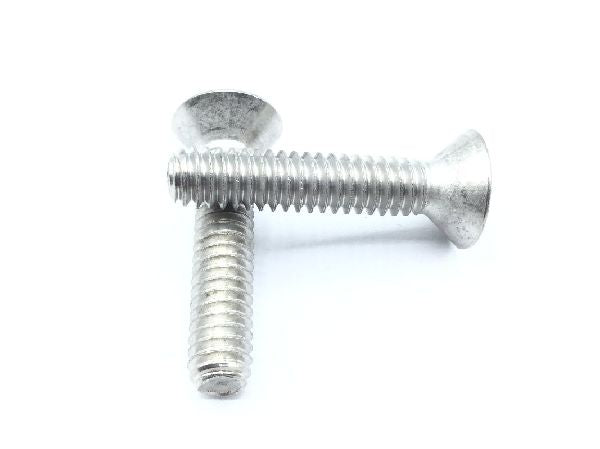

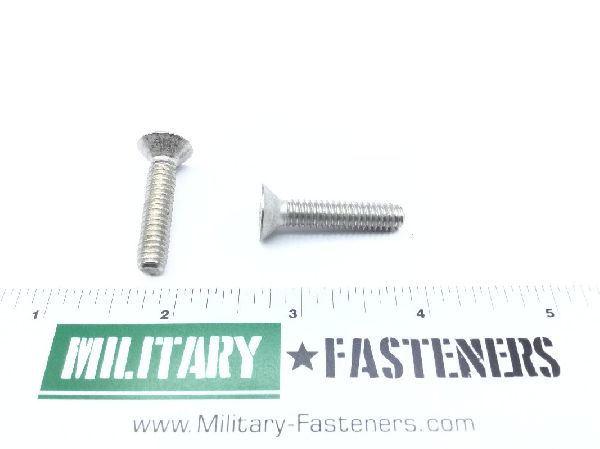

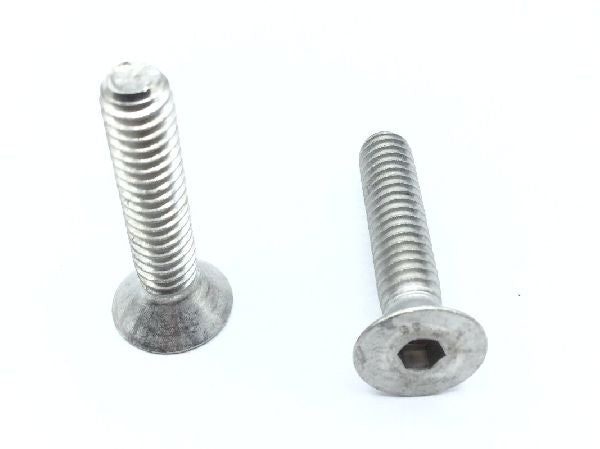

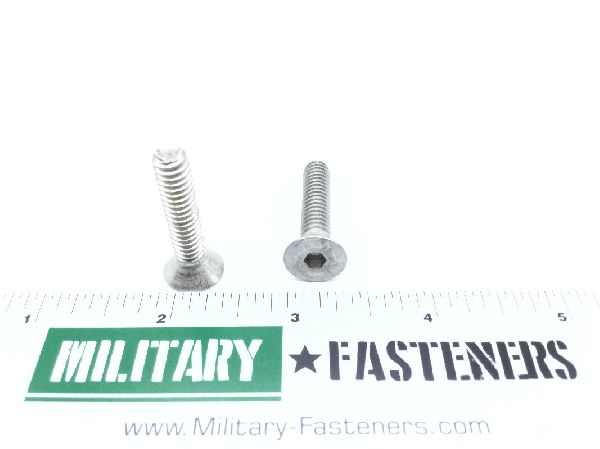

MS24671-32 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $4.72

Units per Pack 10

Price per Pack $47.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $47.20

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: 82.0 degrees
Fastener Length: Between 1.210 inches and 1.250 inches
Hardness Rating: 80.0 rockwell b
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 4 type
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 1.110 inches and 1.250 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.156 inches
Head Diameter: Between 0.480 inches and 0.531 inches
