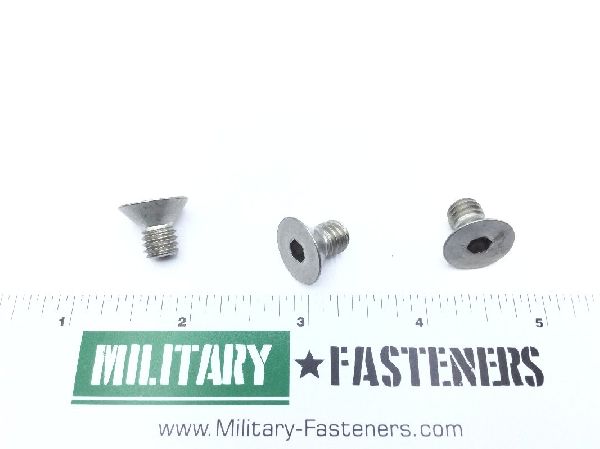

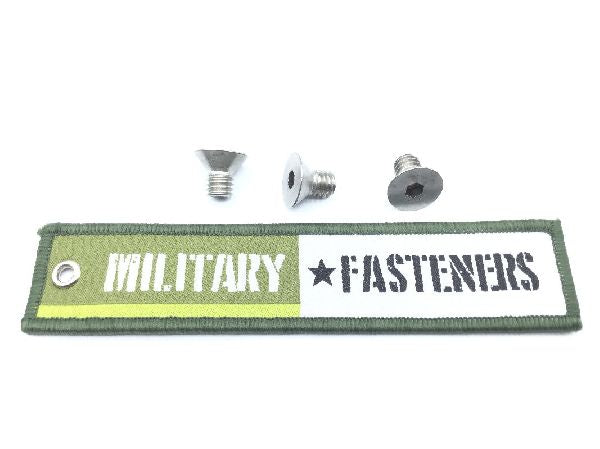

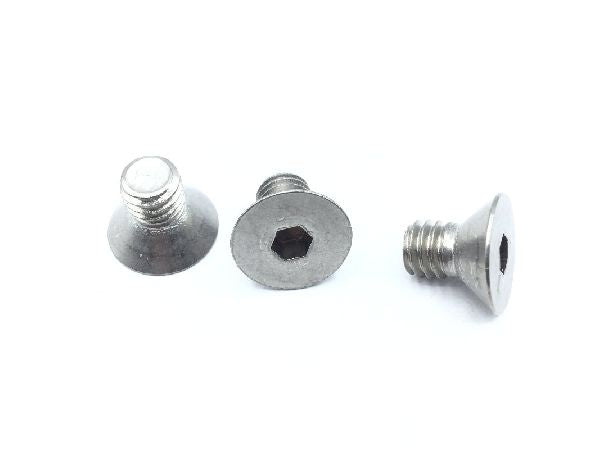

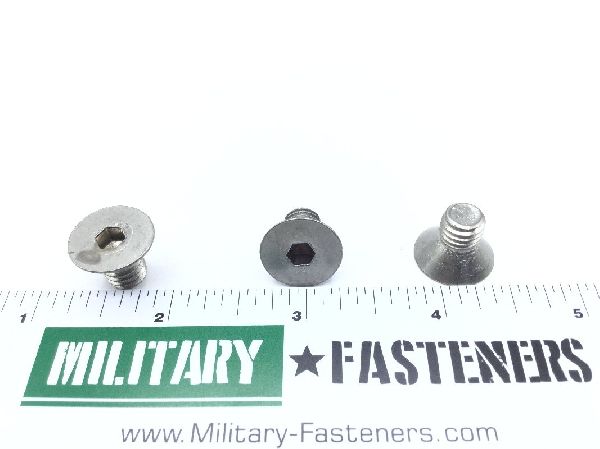

MS24671-38 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316 or steel comp 384

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 80.0 degrees and 84.0 degrees
Fastener Length: Between 0.470 inches and 0.500 inches
Hardness Rating: 80.0 rockwell b
Internal Drive Style: Hexagon
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Minimum Yield Strength: 30000 pounds per square inch
Nondefinitive Specification/std Data: 4 type
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.161 inches and 0.302 inches
Thread Qty Per Inch (tpi): 18
Thread Series Designator: Unc (coarse thread)
Width Across Flats: 0.188 inches
Head Diameter: Between 0.600 inches and 0.656 inches
