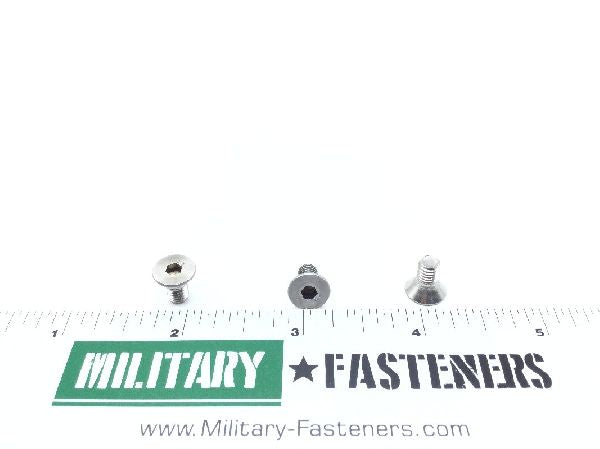

MS24672-1 Socket Head Cap Screw

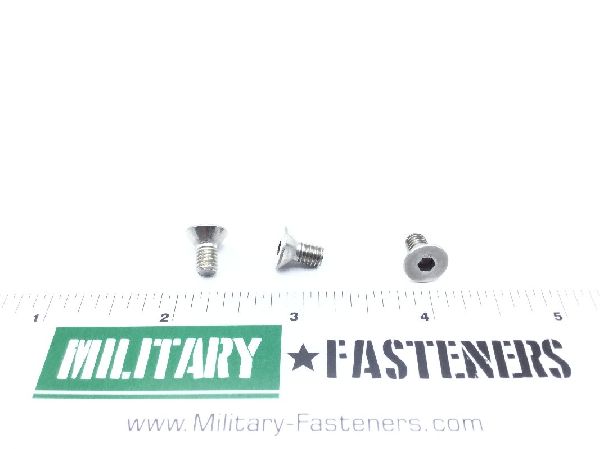

MS24672-1 Socket Head Cap Screw (2)

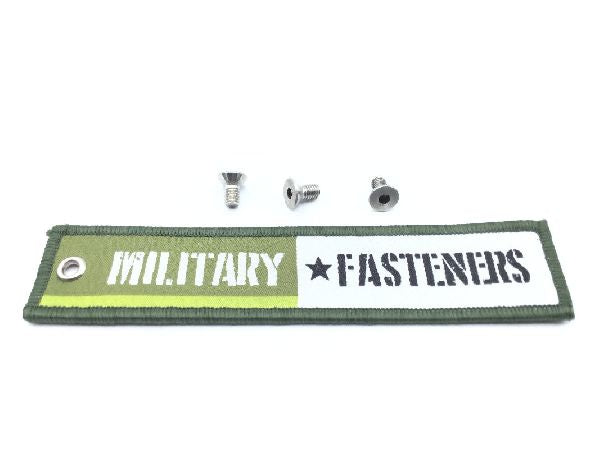

MS24672-1 Socket Head Cap Screw (3)
MS24672-1 Socket Head Cap Screw (4)

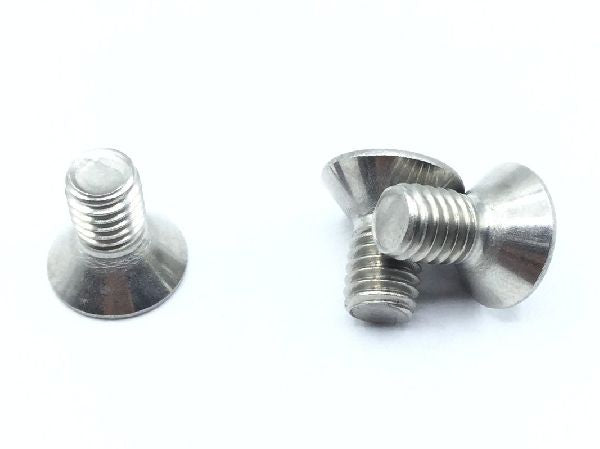

MS24672-1 Socket Head Cap Screw (5)

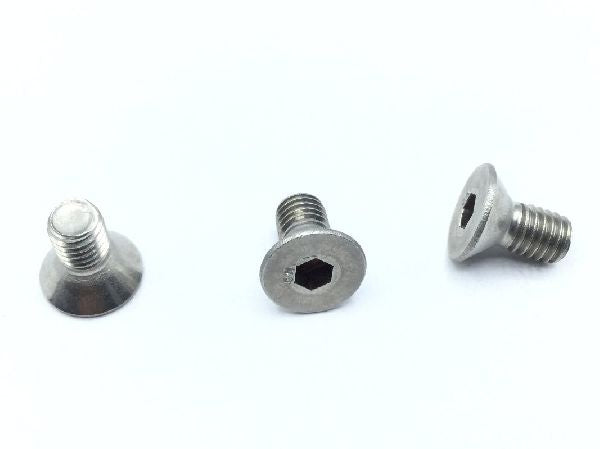

MS24672-1 Socket Head Cap Screw (6)
MS24672-1 Socket Head Cap Screw
MS24672-1 Socket Head Cap Screw (2)
MS24672-1 Socket Head Cap Screw (3)
MS24672-1 Socket Head Cap Screw (4)
MS24672-1 Socket Head Cap Screw (5)
MS24672-1 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24672-1 Socket Head Cap Screw

Product Series
MS
ECCN
9A991
Schedule
7318.15.2091
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat countersunk
Material
Steel comp 303 or steel comp 304
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3a
Countersink Angle
Between 80.0 degrees and 84.0 degrees
Fastener Length
Between 0.359 inches and 0.391 inches
Hardness Rating
80.0 rockwell b
Internal Drive Style
Hexagon
Material Specification
66 federal standard all material responses
Min. Tensile Strength (psi)
80000 pounds per square inch
Nondefinitive Specification/std Data
4 type
Thread Diameter
0.190 inches
Thread Direction
Right-hand
Thread Length
0.281 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unf (fine thread)
Width Across Flats
Between 0.125 inches and 0.127 inches
Head Diameter
Between 0.359 inches and 0.411 inches
