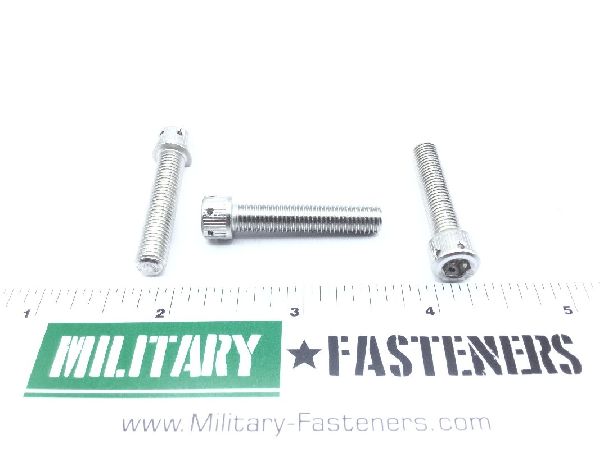

MS24673-13 Socket Head Cap Screw
MS24673-13 Socket Head Cap Screw (2)

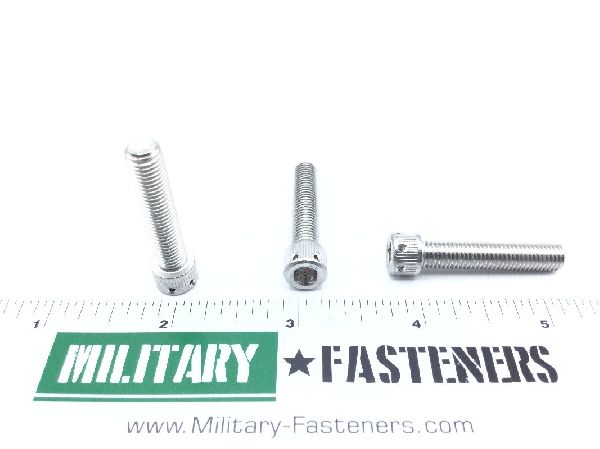

MS24673-13 Socket Head Cap Screw (3)

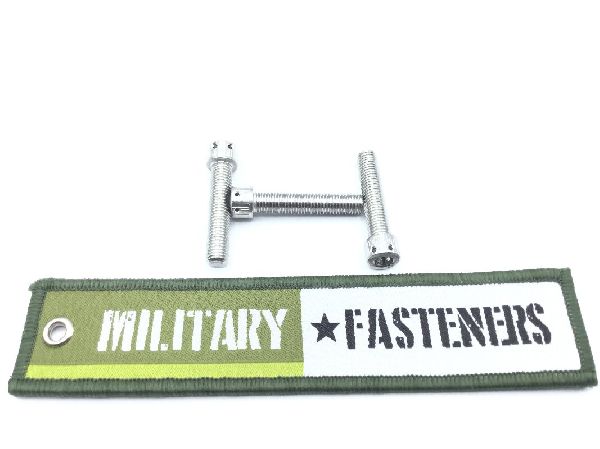

MS24673-13 Socket Head Cap Screw (4)

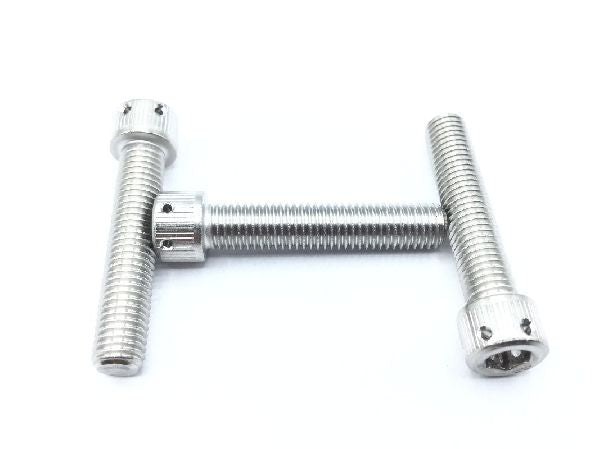

MS24673-13 Socket Head Cap Screw (5)

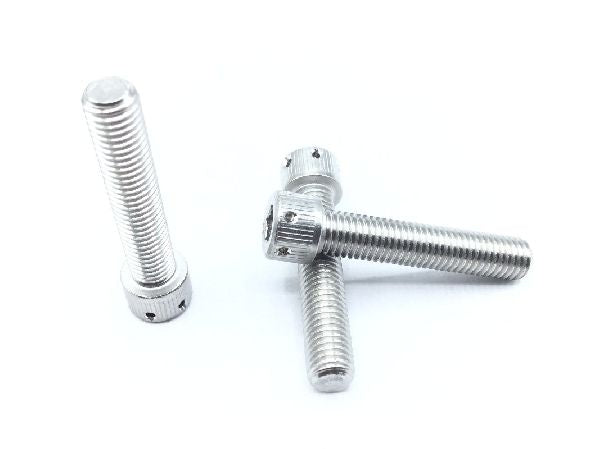

MS24673-13 Socket Head Cap Screw (6)

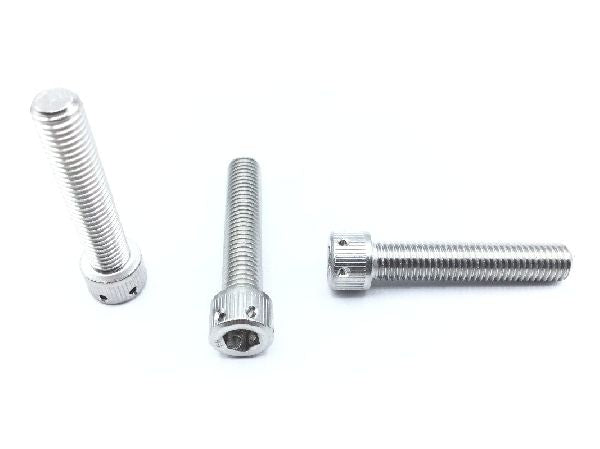

MS24673-13 Socket Head Cap Screw
MS24673-13 Socket Head Cap Screw (2)
MS24673-13 Socket Head Cap Screw (3)
MS24673-13 Socket Head Cap Screw (4)
MS24673-13 Socket Head Cap Screw (5)
MS24673-13 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24673-13 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat chamfer
Material
Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316
Surface Treatment
Qq-p-35 federal specification single treatment response
Thread Class
3a
Fastener Length
1.250 inches
Hardness Rating
80.0 rockwell b
Head Height
Between 0.244 inches and 0.250 inches
Hole Configuration Style
Round internal hexagon
Hole Quantity
6
Hole Type
Drilled
Internal Drive Style
Hexagon
Material Specification
66 federal standard all material responses
Min. Tensile Strength (psi)
80000 pounds per square inch
Minimum Yield Strength
30000 pounds per square inch
Thread Diameter
0.250 inches
Thread Direction
Right-hand
Thread Length
1.000 inches
Thread Qty Per Inch (tpi)
28
Thread Series Designator
Unf (fine thread)
Width Across Flats
Between 0.188 inches and 0.190 inches
Head Diameter
Between 0.365 inches and 0.375 inches
Hole Diameter
Between 0.044 inches and 0.050 inches
