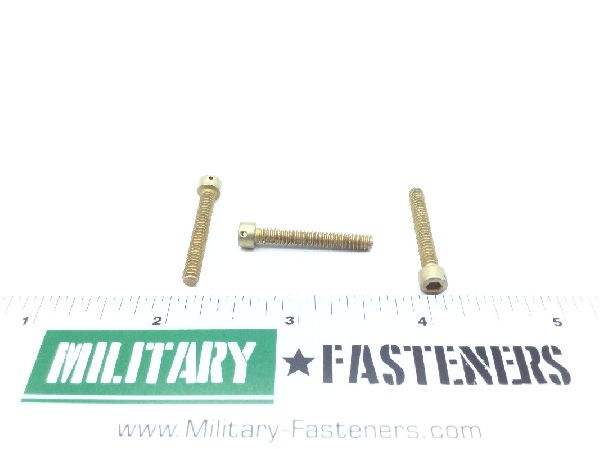

MS24677-12 Socket Head Cap Screw

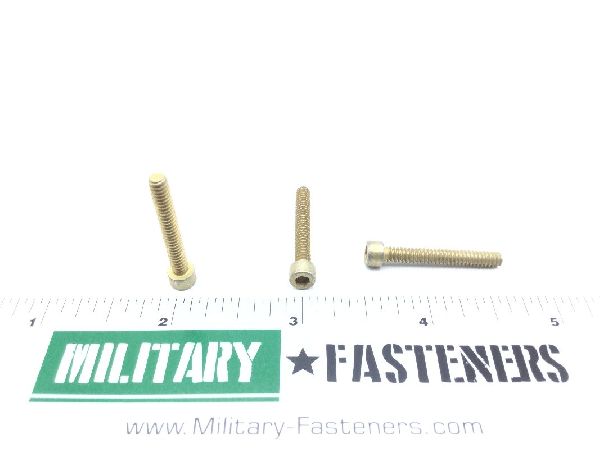

MS24677-12 Socket Head Cap Screw (2)

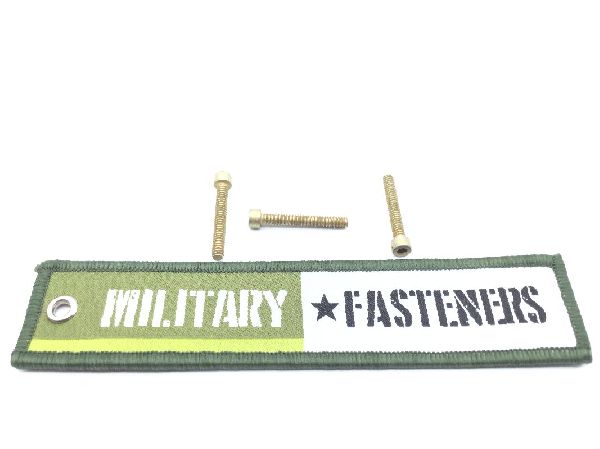

MS24677-12 Socket Head Cap Screw (3)

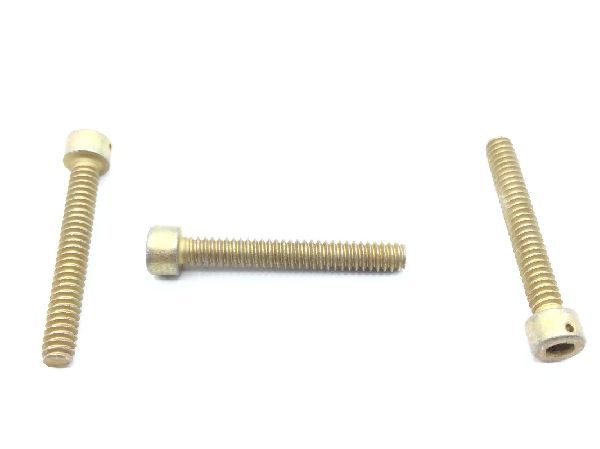

MS24677-12 Socket Head Cap Screw (4)

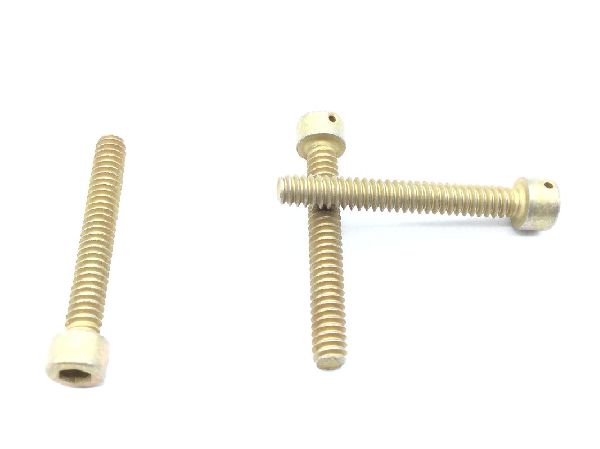

MS24677-12 Socket Head Cap Screw (5)
MS24677-12 Socket Head Cap Screw (6)
MS24677-12 Socket Head Cap Screw
MS24677-12 Socket Head Cap Screw (2)
MS24677-12 Socket Head Cap Screw (3)
MS24677-12 Socket Head Cap Screw (4)
MS24677-12 Socket Head Cap Screw (5)
MS24677-12 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24677-12 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Price per Unit $4.85
Units per Pack 10
Price per Pack $48.50
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $48.50
Add item to quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Class
3a
Fastener Length
1.000 inches
Hardness Rating
36.0 rockwell c and 43.0 rockwell c
Head Height
Between 0.134 inches and 0.138 inches
Hole Configuration Style
Round
Hole Quantity
2
Hole Type
Drilled
Internal Drive Style
Hexagon
Material Specification
66 federal standard single material response
Min. Tensile Strength (psi)
160000 pounds per square inch
Minimum Yield Strength
130000 pounds per square inch
Thread Diameter
0.138 inches
Thread Direction
Right-hand
Thread Length
0.750 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Width Across Flats
Between 0.109 inches and 0.111 inches
Head Diameter
Between 0.218 inches and 0.226 inches
Hole Diameter
Between 0.033 inches and 0.039 inches
