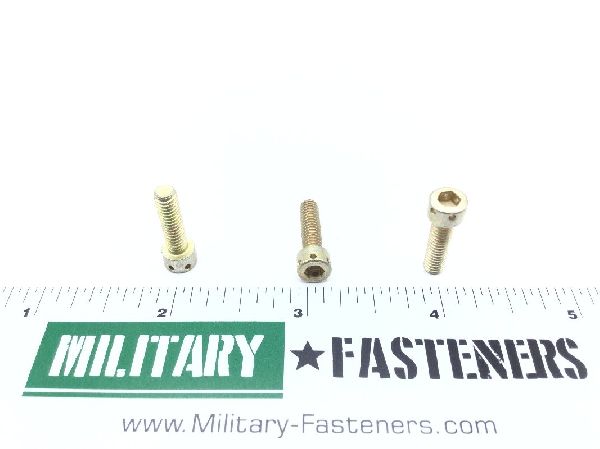

MS24677-16 Socket Head Cap Screw

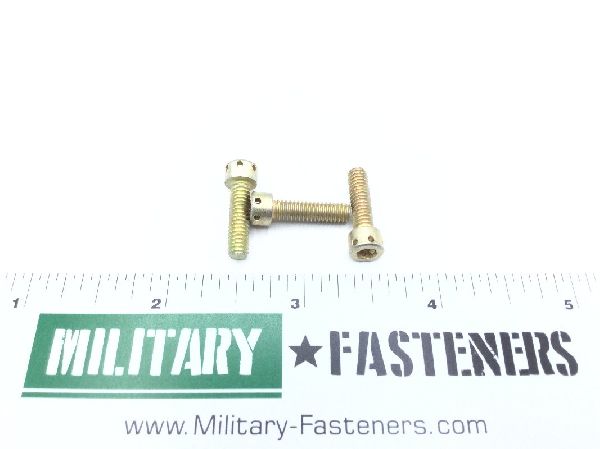

MS24677-16 Socket Head Cap Screw (2)

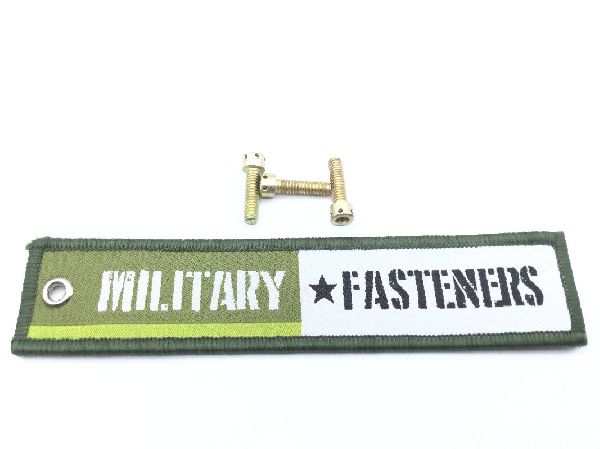

MS24677-16 Socket Head Cap Screw (3)

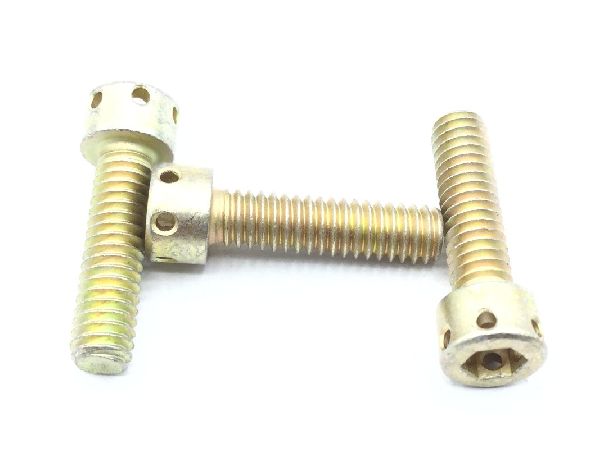

MS24677-16 Socket Head Cap Screw (4)

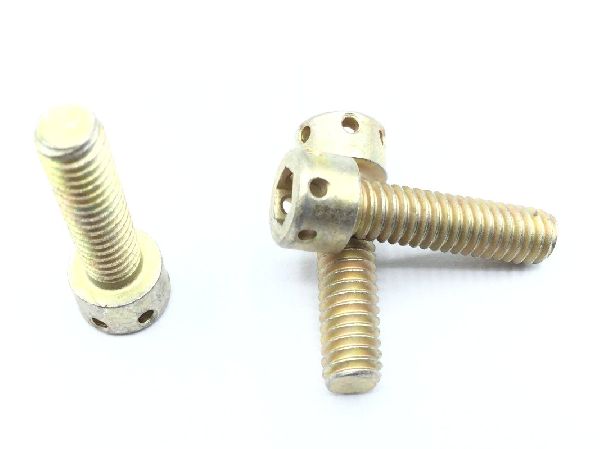

MS24677-16 Socket Head Cap Screw (5)

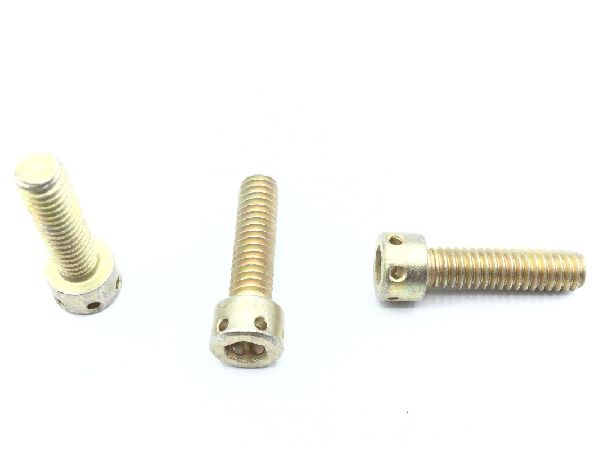

MS24677-16 Socket Head Cap Screw (6)
MS24677-16 Socket Head Cap Screw
MS24677-16 Socket Head Cap Screw (2)
MS24677-16 Socket Head Cap Screw (3)
MS24677-16 Socket Head Cap Screw (4)
MS24677-16 Socket Head Cap Screw (5)
MS24677-16 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24677-16 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Class 3 federal specification single treatment response type 2 qq-p-416
Thread Class
3a
Fastener Length
Between 0.595 inches and 0.625 inches
Hardness Rating
36.0 rockwell c and 43.0 rockwell c
Head Height
Between 0.159 inches and 0.164 inches
Hole Configuration Style
Round longitudinal hole
Hole Quantity
6
Hole Type
Drilled
Internal Drive Style
Hexagon
Material Specification
66 federal standard single material response
Min. Tensile Strength (psi)
180000 pounds per square inch
Minimum Yield Strength
130000 pounds per square inch
Thread Diameter
0.164 inches
Thread Direction
Right-hand
Thread Length
Between 0.533 inches and 0.625 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Width Across Flats
Between 0.140 inches and 0.143 inches
Head Diameter
Between 0.262 inches and 0.270 inches
Hole Diameter
0.044 inches
