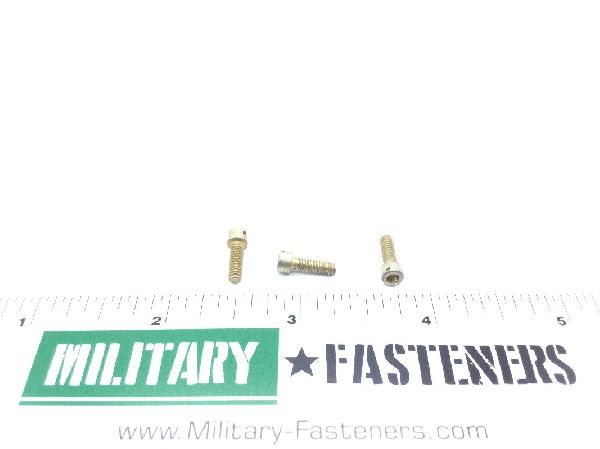

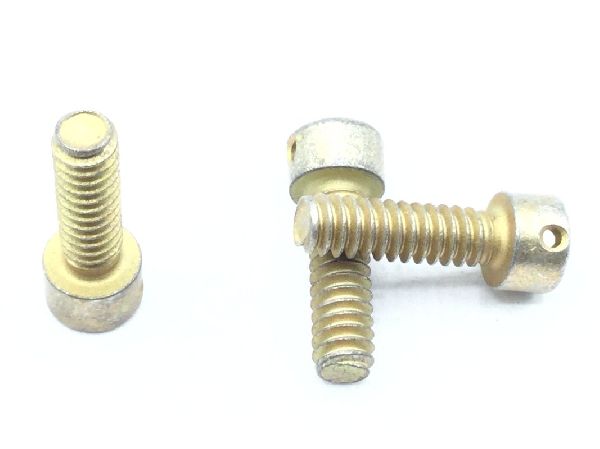

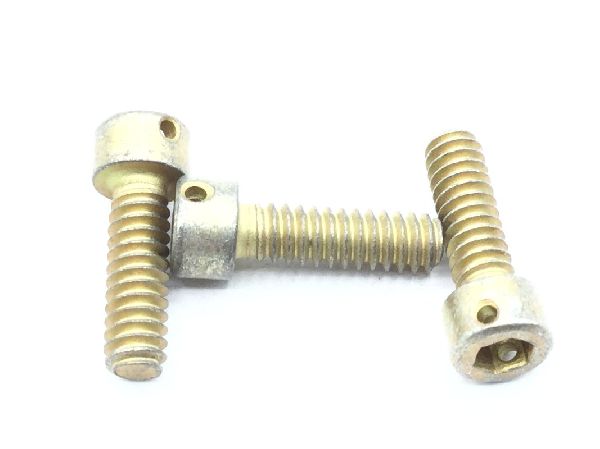

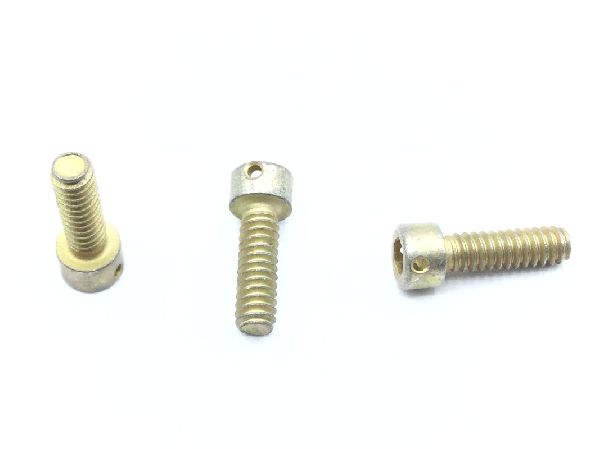

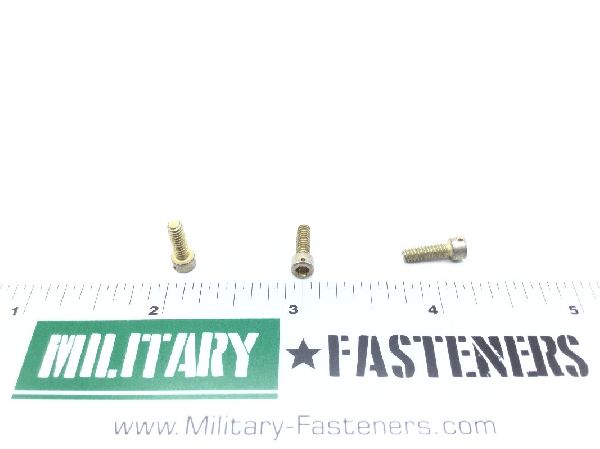

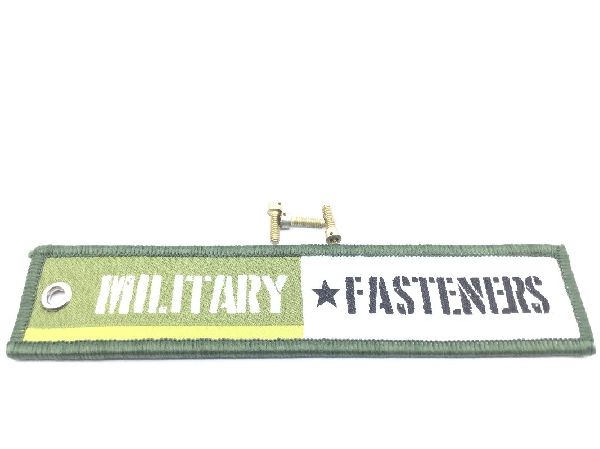

MS24677-2 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Criticality Code Justification: Agav
Fastener Length: 0.375 inches
Hardness Rating: 36.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.108 inches and 0.112 inches
Hole Configuration Style: Round
Hole Quantity: 2
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: 0.341 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.094 inches and 0.095 inches
Head Diameter: Between 0.176 inches and 0.183 inches
Hole Diameter: 0.033 inches
