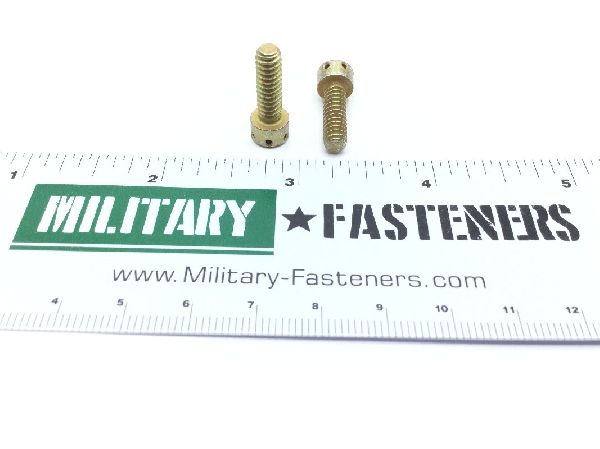

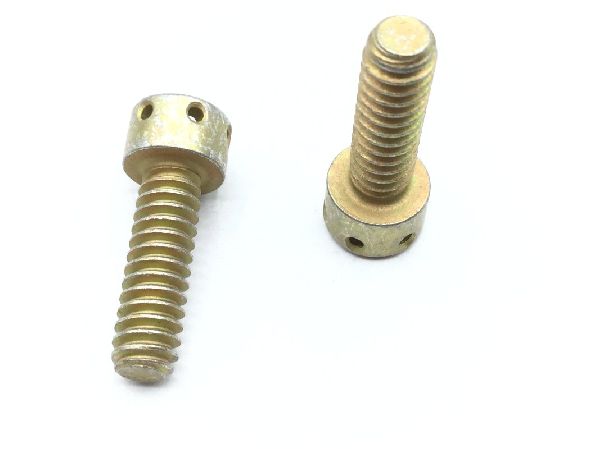

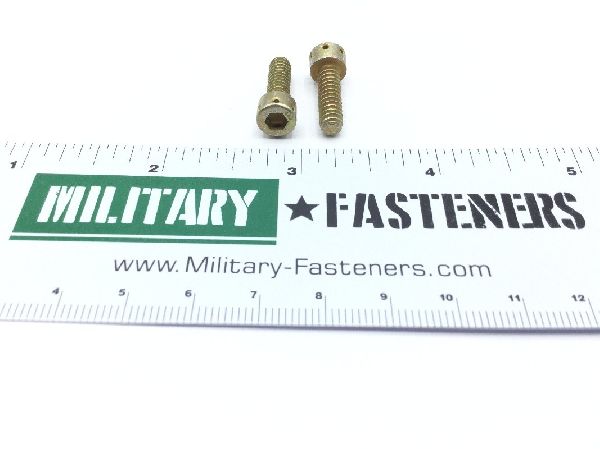

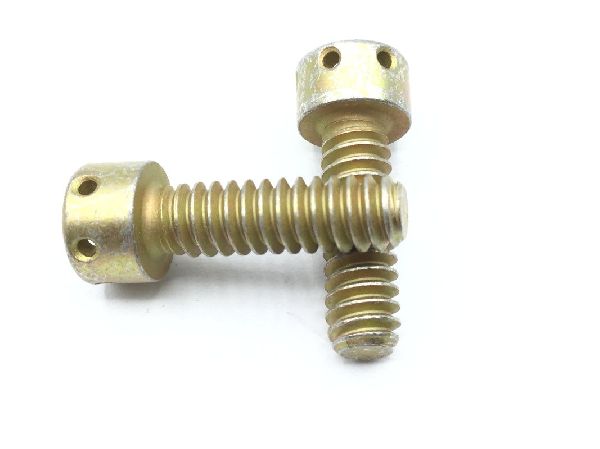

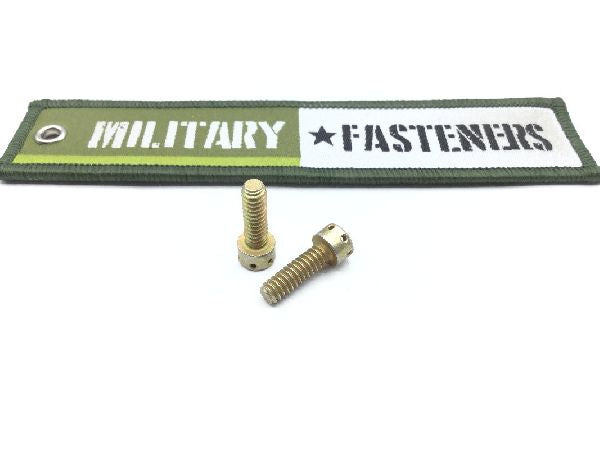

MS24677-24 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $3.46

Units per Pack 20

Price per Pack $69.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $69.20

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Cl 3 federal specification all treatment responses type 2 qq-p-416

Thread Class

Thread Quantity Per Inch (tpi)

Fastener Length: Between 0.595 inches and 0.625 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.185 inches and 0.190 inches
Hole Configuration Style: Round longitudinal hole
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 180000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.512 inches and 0.625 inches
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.156 inches and 0.159 inches
Head Diameter: Between 0.303 inches and 0.312 inches
Hole Diameter: 0.044 inches
