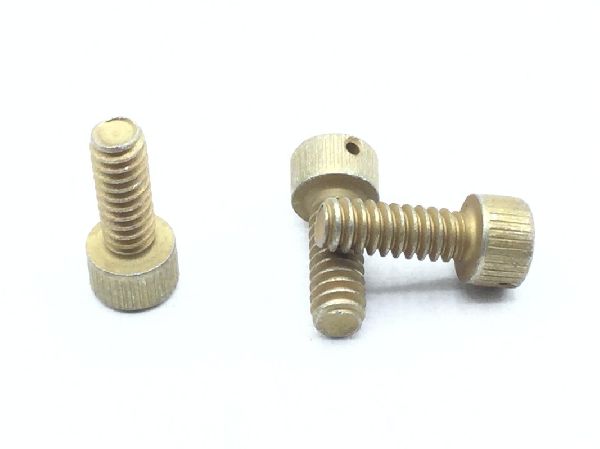

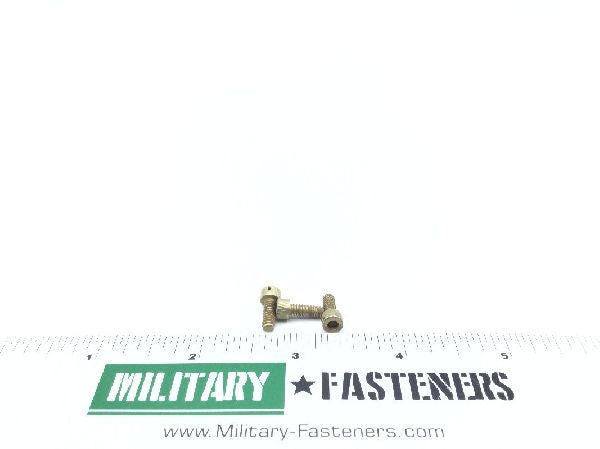

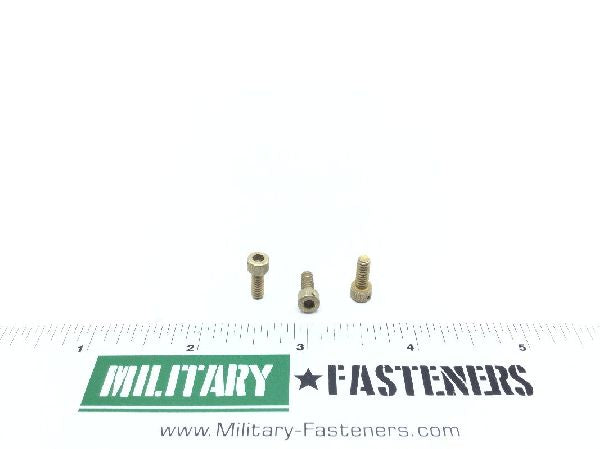

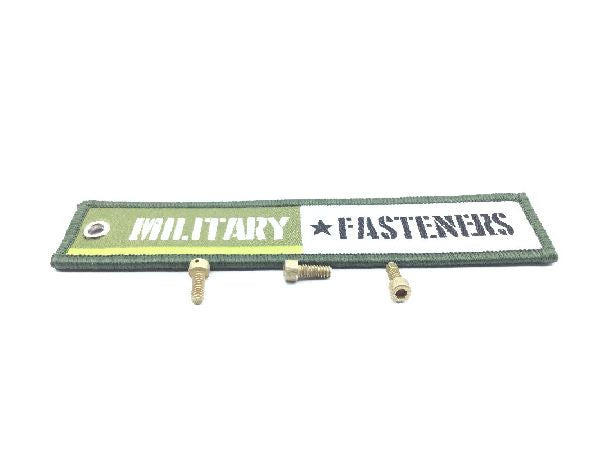

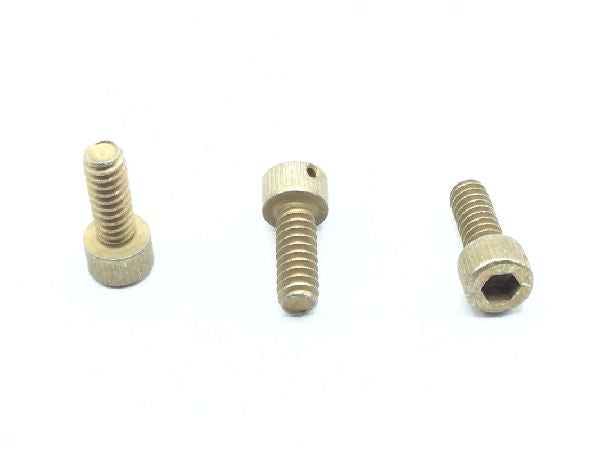

MS24677-7 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.62

Units per Pack 20

Price per Pack $52.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 20

Total Unit Quantity:

Total Packs 1

Total Price $52.40

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

Fastener Length: Between 0.345 inches and 0.375 inches
Hardness Rating: 38.0 rockwell c and 45.0 rockwell c
Head Height: Between 0.134 inches and 0.138 inches
Hole Configuration Style: Round internal hexagon
Hole Quantity: 2
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Minimum Yield Strength: 155000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Specification Data: 80205-nas1352 professional/industrial association standard
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: 0.283 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Width Across Flats: Between 0.109 inches and 0.111 inches
Head Diameter: Between 0.218 inches and 0.226 inches
Hole Diameter: 0.036 inches
