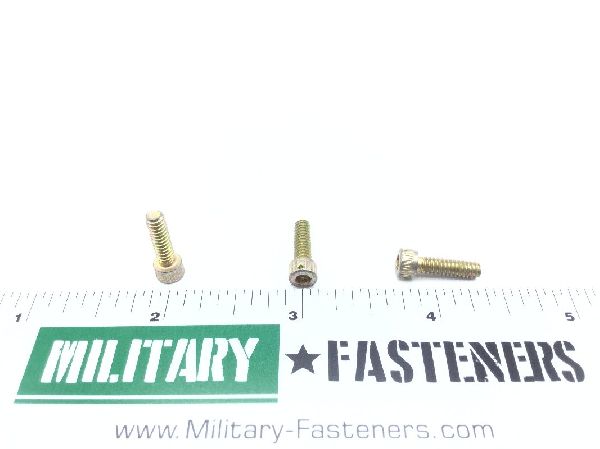

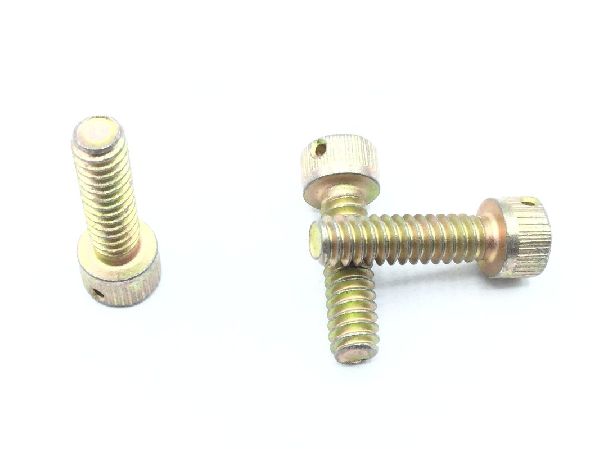

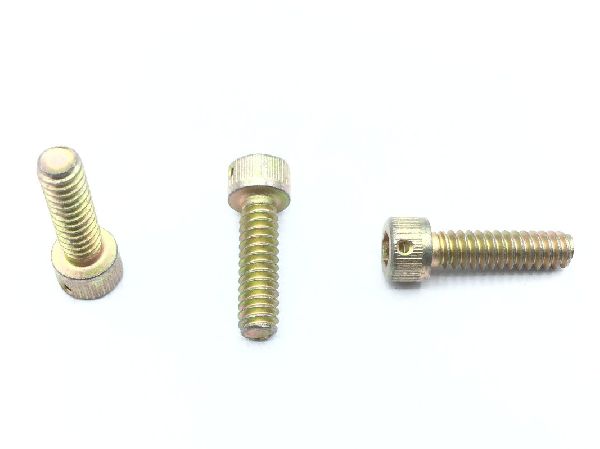

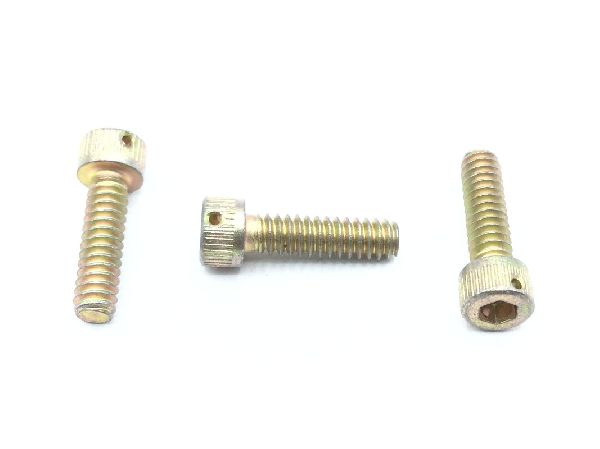

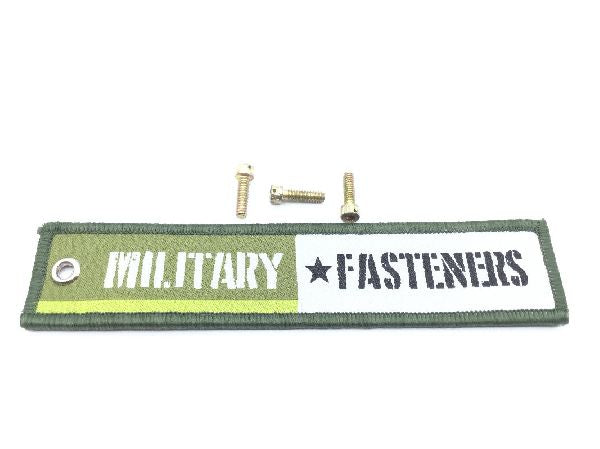

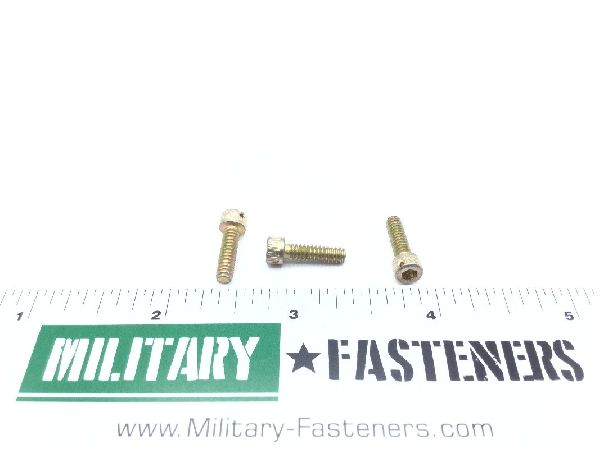

MS24677-8 Socket Head Cap Screw
MS24677-8 Socket Head Cap Screw (2)
MS24677-8 Socket Head Cap Screw (3)
MS24677-8 Socket Head Cap Screw (4)
MS24677-8 Socket Head Cap Screw (5)
MS24677-8 Socket Head Cap Screw (6)
MS24677-8 Socket Head Cap Screw
MS24677-8 Socket Head Cap Screw (2)
MS24677-8 Socket Head Cap Screw (3)
MS24677-8 Socket Head Cap Screw (4)
MS24677-8 Socket Head Cap Screw (5)
MS24677-8 Socket Head Cap Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24677-8 Socket Head Cap Screw

Product Series
MS
ECCN
EAR99
Schedule
7318.15.9000
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Head Style
Flat chamfer
Material
Steel
Surface Treatment
Qq-p-416 type 2 class 3 federal specification all treatment responses
Thread Class
3a
Fastener Length
Between 0.470 inches and 0.500 inches
Hardness Rating
38.0 rockwell c and 45.0 rockwell c
Head Height
Between 0.134 inches and 0.138 inches
Hole Configuration Style
Round internal hexagon
Hole Quantity
2
Hole Type
Drilled
Internal Drive Style
Hexagon
Material Specification
66 federal standard single material response
Min. Tensile Strength (psi)
180000 pounds per square inch
Minimum Yield Strength
155000 pounds per square inch
Thread Diameter
0.138 inches
Thread Direction
Right-hand
Thread Length
Between 0.408 inches and 0.500 inches
Thread Qty Per Inch (tpi)
32
Thread Series Designator
Unc (coarse thread)
Width Across Flats
Between 0.109 inches and 0.111 inches
Head Diameter
Between 0.218 inches and 0.226 inches
Hole Diameter
Between 0.033 inches and 0.039 inches
