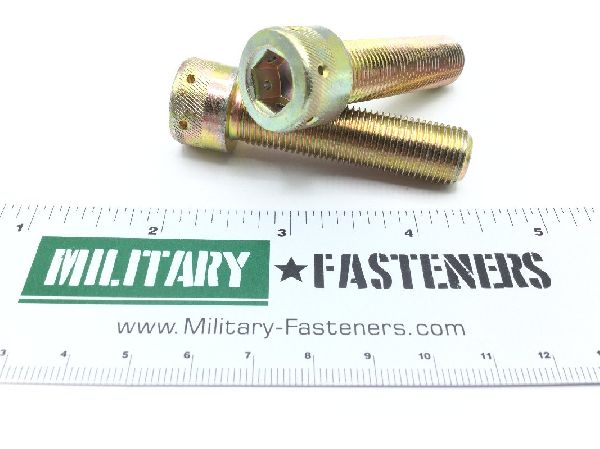

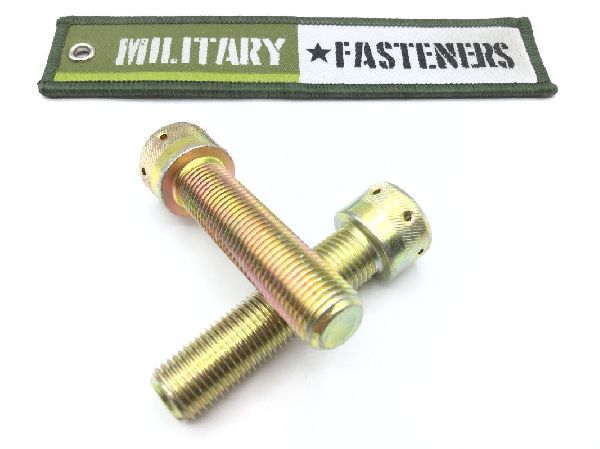

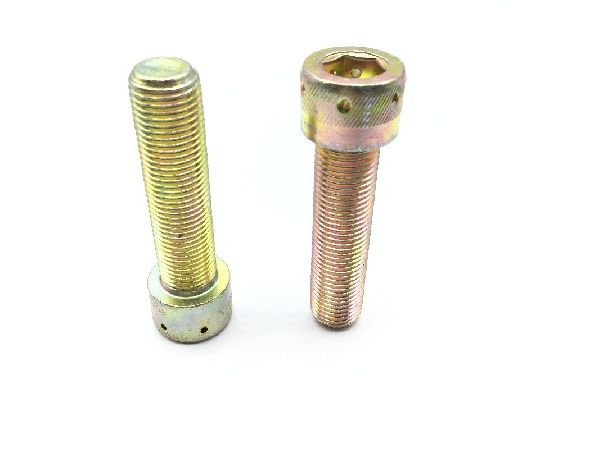

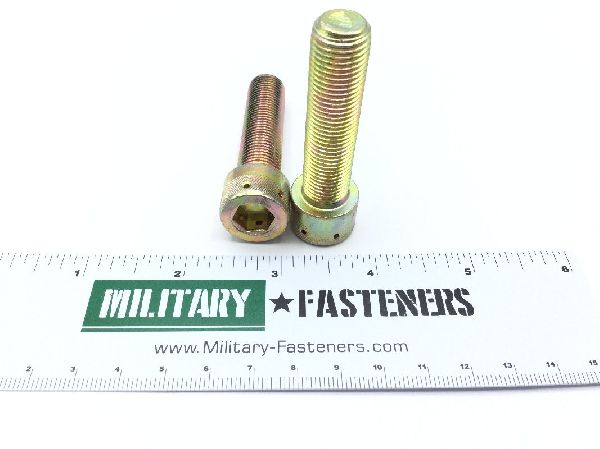

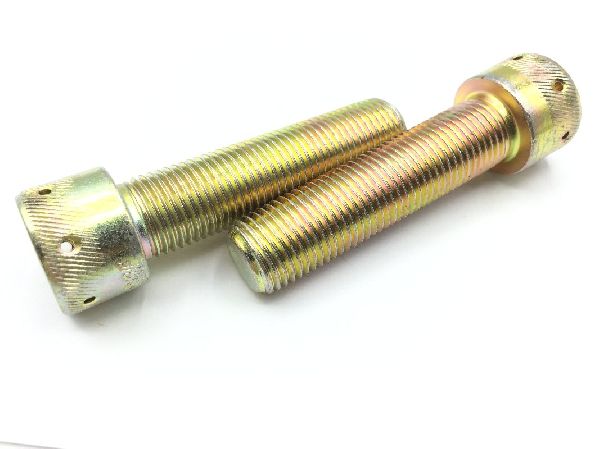

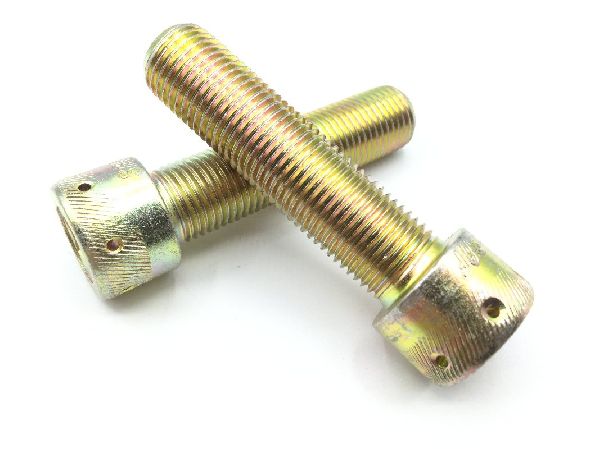

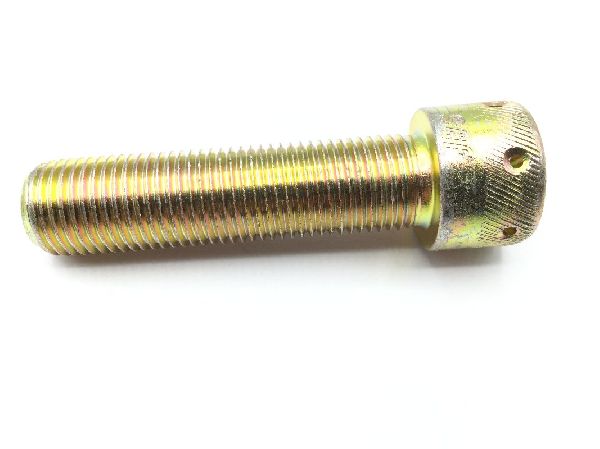

MS24678-61 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $24.26

Units per Pack 2

Price per Pack $48.52

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 2

Total Unit Quantity:

Total Packs 1

Total Price $48.52

Add item to quote

Head Style

Flat chamfer

Material

Steel

Thread Class

Fastener Length: Between 1.984 inches and 2.032 inches
Hardness Rating: 36.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.492 inches and 0.500 inches
Hole Configuration Style: Round
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Min. Tensile Strength (psi): 160000 pounds per square inch
Nondefinitive Specification/std Data: 6 type
Thread Diameter: 0.50 inches
Thread Direction: Right-hand
Thread Length: 1.50 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.375 inches and 0.379 inches
Head Diameter: Between 0.735 inches and 0.750 inches
Hole Diameter: 0.064 inches
