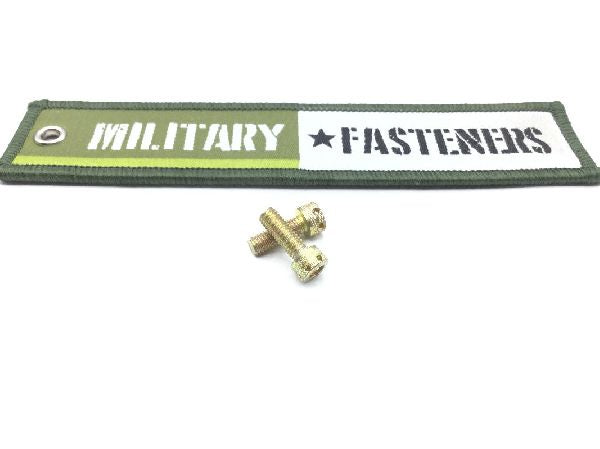

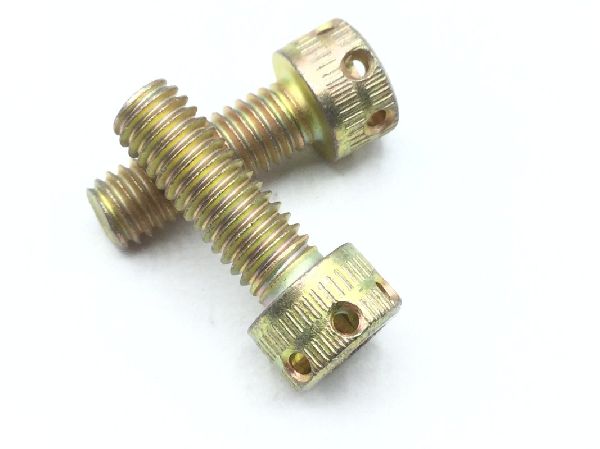

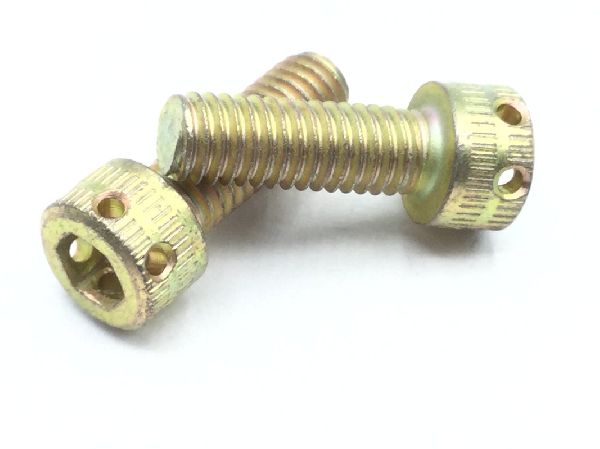

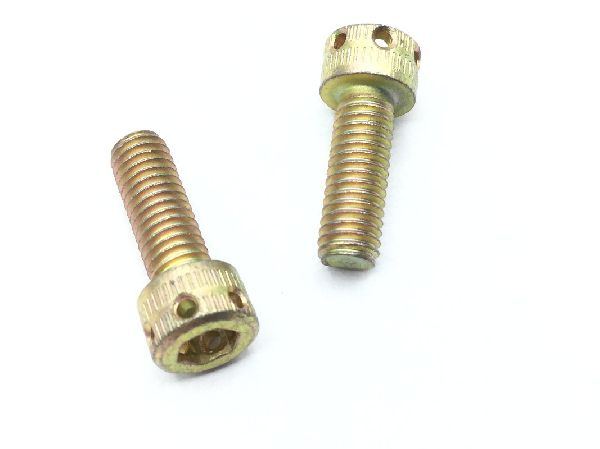

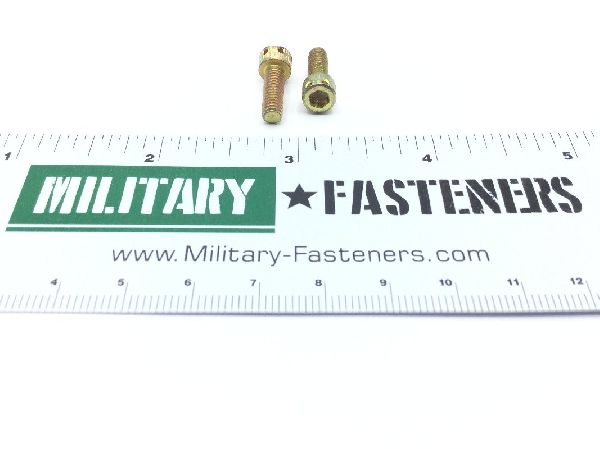

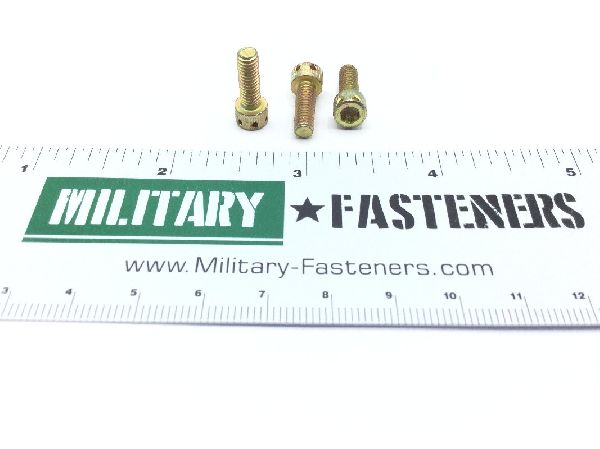

MS24678-7 Socket Head Cap Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $5.89

Units per Pack 10

Price per Pack $58.90

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $58.90

Add item to quote

Head Style

Flat chamfer

Material

Steel

Surface Treatment

Cl3 federal specification single treatment response ty2 qq-p-416

Thread Class

Fastener Length: 0.500 inches
Hardness Rating: 36.0 rockwell c and 43.0 rockwell c
Head Height: Between 0.159 inches and 0.164 inches
Hole Configuration Style: Round
Hole Quantity: 6
Hole Type: Drilled
Internal Drive Style: Hexagon
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Minimum Yield Strength: 130000 pounds per square inch
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.460 inches
Thread Qty Per Inch (tpi): 36
Thread Series Designator: Unf (fine thread)
Width Across Flats: Between 0.141 inches and 0.143 inches
Head Diameter: Between 0.262 inches and 0.270 inches
Hole Diameter: Between 0.044 inches and 0.050 inches
