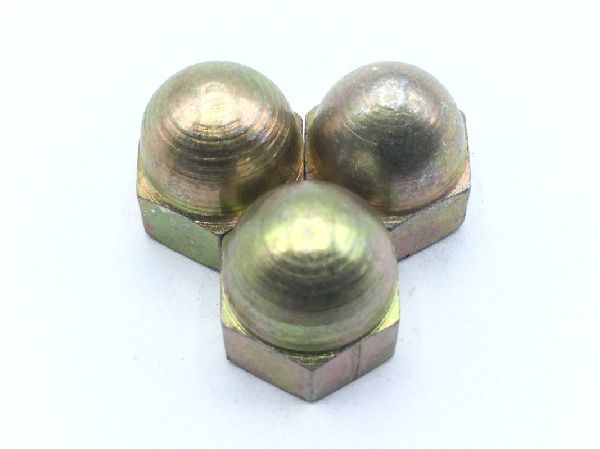

MS24679-5 Nut

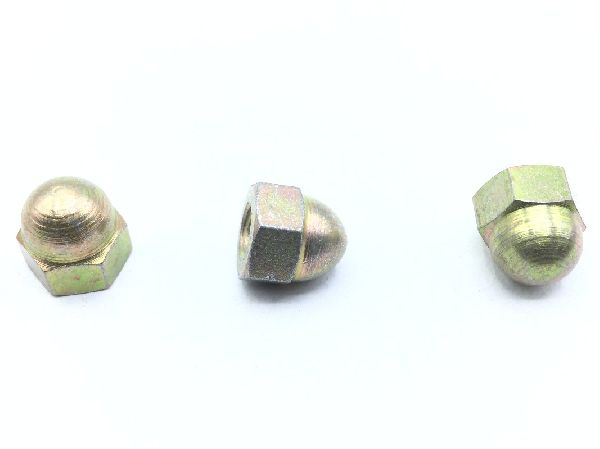

MS24679-5 Nut (2)

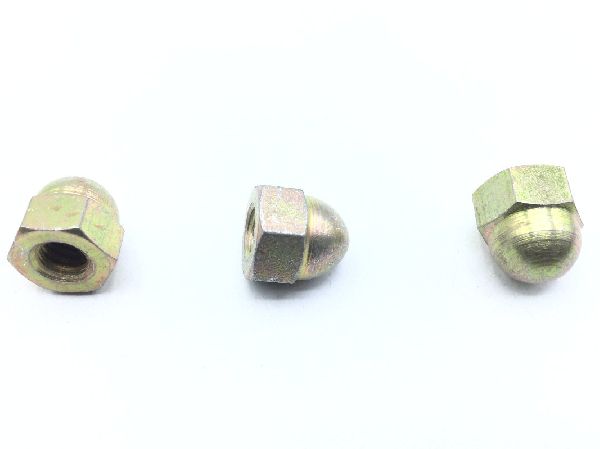

MS24679-5 Nut (3)

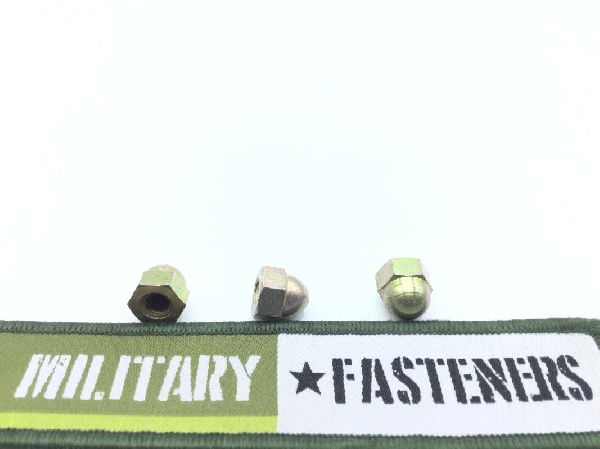

MS24679-5 Nut (4)

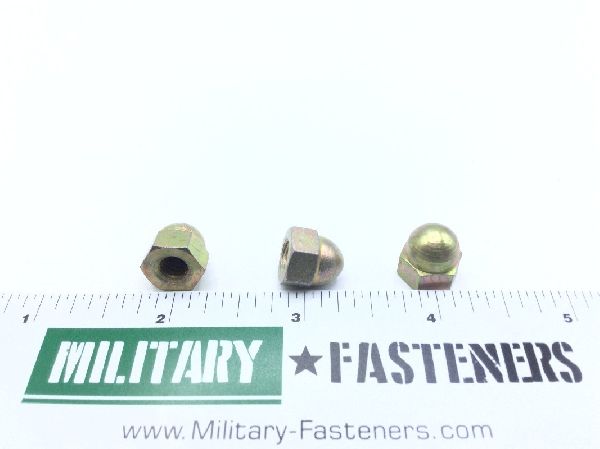

MS24679-5 Nut (5)

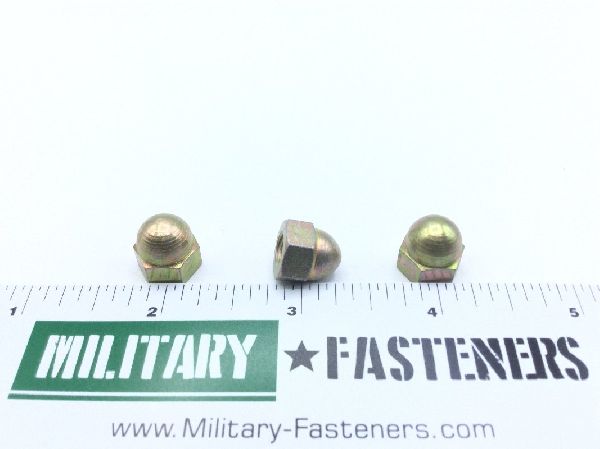

MS24679-5 Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24679-5 Nut

Product Series: MS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $9.70

Units per Pack 5

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Material

Steel comp 1018 or steel comp 1020 or steel comp 1118

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

2b

Thread Series

Unc (coarse thread)

Thread Size

0.250 inches

Bearing Surface Type: Chamfered
Material Specification: Astm a576 assn standard all material responses
Nondefinitive Specification/std Data: 3 type and 15 style
Nut Height: 0.470 inches
Nut Style: Cap
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
Width Across Flats: Between 0.428 inches and 0.438 inches
