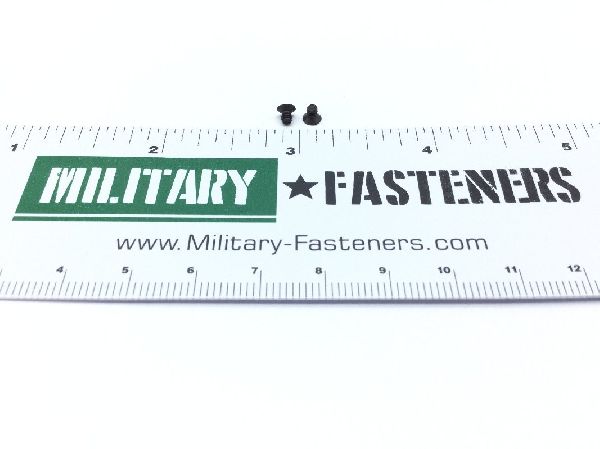

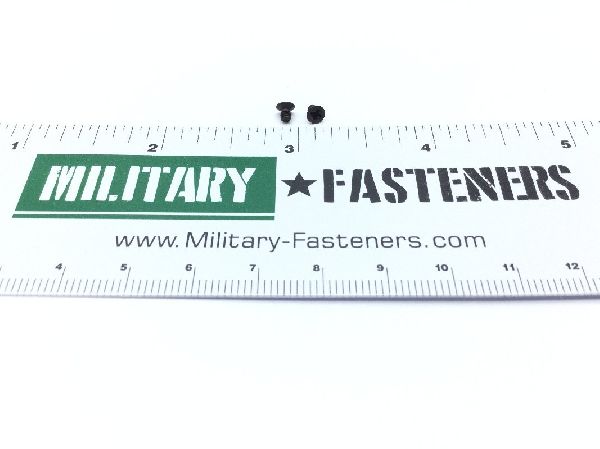

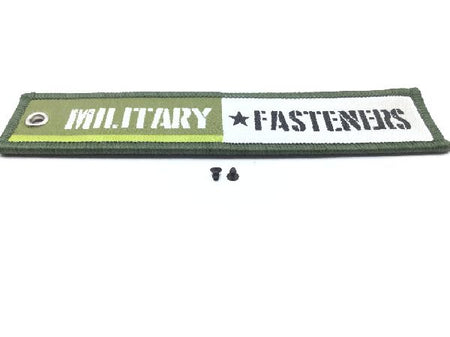

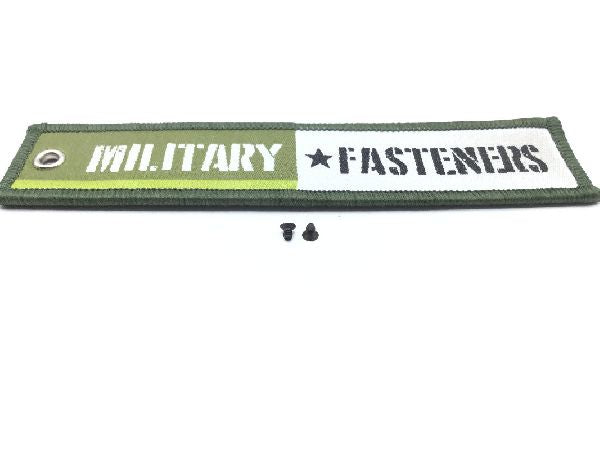

MS24693-16B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.25

Units per Pack 100

Price per Pack $25.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $25.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Color: Black
Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.110 inches and 0.125 inches
Internal Drive Style: Cross recess type 1
Screw Material: Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316
Screw Surface Treatment: Oxide
Screw Surface Treatment Specification: Mil-c-13924 military specification single treatment response
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.089 inches and 0.125 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.143 inches and 0.172 inches
