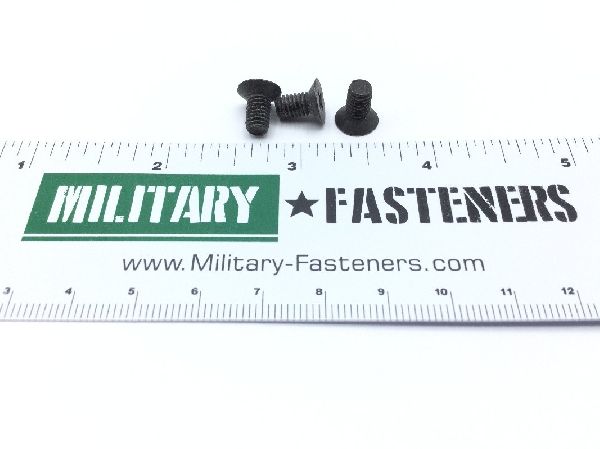

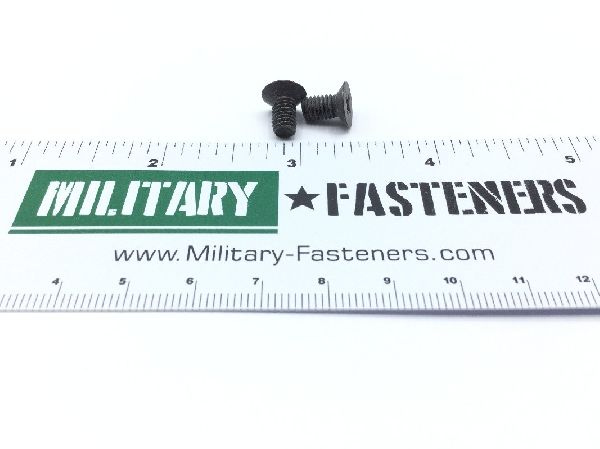

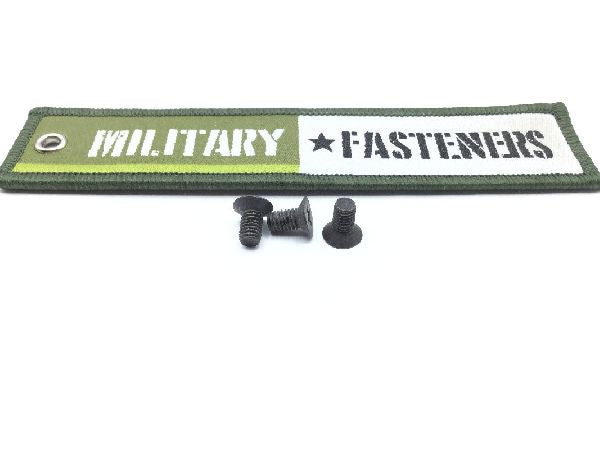

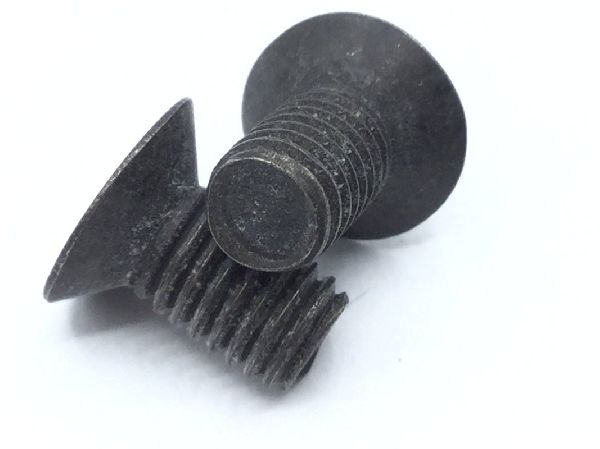

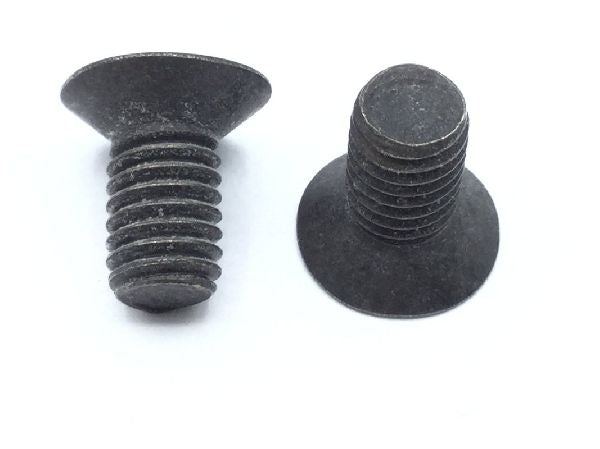

MS24693-270B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.40

Units per Pack 100

Price per Pack $40.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $40.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Mil-c-13924 class 4 military specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.344 inches and 0.375 inches
Internal Drive Style: Cross recess type 1
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 3c style
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.199 inches and 0.261 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.333 inches and 0.385 inches
