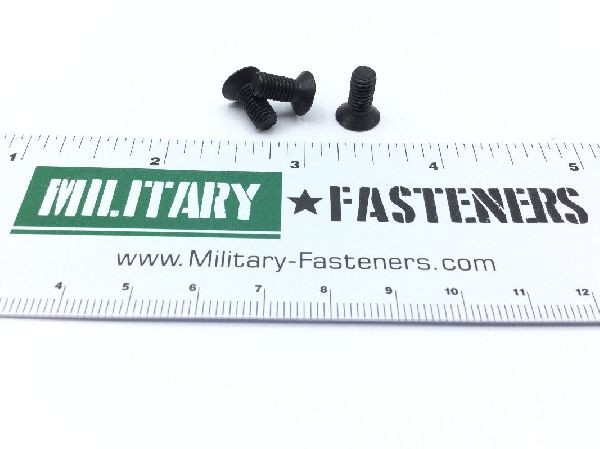

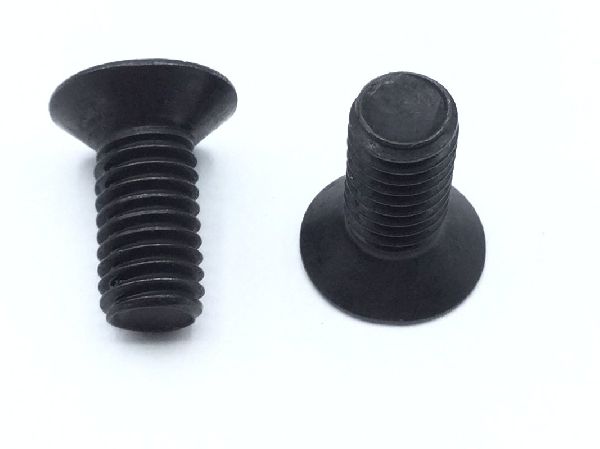

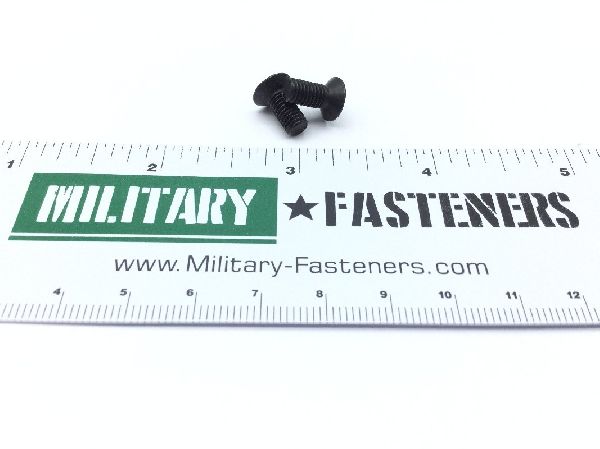

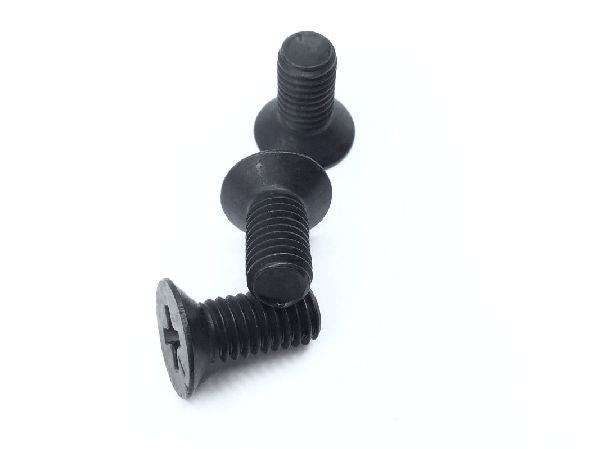

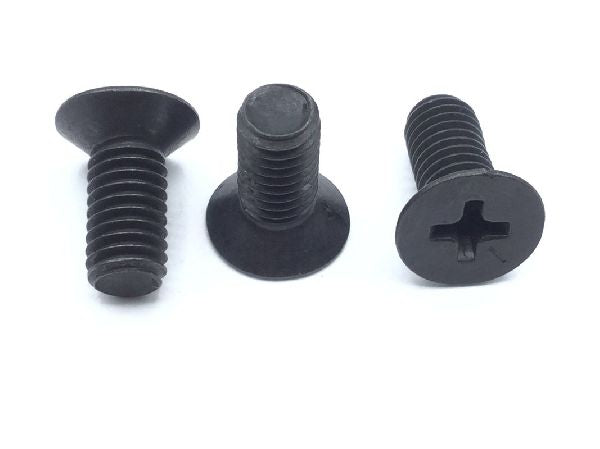

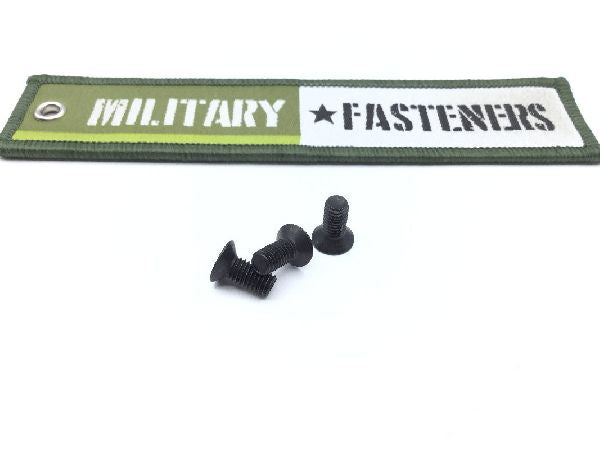

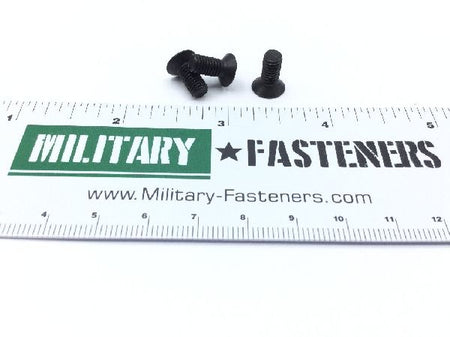

MS24693-271B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.407 inches and 0.438 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 3c style
Screw Material: Steel comp
Screw Surface Treatment: Oxide
Screw Surface Treatment Specification: Class 4 military specification single treatment response mil-c-13924
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.262 inches and 0.355 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.333 inches and 0.385 inches
