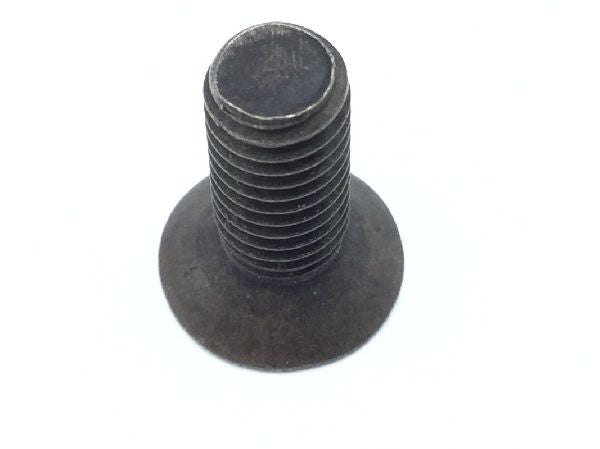

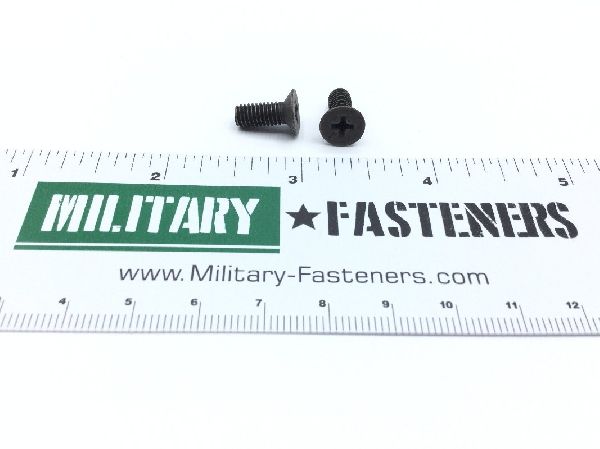

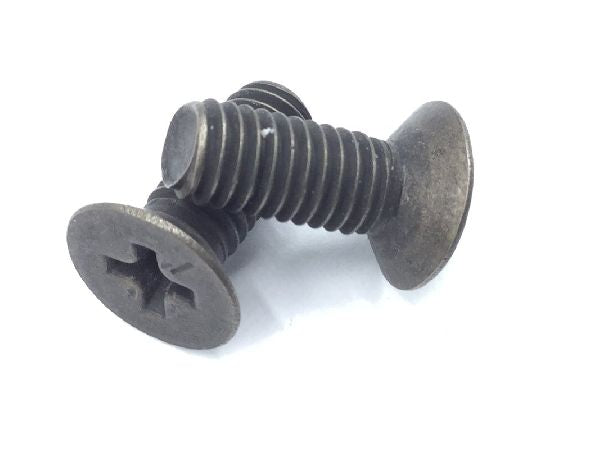

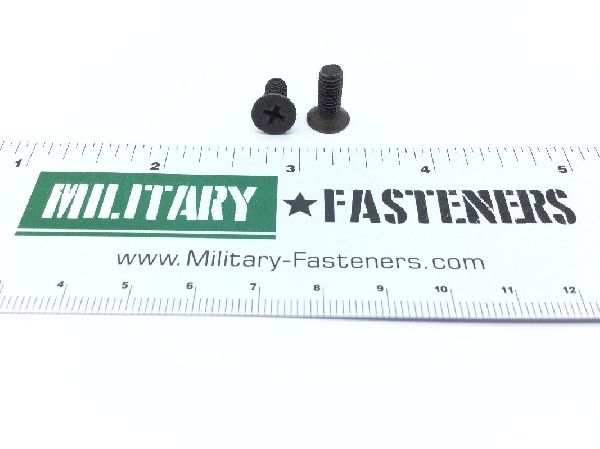

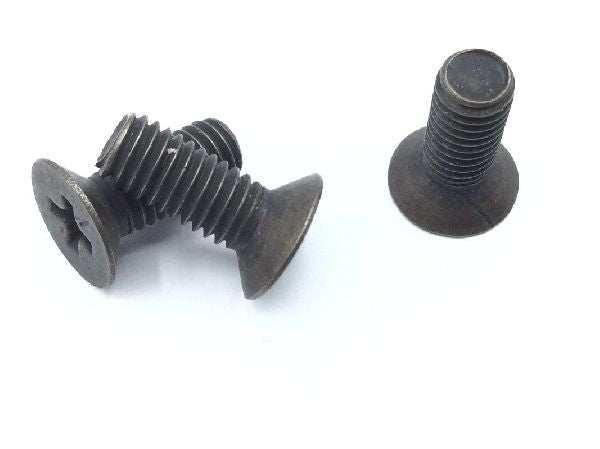

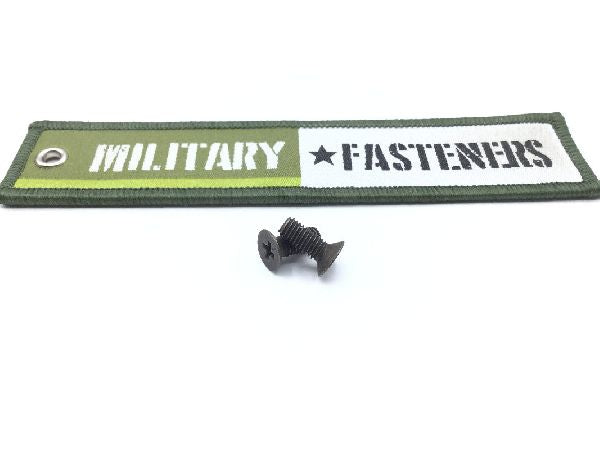

MS24693-272B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Thread Class

Thread Quantity Per Inch (tpi)

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.469 inches and 0.500 inches
Internal Drive Style: Cross recess type ii
Screw Material: Stainless Steel
Screw Material Specification: 300 series federal standard single material response 66
Screw Surface Treatment: Passivate and oxide
Screw Surface Treatment Specification: 300 series federal standard single treatment response and mil-c-13924 military specification single treatment response 66
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.417 inches
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.359 inches and 0.385 inches
