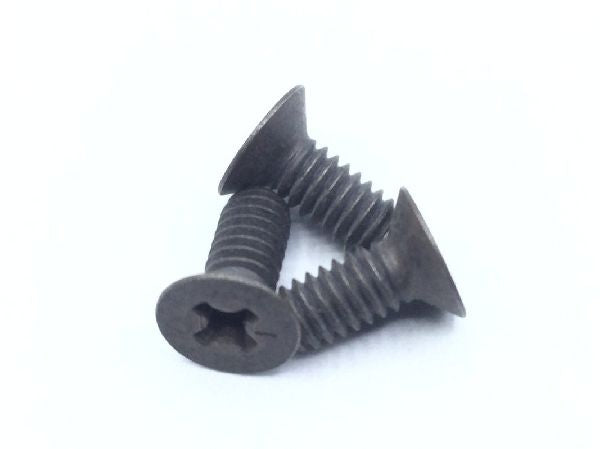

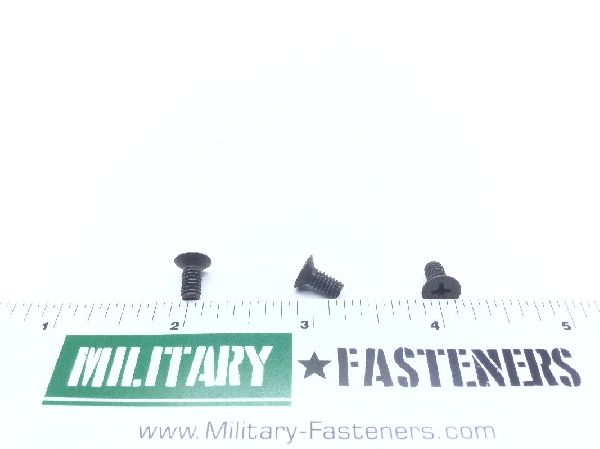

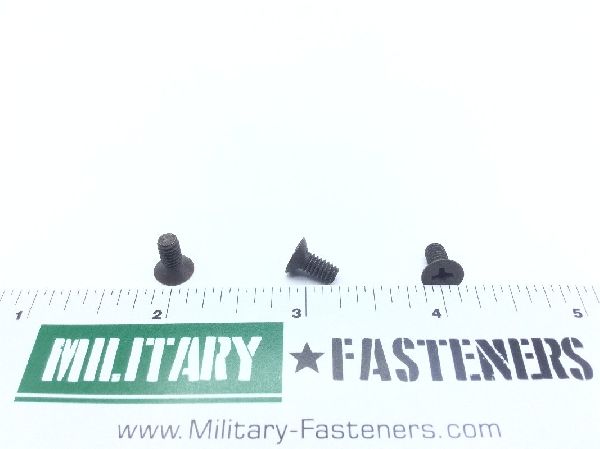

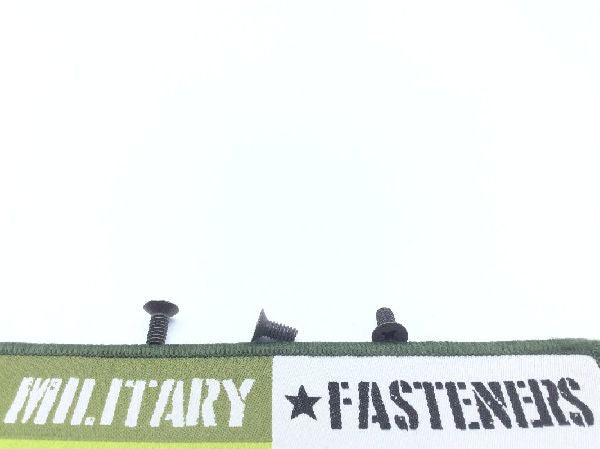

MS24693-48B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.30

Units per Pack 100

Price per Pack $30.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $30.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: 100.0 degrees
Fastener Length: Between 0.344 inches and 0.375 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 3c style
Screw Material: Copper alloy 230 or copper alloy 240 or copper alloy 260 or copper alloy 268 or copper alloy 342 or copper alloy 353 or copper alloy 270 or copper alloy 274 or copper alloy 360
Screw Surface Treatment: Oxide
Screw Surface Treatment Specification: Mil-f-495 military specification single treatment response
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.210 inches and 0.303 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.285 inches and 0.332 inches
