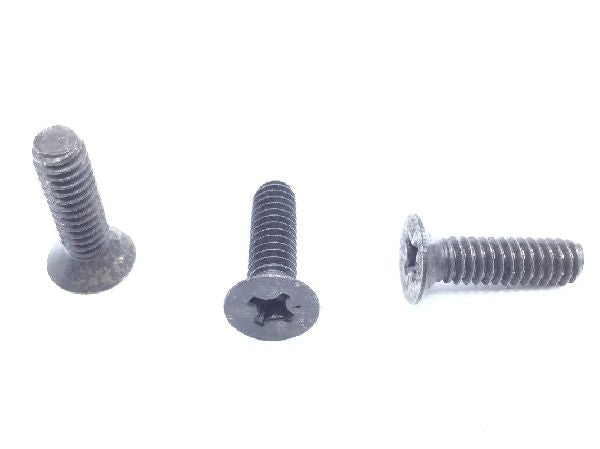

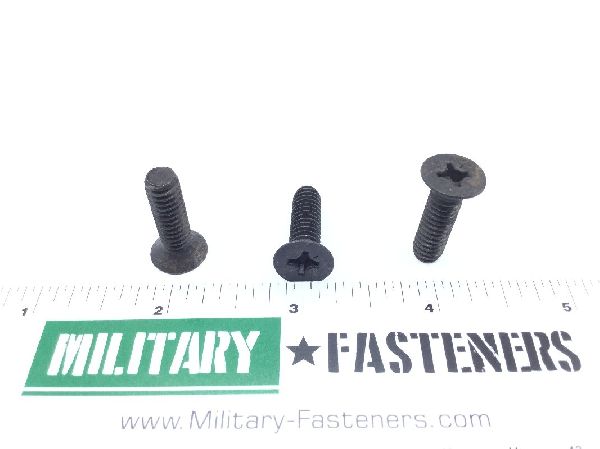

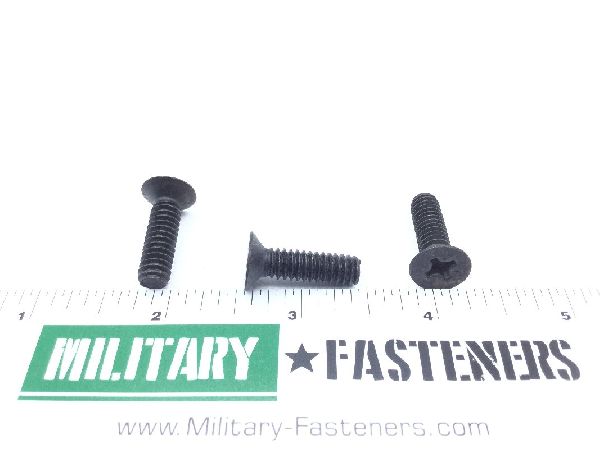

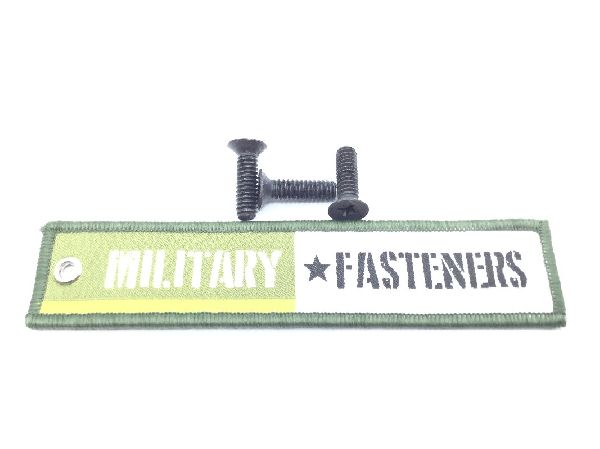

MS24693-97B Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.92

Units per Pack 50

Price per Pack $46.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $46.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Thread Class

Color: Black
Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.844 inches and 0.875 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Screw Surface Treatment: Oxide
Screw Surface Treatment Specification: Cl4 military specification single treatment response mil-s-13924
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.634 inches and 0.765 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.442 inches and 0.507 inches
