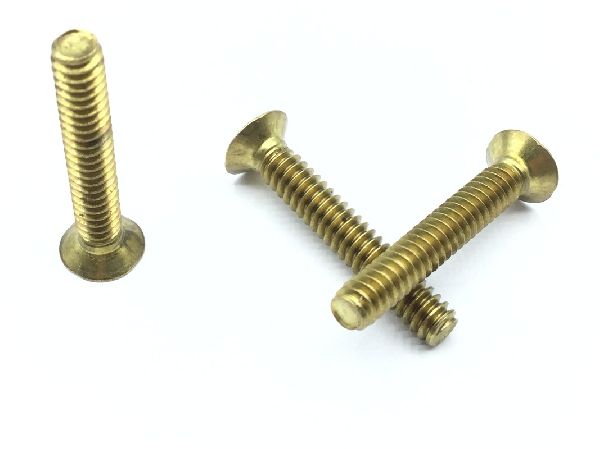

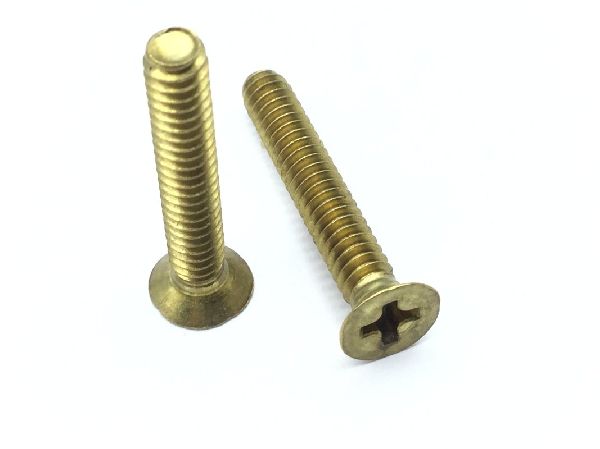

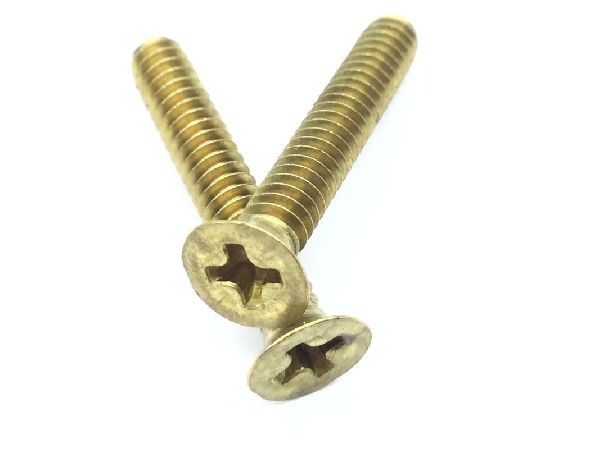

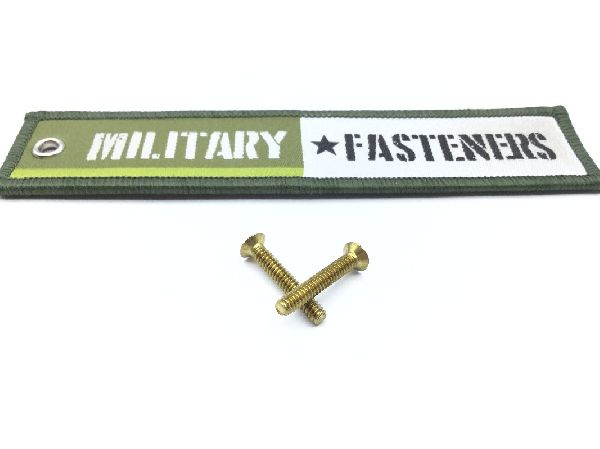

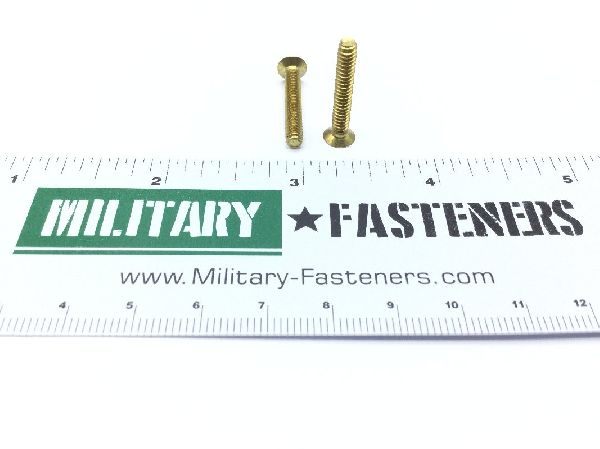

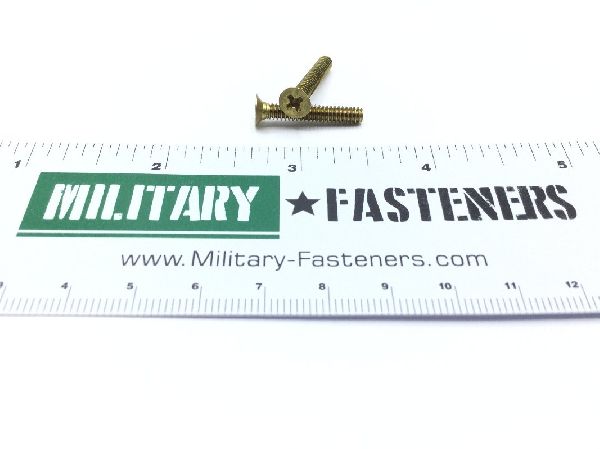

MS24693-B31 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.97

Units per Pack 50

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.844 inches and 0.875 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 55000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 3c style
Screw Material: Copper alloy
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.722 inches and 0.815 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.238 inches and 0.279 inches
