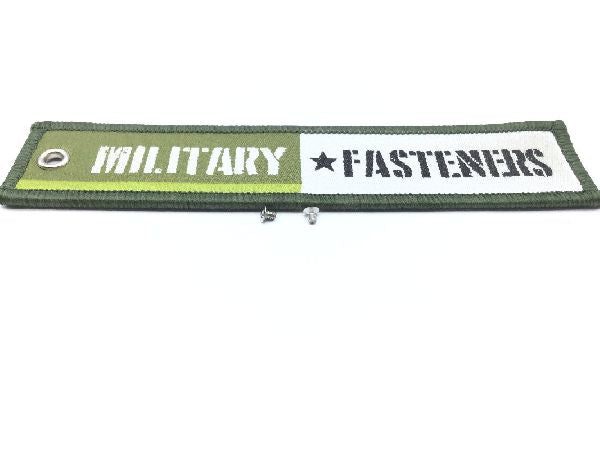

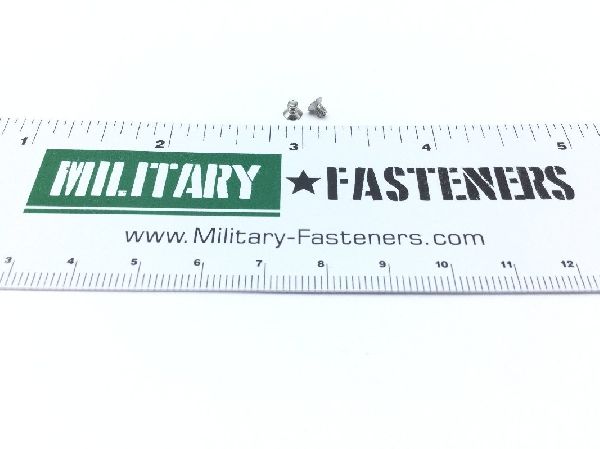

MS24693-C16 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.27

Units per Pack 100

Price per Pack $27.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $27.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Thread Quantity Per Inch (tpi)

Countersink Angle: Between 99 degrees and 101 degrees
Fastener Length: Between 0.11 inches and 0.125 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 2 type and 10p style
Screw Material: Steel comp
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.037 inches and 0.088 inches
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.143 inches and 0.172 inches
