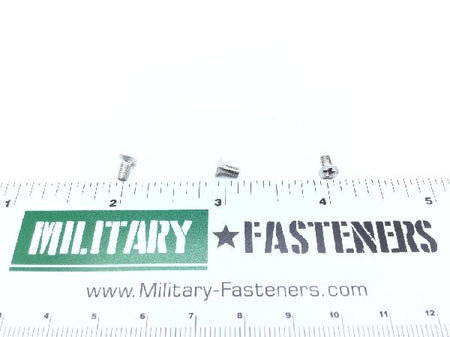

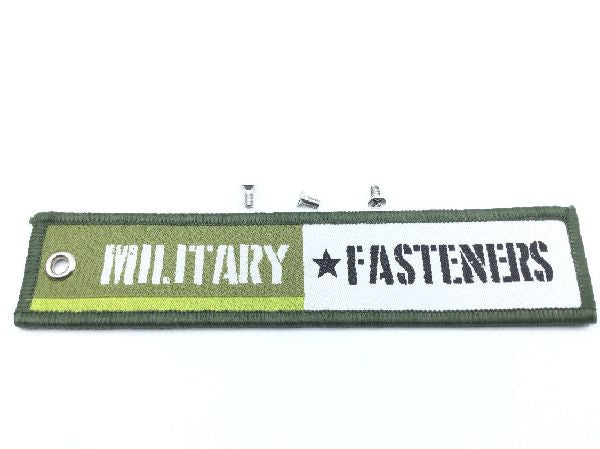

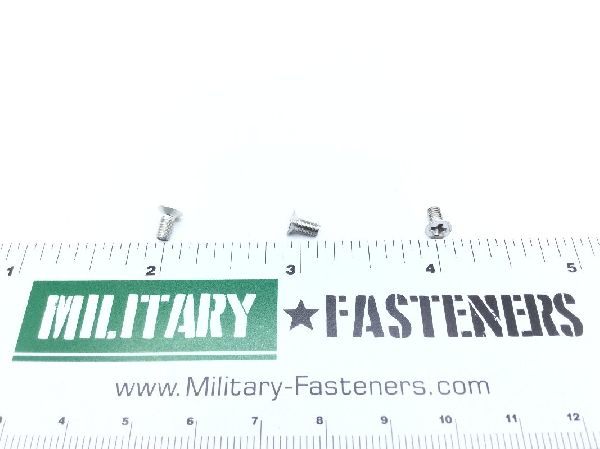

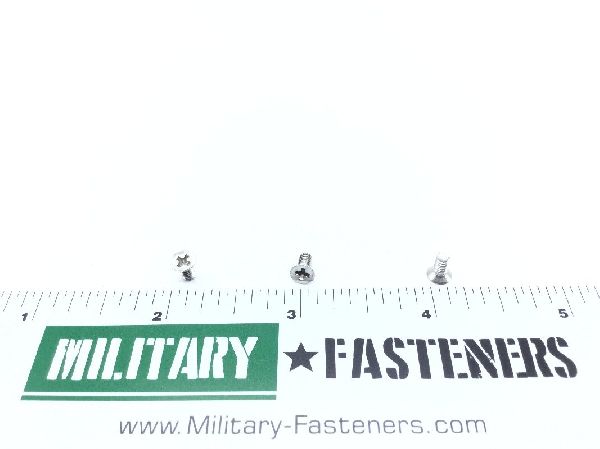

MS24693-C202 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.38

Units per Pack 100

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.219 inches and 0.250 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 3c style
Screw Material: Stainless Steel
Screw Material Specification: 300 series federal standard single material response or comp 16-18 or 18-8 assn standard single material response 300 series federal specification single material response or 66 qq-s-763
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.128 inches and 0.201 inches
Thread Qty Per Inch (tpi): 48
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.191 inches and 0.225 inches
