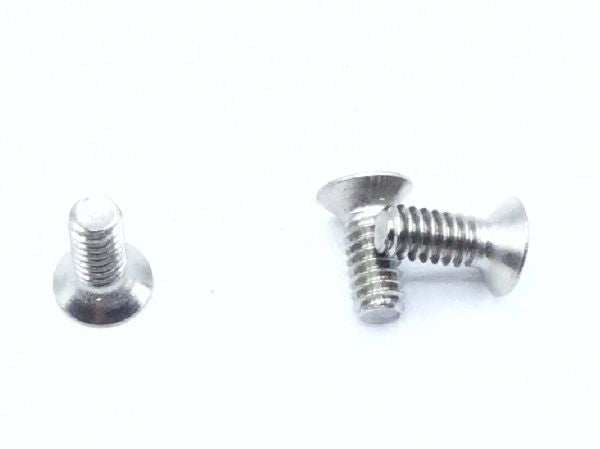

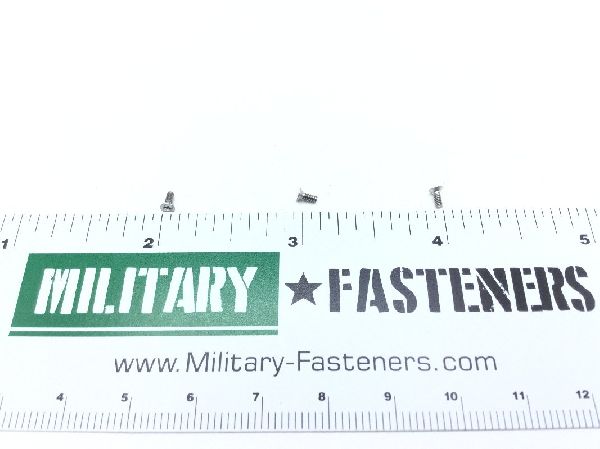

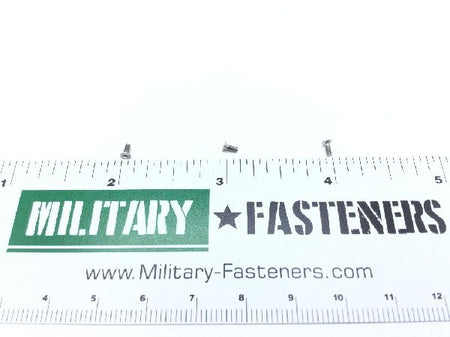

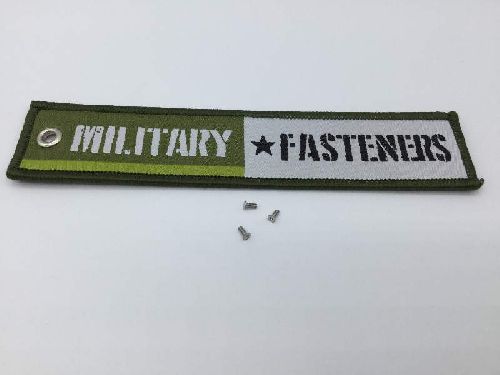

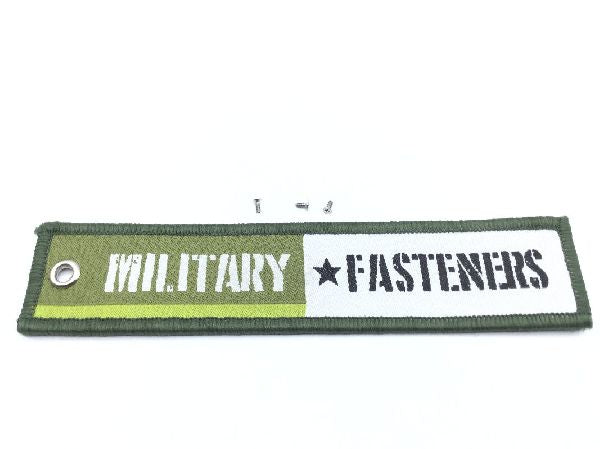

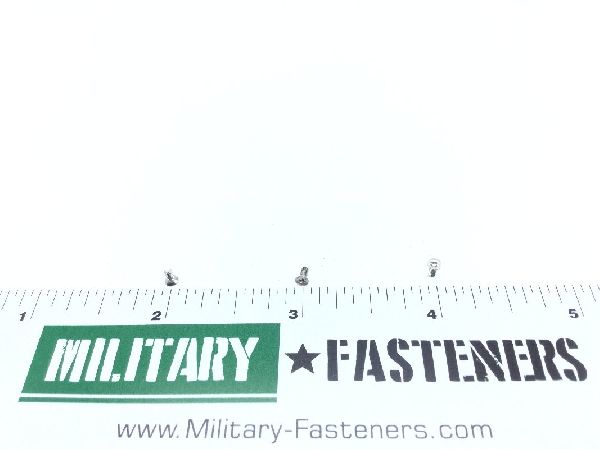

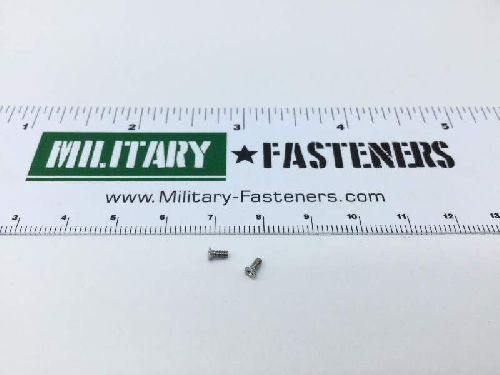

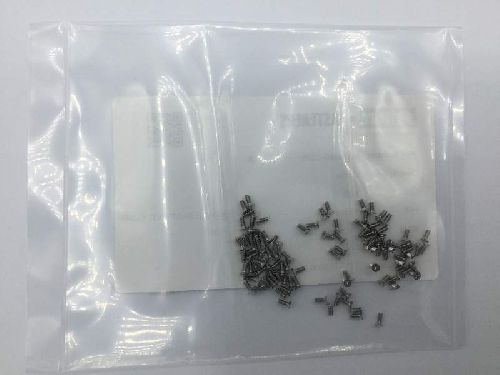

MS24693-C219 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.27

Units per Pack 100

Price per Pack $27.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $27.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.140 inches and 0.156 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 3c style
Thread Diameter: 0.060 inches
Thread Direction: Right-hand
Thread Length: Between 0.089 inches and 0.130 inches
Thread Qty Per Inch (tpi): 80
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.096 inches and 0.119 inches
