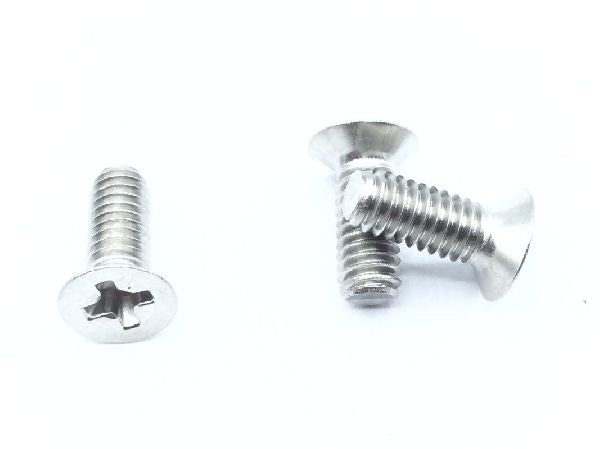

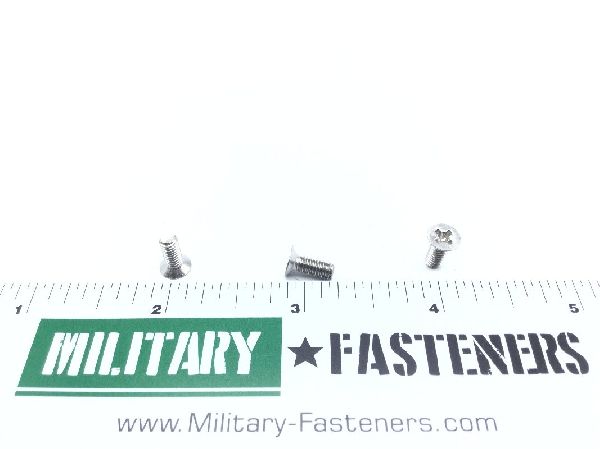

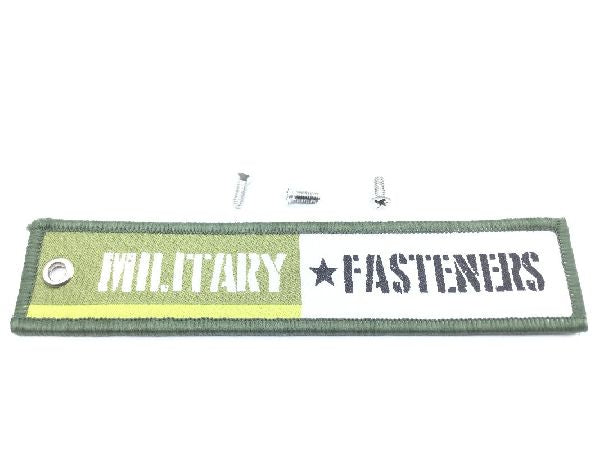

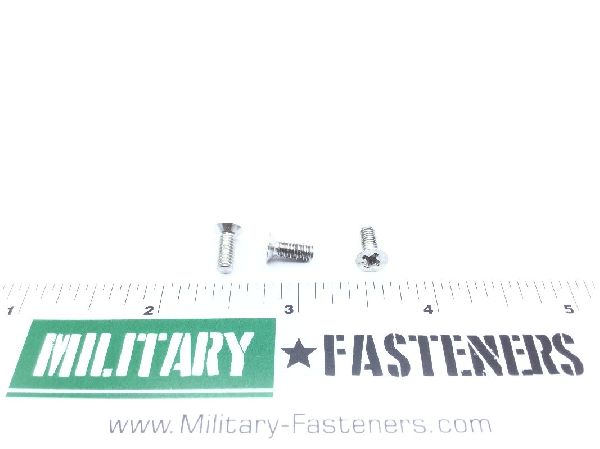

MS24693-C226 Machine Screw
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Countersink Angle
- Between 99.0 degrees and 101.0 degrees
- Fastener Length
- Between 0.344 inches and 0.375 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 80000 pounds per square inch
- Nondefinitive Specification/std Data
- 3 type and 3c style
- Screw Material
- Stainless steel or steel
- Screw Material Specification
- 300 series federal standard 1st material response or comp 16-18 or 18-8 assn standard 2nd material response 300 series federal specification 1st material response or 66 qq-s-763
- Screw Surface Treatment
- Passivate
- Screw Surface Treatment Specification
- Qq-p-35 federal specification single treatment response
- Thread Diameter
- 0.138 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.234 inches and 0.315 inches
- Thread Qty Per Inch (tpi)
- 40
- Thread Series Designator
- Unf (fine thread)
- Head Diameter
- Between 0.238 inches and 0.279 inches
