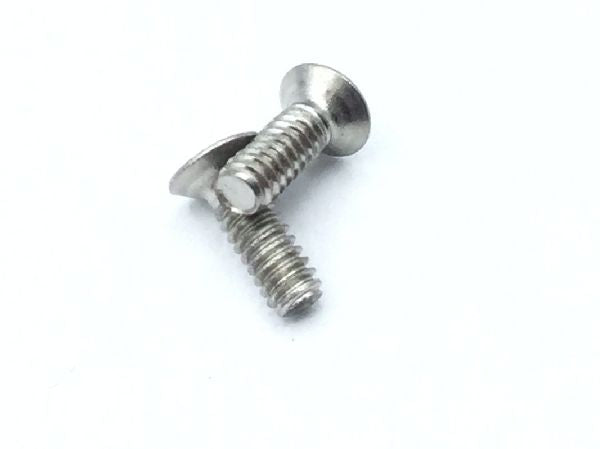

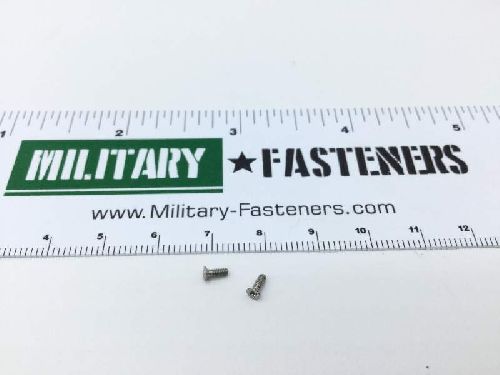

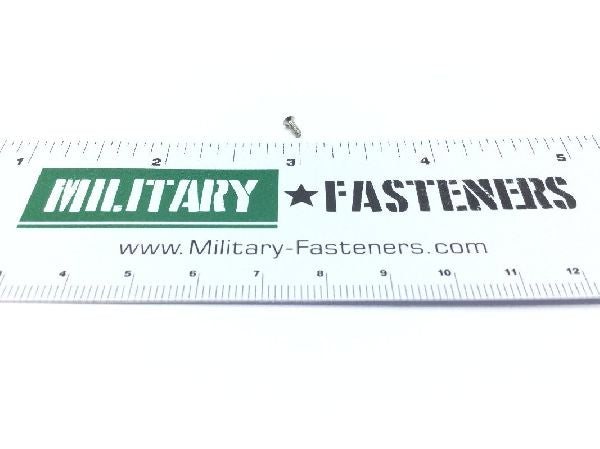

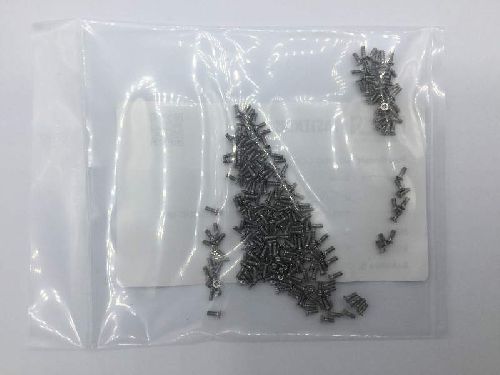

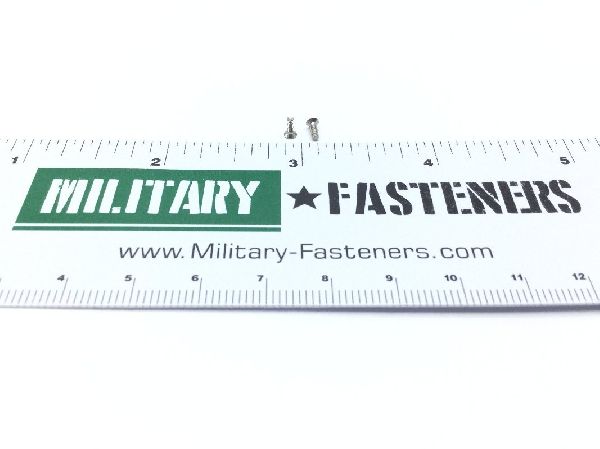

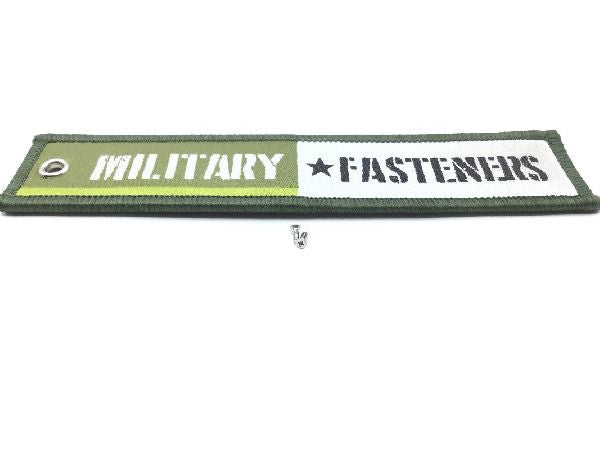

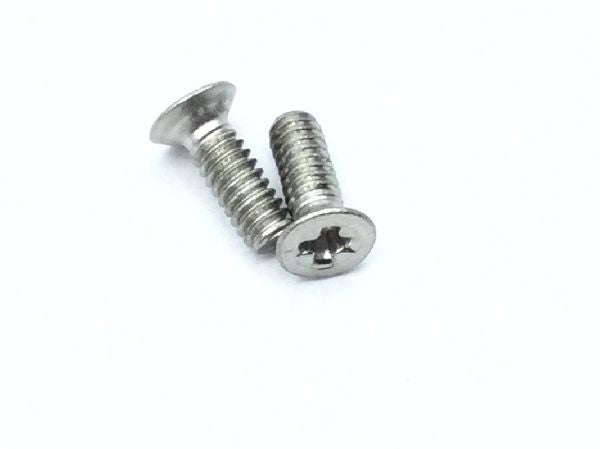

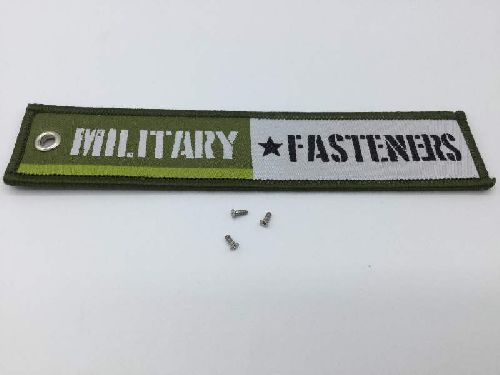

MS24693-C420 Machine Screw

Product Series: MS
ECCN: 9A991
Schedule: 7318.15.2091

Price per Unit $0.36

Units per Pack 100

Price per Pack $36.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $36.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Departure From Cited Document: As modified by finish specification
Fastener Length: Between 0.157 inches and 0.188 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and yl3c style
Screw Material: Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Astm a380 assn standard single treatment response
Thread Diameter: 0.060 inches
Thread Direction: Right-hand
Thread Length: Between 0.106 inches and 0.163 inches
Thread Qty Per Inch (tpi): 80
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.096 inches and 0.119 inches
