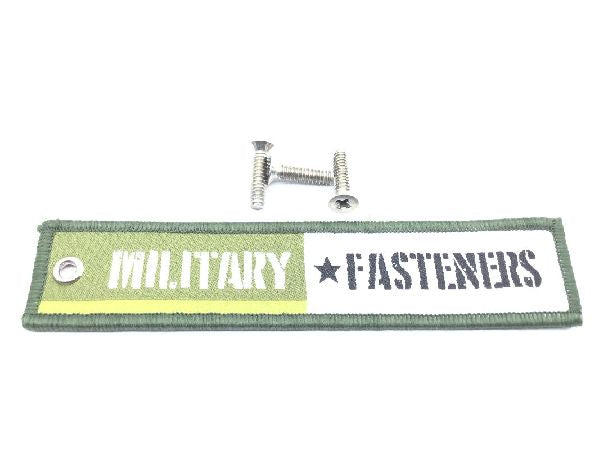

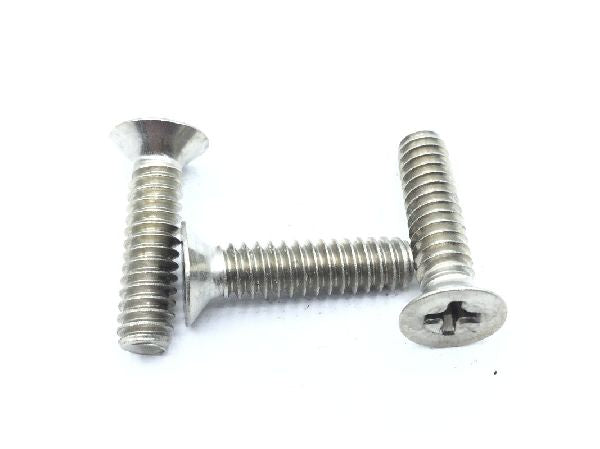

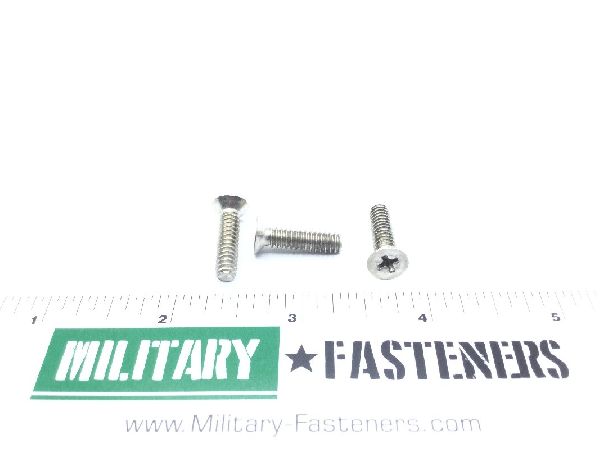

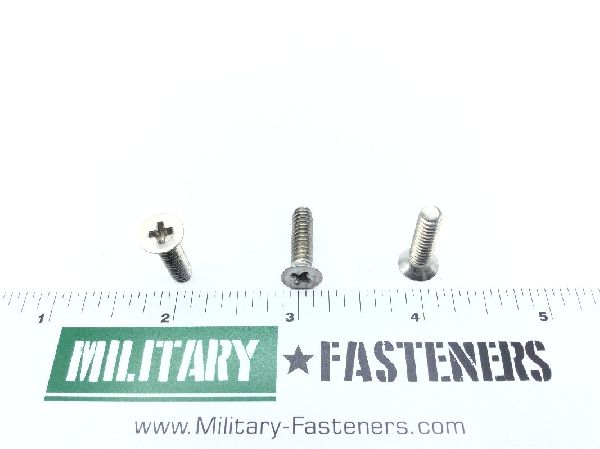

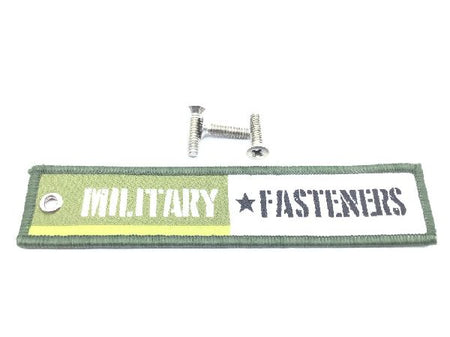

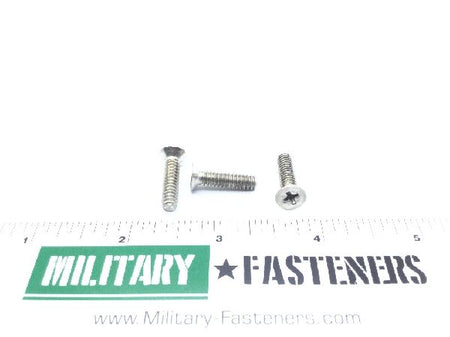

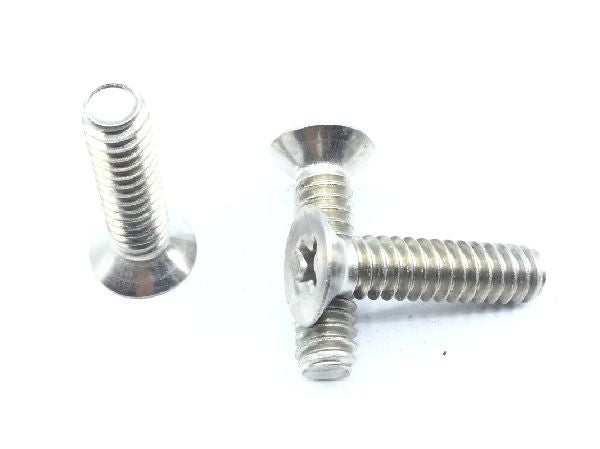

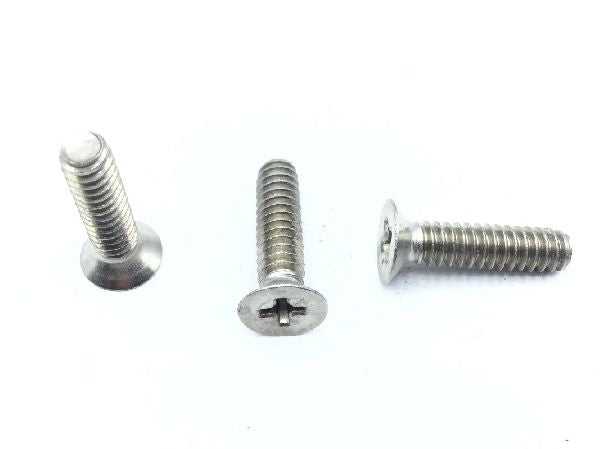

MS24693-C74 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.42

Units per Pack 100

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 0.750 inches
Internal Drive Style: Cross recess type 1
Screw Material: Steel
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Passivate
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.667 inches and 0.750 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.333 inches and 0.385 inches
