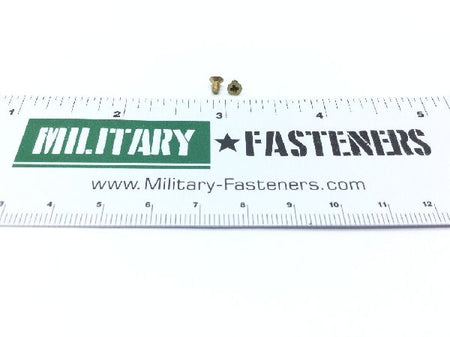

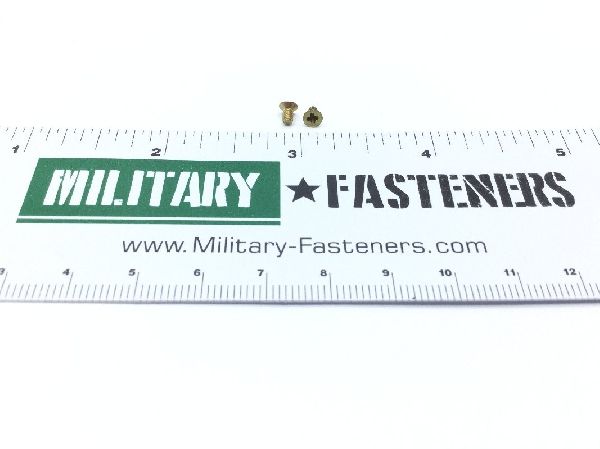

MS24693-S17 Machine Screw

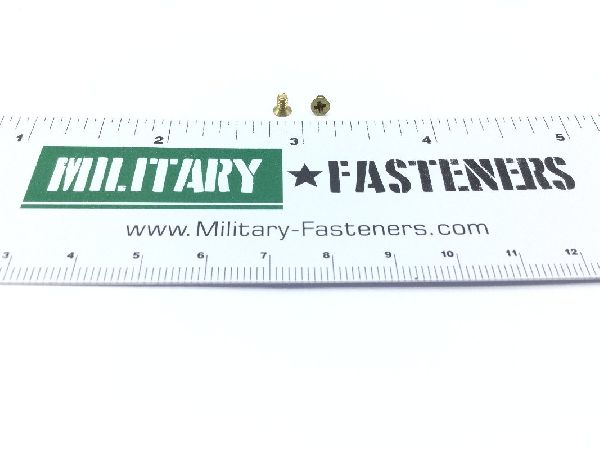

MS24693-S17 Machine Screw (2)

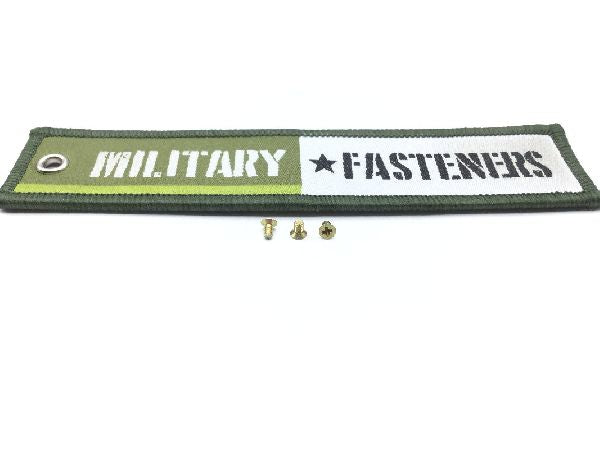

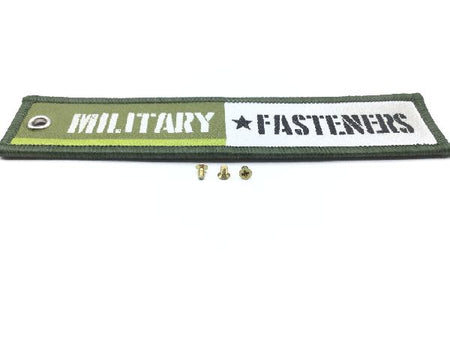

MS24693-S17 Machine Screw (3)

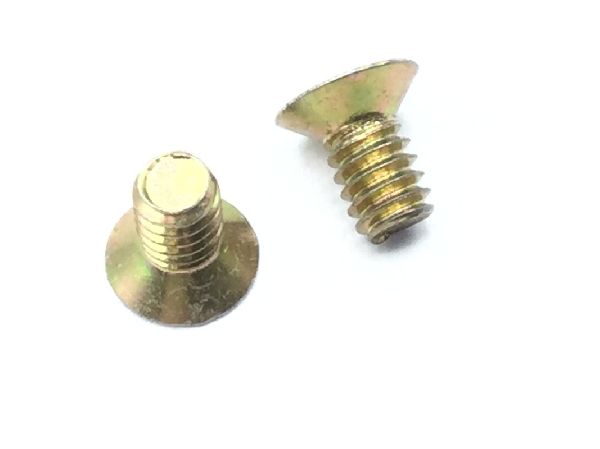

MS24693-S17 Machine Screw (4)

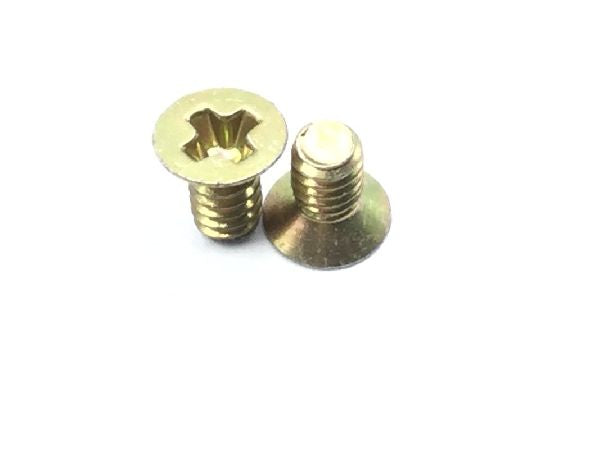

MS24693-S17 Machine Screw (5)

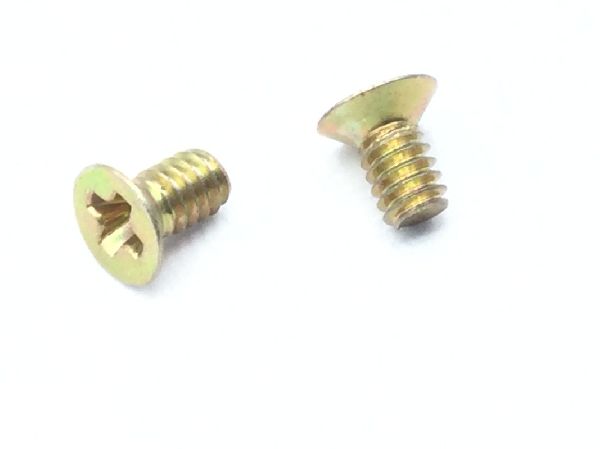

MS24693-S17 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24693-S17 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.30

Units per Pack 100

Price per Pack $30.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $30.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Qq-p-416 type 2 cl 3 federal specification single treatment response

Thread Class

2a

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.140 inches and 0.156 inches
Internal Drive Style: Cross recess type 1
Thread Diameter: 0.086 inches
Thread Direction: Right-hand
Thread Length: Between 0.067 inches and 0.156 inches
Thread Qty Per Inch (tpi): 56
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.143 inches and 0.172 inches
