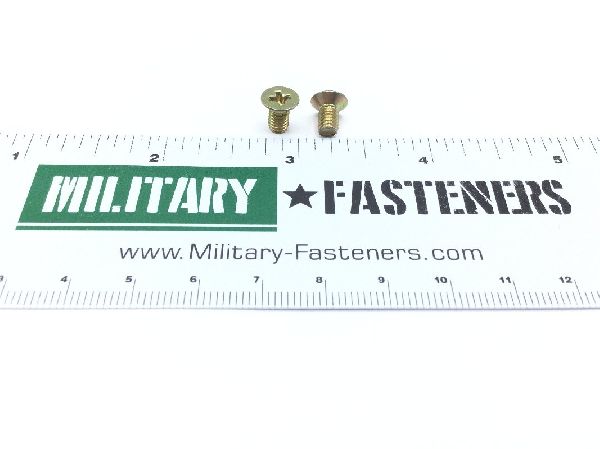

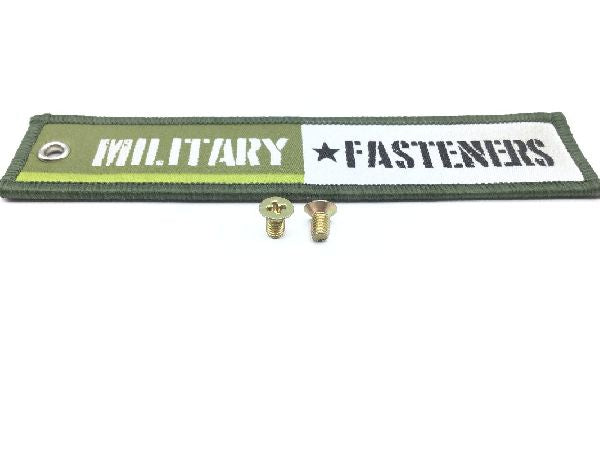

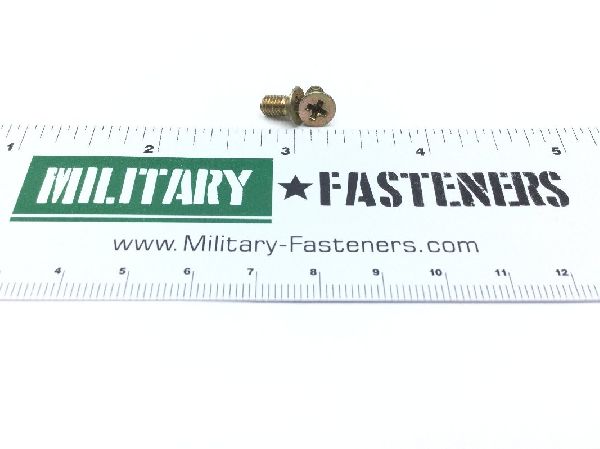

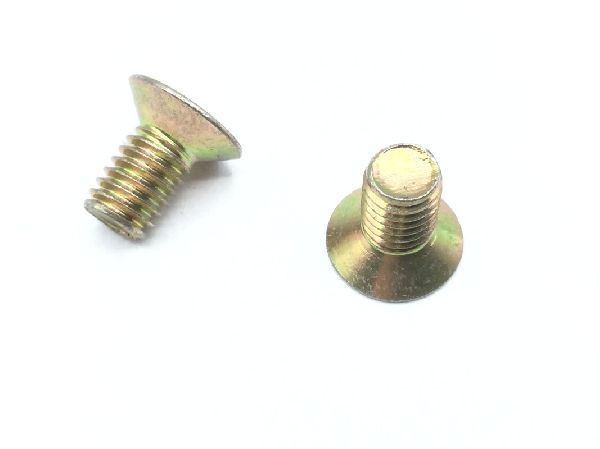

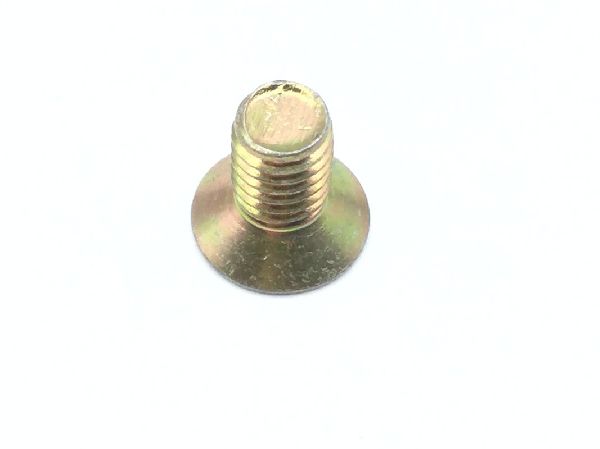

MS24693-S247 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.46

Units per Pack 100

Price per Pack $46.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $46.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.281 inches and 0.312 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 3 type or 3c style
Screw Material: Steel
Screw Material Specification: Qq-s-634 federal specification single material response or qq-s-637 federal specification single material response or 66 federal standard single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Ty2 cl3 federal specification single treatment response qq-p-416
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.163 inches and 0.240 inches
Thread Qty Per Inch (tpi): 36
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.285 inches and 0.332 inches
