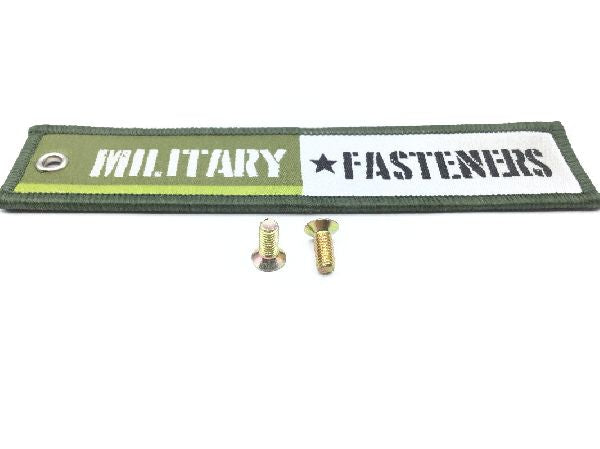

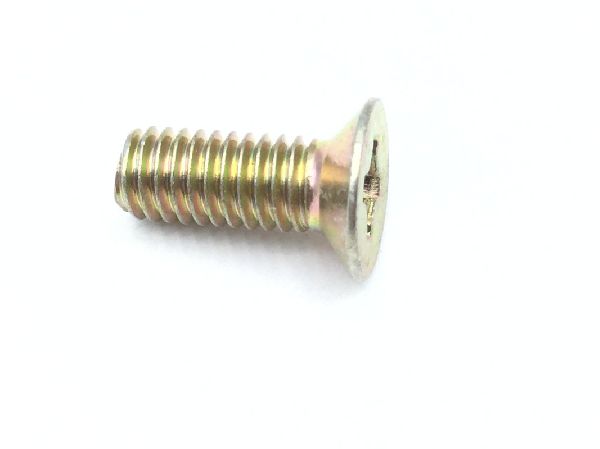

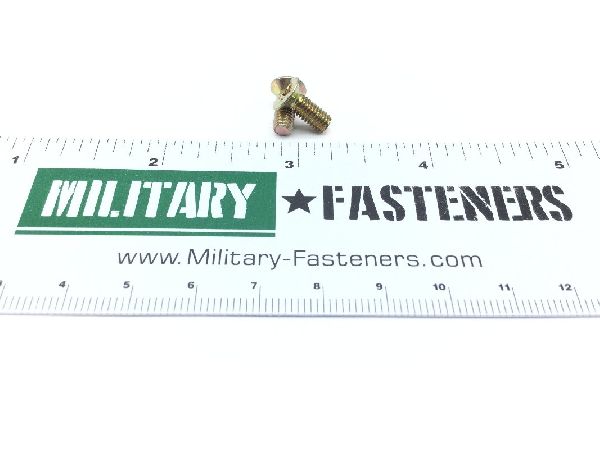

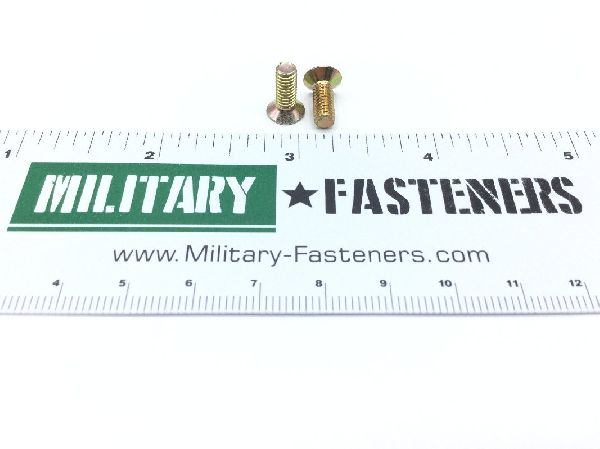

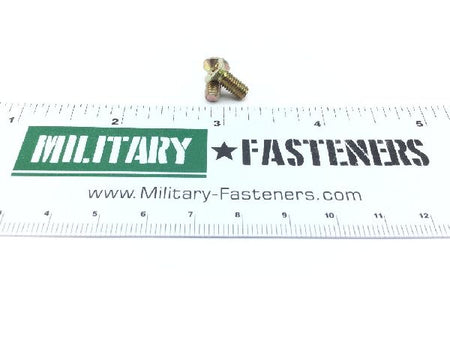

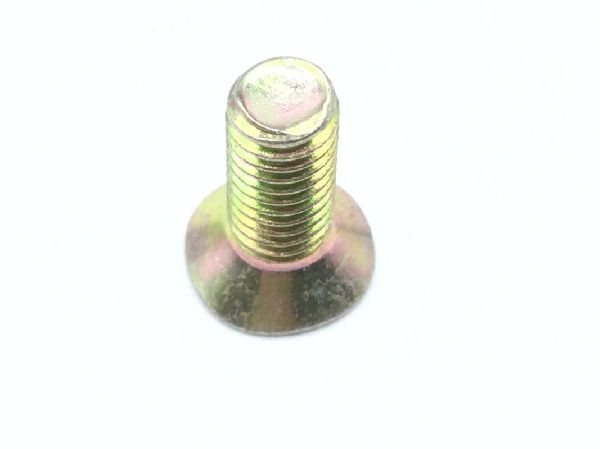

MS24693-S249 Machine Screw
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 7318.15.2091
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Countersink Angle
- Between 99.0 degrees and 101.0 degrees
- Fastener Length
- Between 0.407 inches and 0.438 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 60000 pounds per square inch
- Nondefinitive Specification/std Data
- 3 type and 3c style
- Screw Material
- Steel
- Screw Material Specification
- Qq-s-637 federal specification single material response or 66 federal standard single material response
- Screw Surface Treatment
- Cadmium and chromate
- Screw Surface Treatment Specification
- Qq-p-416 ty2 cl3 federal specification single treatment response
- Thread Diameter
- 0.164 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.279 inches and 0.366 inches
- Thread Qty Per Inch (tpi)
- 36
- Thread Series Designator
- Unf (fine thread)
- Head Diameter
- Between 0.285 inches and 0.332 inches
