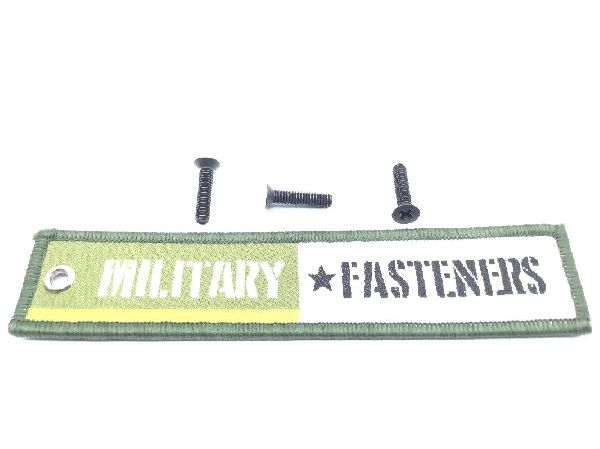

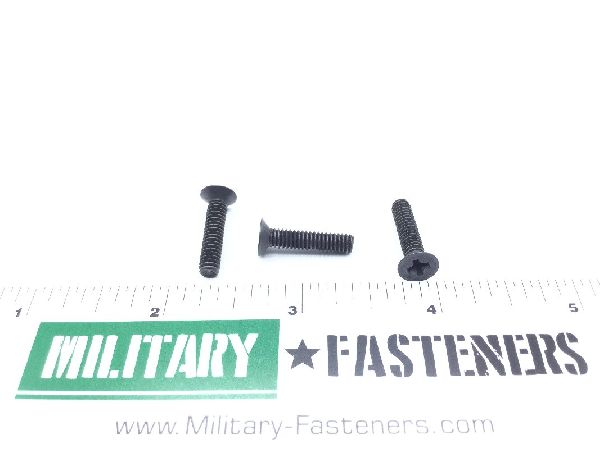

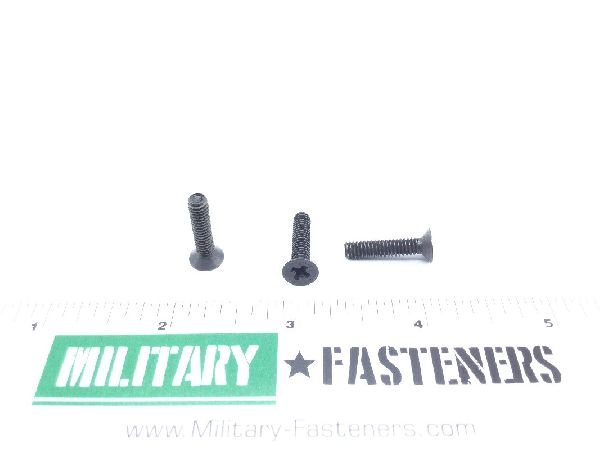

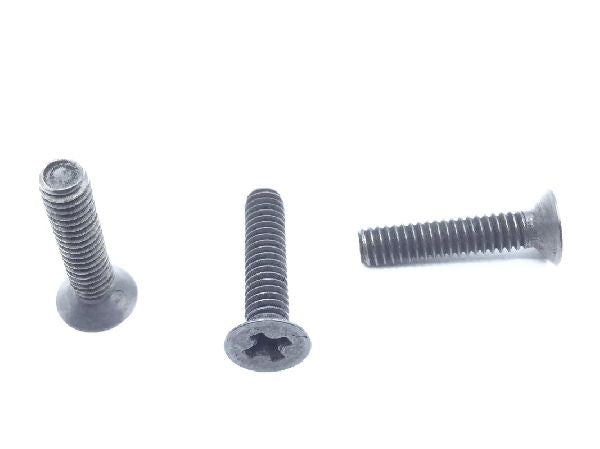

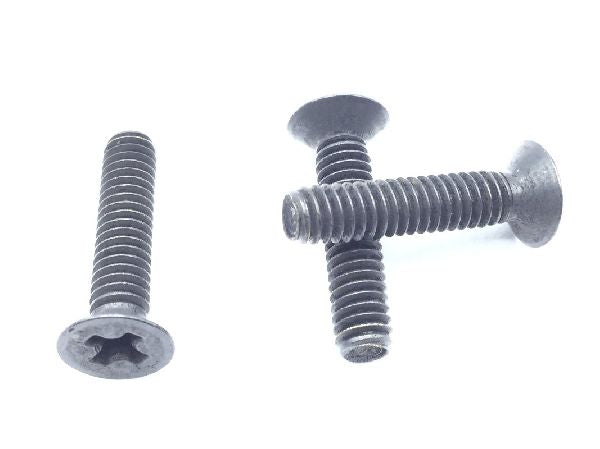

MS24693BB52 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.37

Units per Pack 100

Price per Pack $37.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $37.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 0.750 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 55000 pounds per square inch
Screw Material: Copper alloy
Screw Material Specification: Qq-b-626 federal specification single material response or qq-w-321 federal specification single material response
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.688 inches and 0.750 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.285 inches and 0.332 inches
