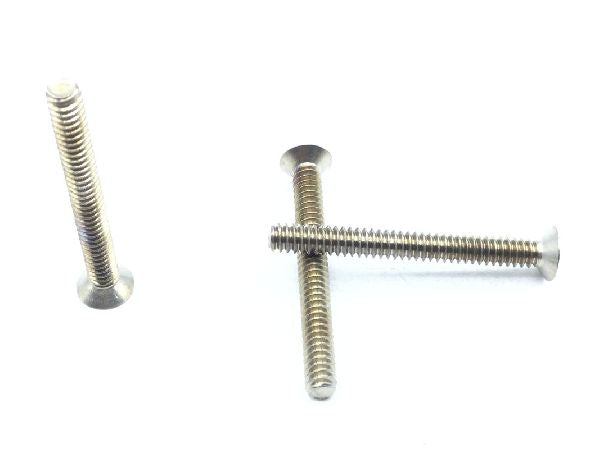

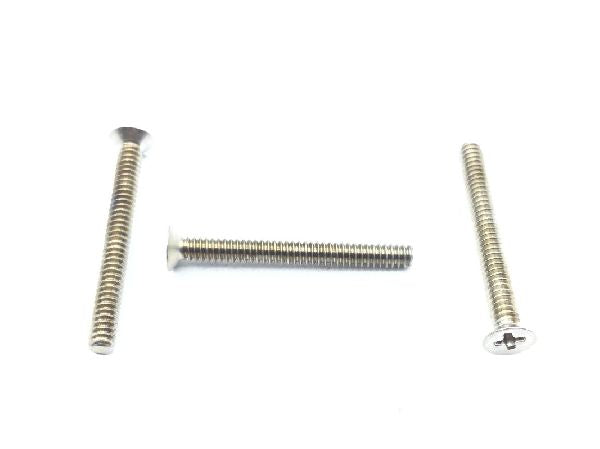

MS24693C10 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.29

Units per Pack 100

Price per Pack $29.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $29.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.969 inches and 1.000 inches
Internal Drive Style: Cross recess type 1
Screw Material: Stainless Steel
Screw Material Specification: 66 federal standard single material response
Screw Surface Treatment: Passivate
Thread Diameter: 0.112 inches
Thread Direction: Right-hand
Thread Length: Between 0.919 inches and 0.969 inches
Thread Qty Per Inch (tpi): 40
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.191 inches and 0.225 inches
