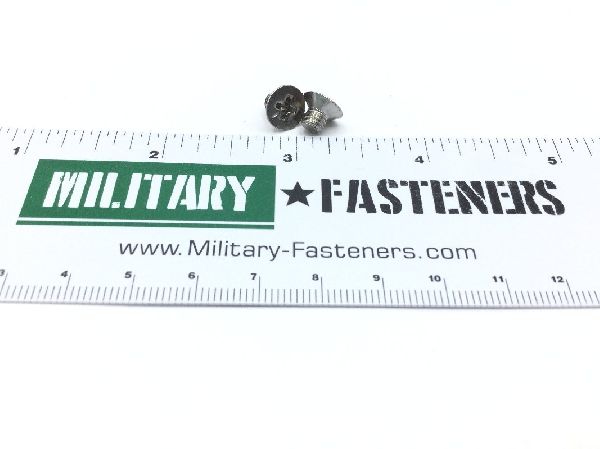

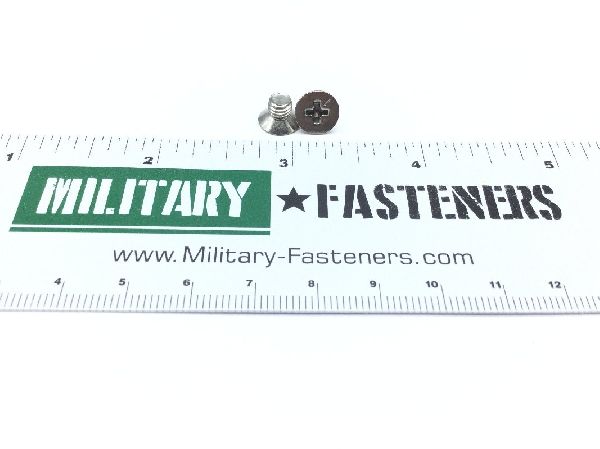

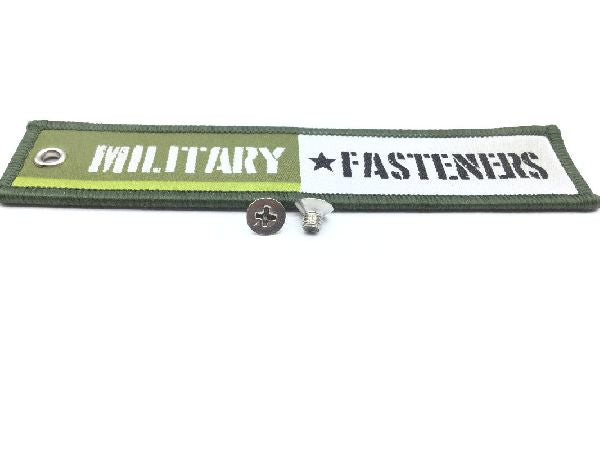

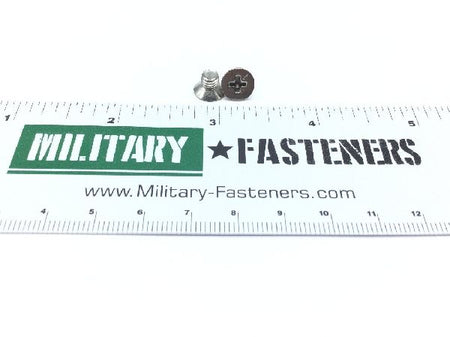

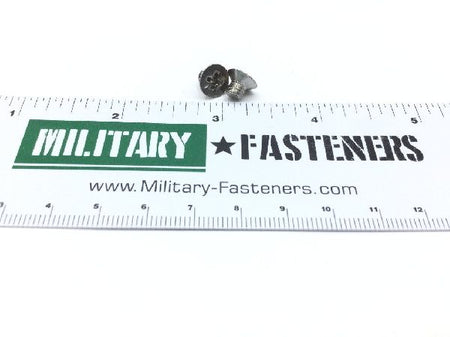

MS24693C268 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99 degrees and 101 degrees
Fastener Length: Between 0.219 inches and 0.25 inches
Internal Drive Style: Cross recess type 1
Screw Material: Steel comp
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Passivate
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.188 inches and 0.250 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.333 inches and 0.385 inches
