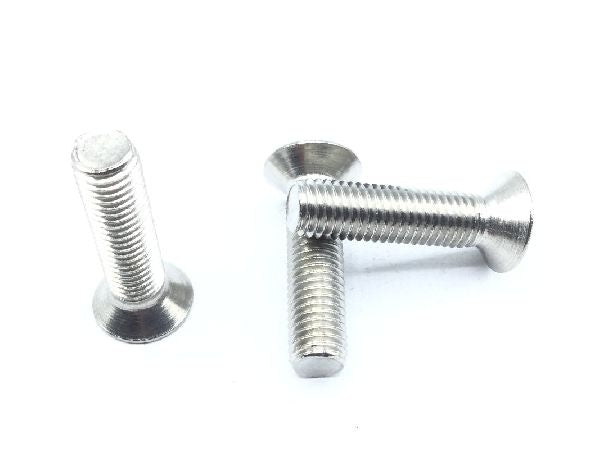

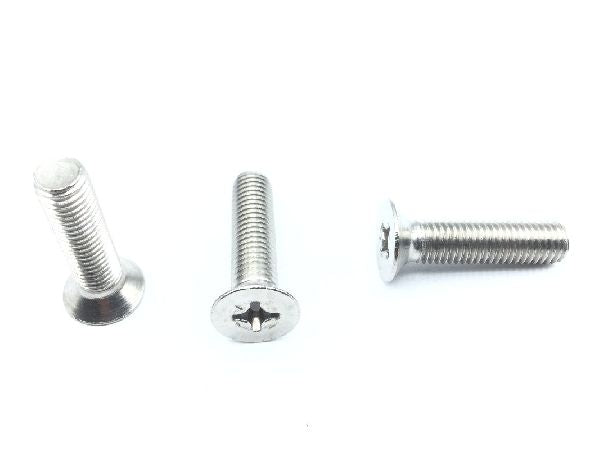

MS24693C298 Machine Screw

Product Series: MS
ECCN: 9A991
Schedule: 7318.15.2091

Price per Unit $0.79

Units per Pack 50

Price per Pack $39.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $39.50

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 1.000 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 80000 pounds per square inch
Screw Material: Steel comp 302 or steel comp 303 or steel comp 304
Screw Material Specification: 66 federal standard all material responses
Screw Surface Treatment: Passivate
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.929 inches and 1.000 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.442 inches and 0.507 inches
