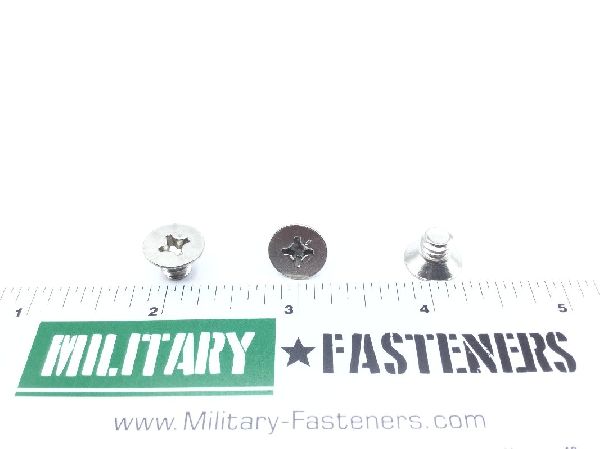

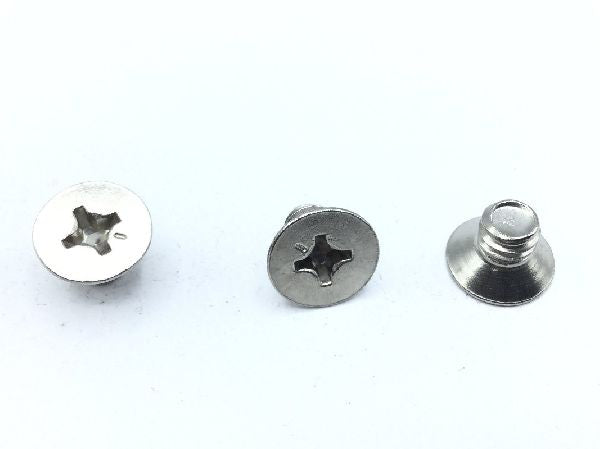

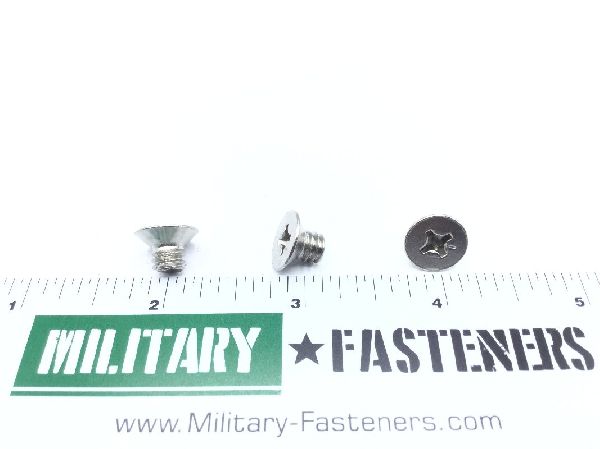

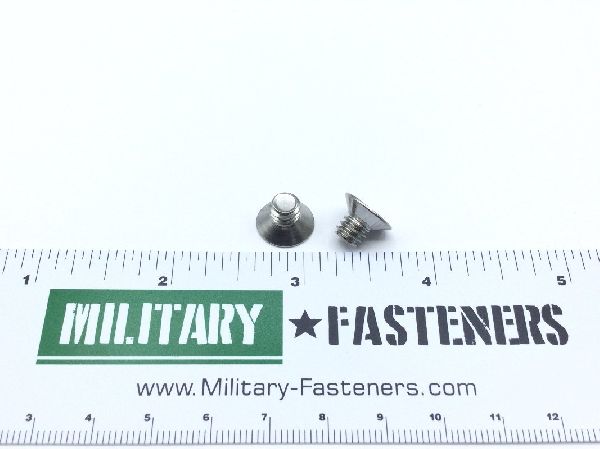

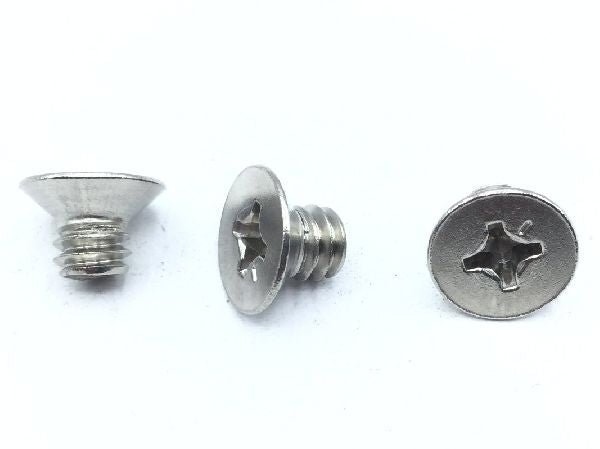

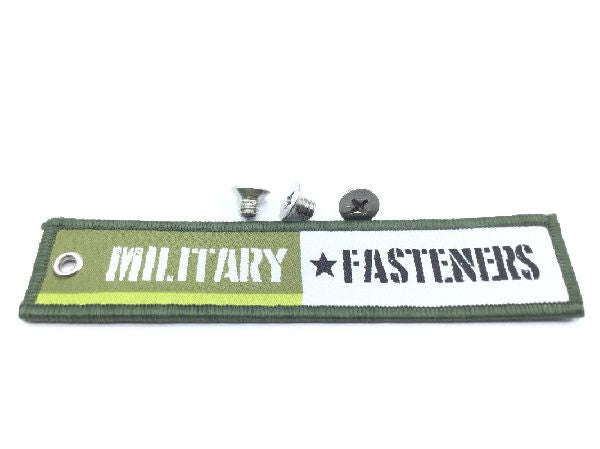

MS24693C91 Machine Screw
- Product Series
- MS
- ECCN
- EAR99
- Schedule
- 7318.15.9000
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Countersink Angle
- Between 99.0 degrees and 101.0 degrees
- Fastener Length
- Between 0.281 inches and 0.312 inches
- Internal Drive Style
- Cross recess type 1
- Min. Tensile Strength (psi)
- 80000 pounds per square inch
- Nondefinitive Specification/std Data
- 3 type and 3c style
- Screw Material
- Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316
- Screw Material Specification
- 66 federal standard all material responses
- Screw Surface Treatment
- Passivate
- Screw Surface Treatment Specification
- Qq-p-35 federal specification single treatment response
- Thread Diameter
- 0.250 inches
- Thread Direction
- Right-hand
- Thread Length
- Between 0.071 inches and 0.202 inches
- Thread Qty Per Inch (tpi)
- 20
- Thread Series Designator
- Unc (coarse thread)
- Head Diameter
- Between 0.442 inches and 0.507 inches
