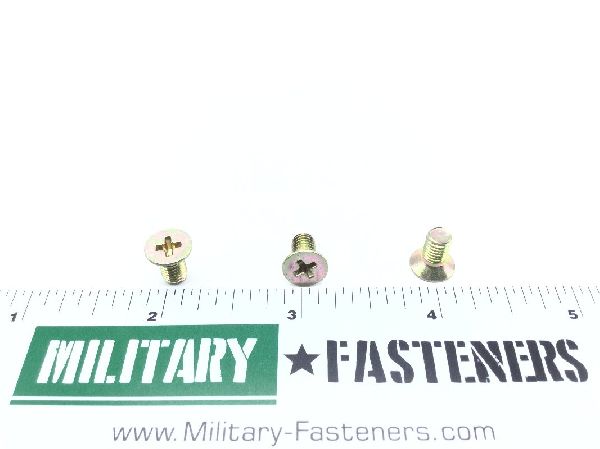

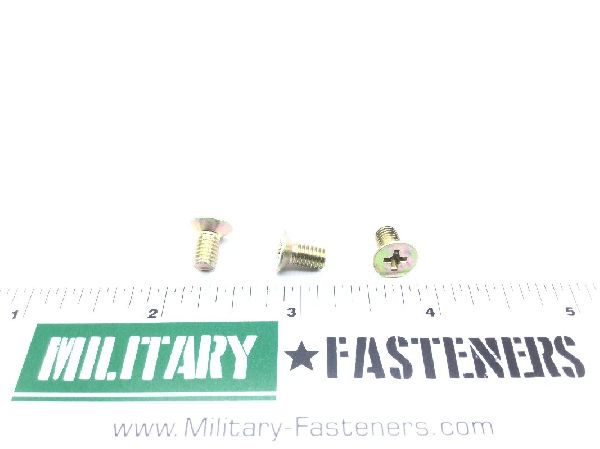

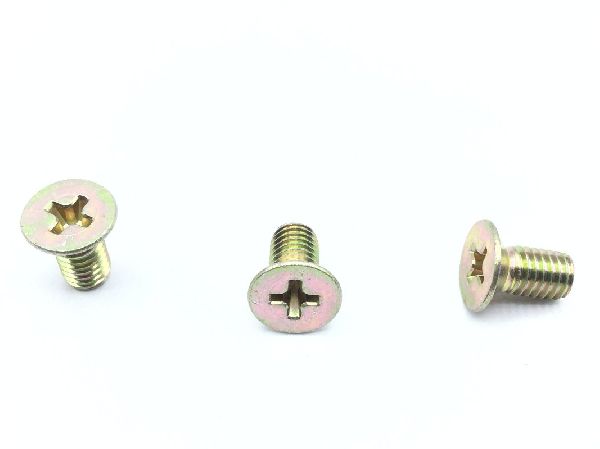

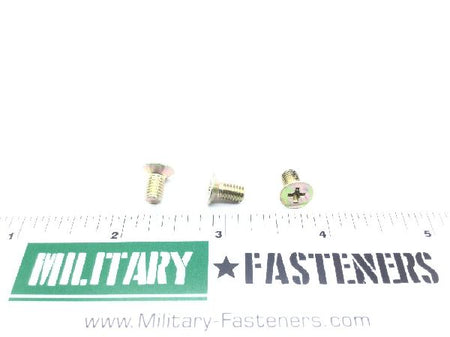

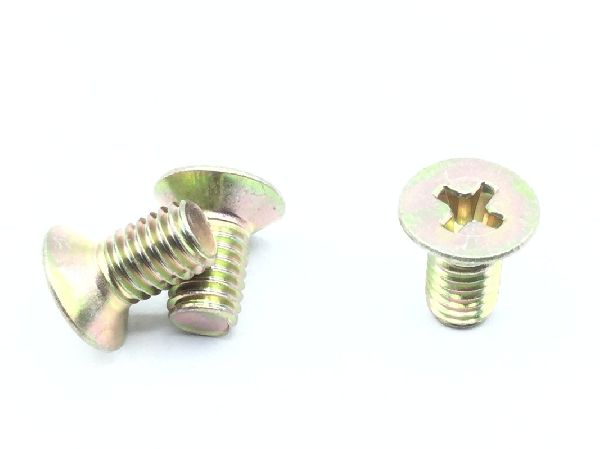

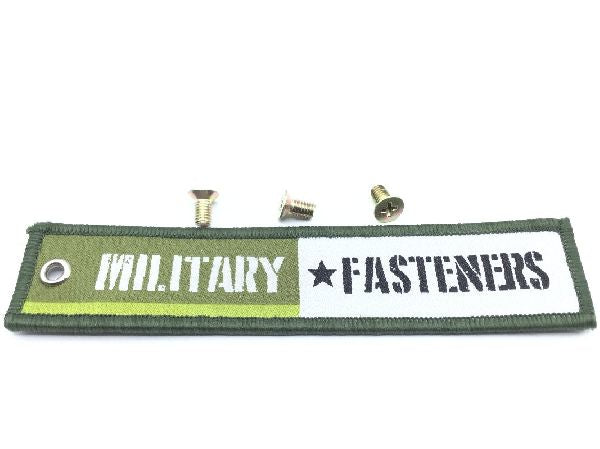

MS24693S270 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 0.375 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 60000 pounds per square inch
Screw Material: Steel
Screw Material Specification: 66 federal standard single material response
Screw Surface Treatment: Cadmium and chromate
Screw Surface Treatment Specification: Cl 3 federal specification single treatment response type 2 qq-p-416
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.313 inches and 0.375 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.333 inches and 0.385 inches
