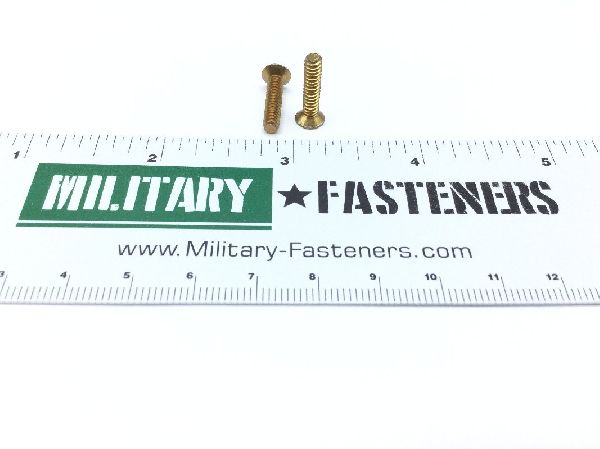

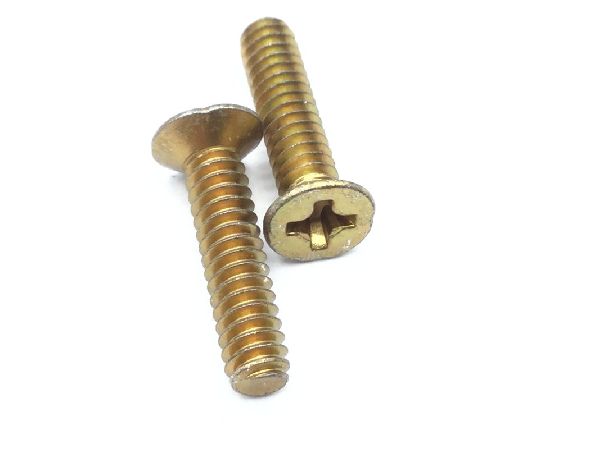

MS24693S29 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.30

Units per Pack 100

Price per Pack $30.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $30.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Class 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.594 inches and 0.625 inches
Internal Drive Style: Cross recess type ii
Material Specification: 66 federal standard single material response
Min. Tensile Strength (psi): 60000 pounds per square inch
Nondefinitive Specification/std Data: 3 type and 3c style
Thread Diameter: 0.138 inches
Thread Direction: Right-hand
Thread Length: Between 0.472 inches and 0.565 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.238 inches and 0.279 inches
