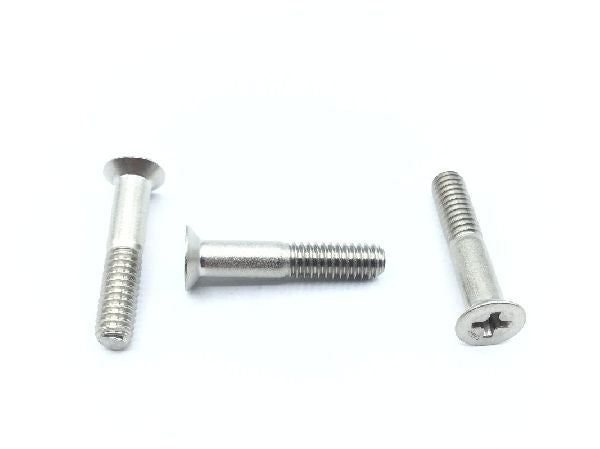

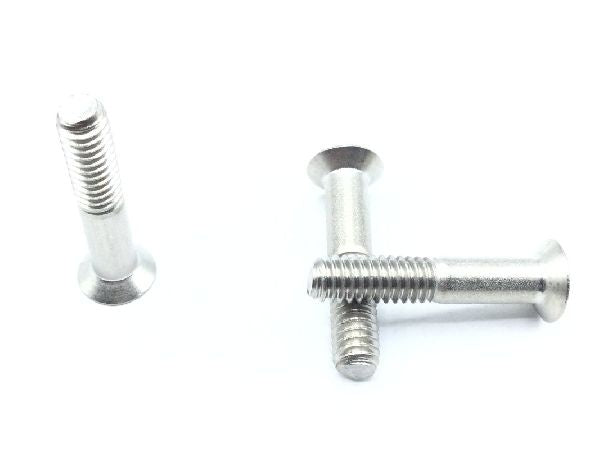

MS24694C10 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Head Style

Flat countersunk

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.828 inches and 0.875 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 85000 pounds per square inch
Screw Material: Steel comp 302 or steel comp 303 or steel comp 304 or steel comp 305 or steel comp 316
Screw Surface Treatment: Passivate
Screw Surface Treatment Specification: Qq-p-35 federal specification single treatment response
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.406 inches and 0.485 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.283 inches and 0.332 inches
