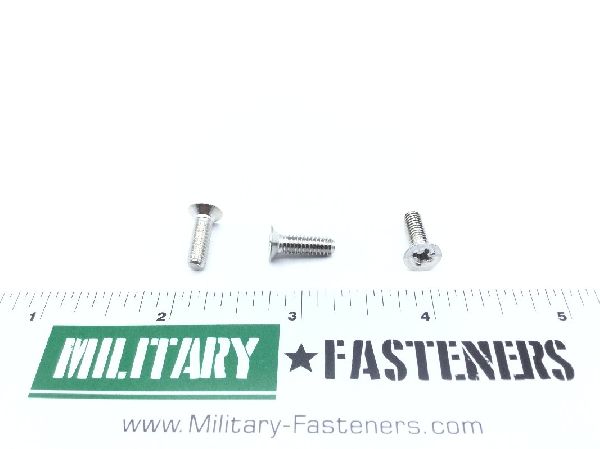

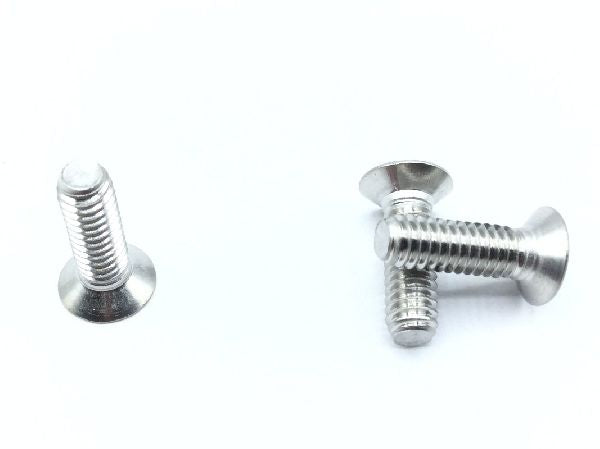

MS24694C5 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.38

Units per Pack 100

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.516 inches and 0.562 inches
Internal Drive Style: Cross recess type 1
Material Specification: 66 federal standard all material responses
Min. Tensile Strength (psi): 85000 pounds per square inch
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: Between 0.329 inches and 0.468 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: Between 0.283 inches and 0.332 inches
