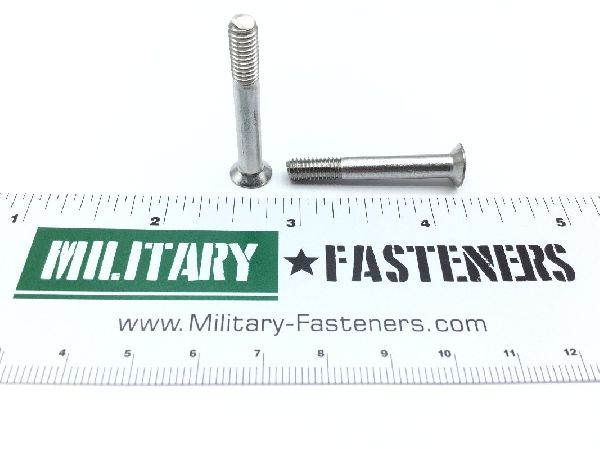

MS24694C63 Machine Screw

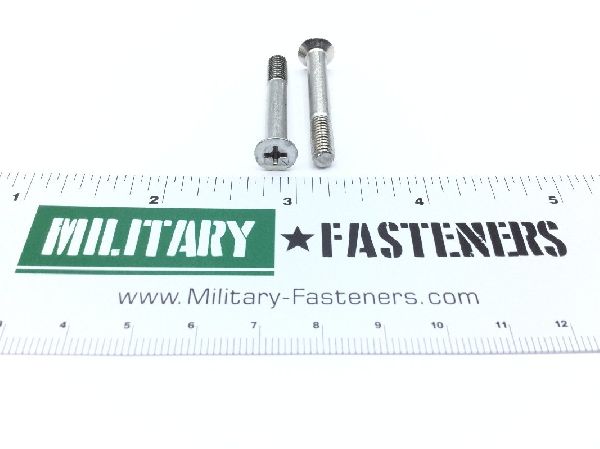

MS24694C63 Machine Screw (2)

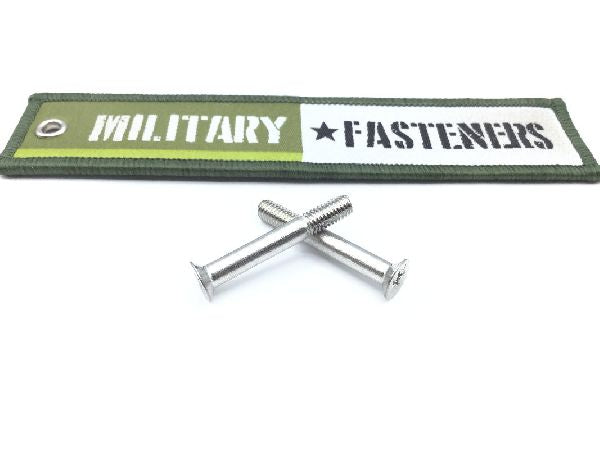

MS24694C63 Machine Screw (3)

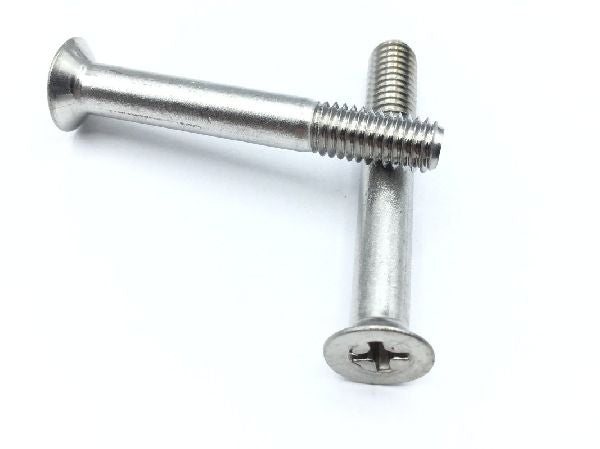

MS24694C63 Machine Screw (4)

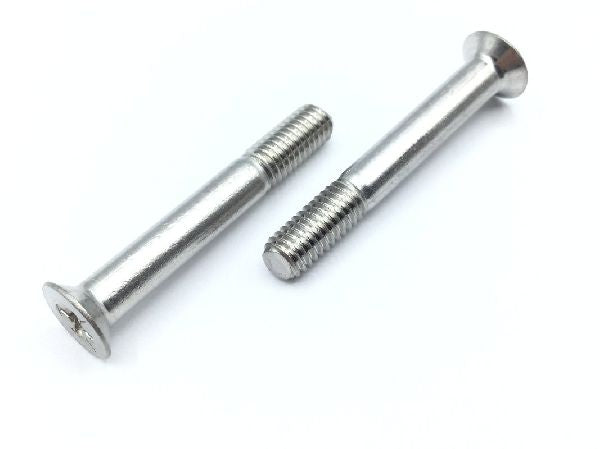

MS24694C63 Machine Screw (5)

MS24694C63 Machine Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

MS24694C63 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.56

Units per Pack 100

Price per Pack $56.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $56.00

Add item to quote

Head Style

Flat countersunk

Material

Steel comp

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3a

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.329 inches and 1.375 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 85000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.454 inches and 0.531 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.327 inches and 0.385 inches
