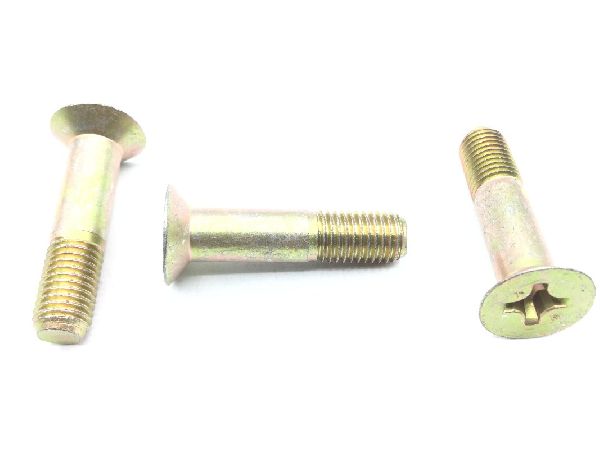

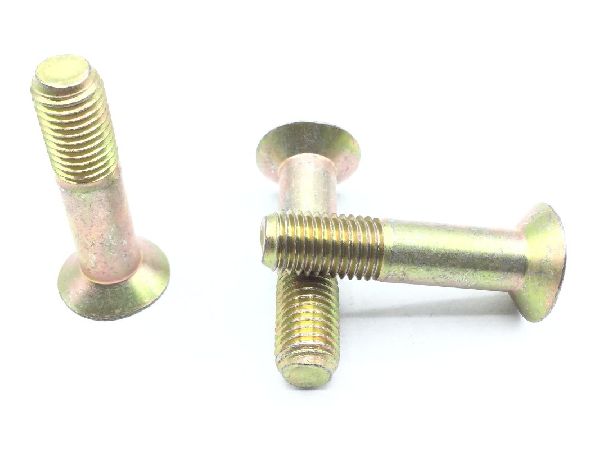

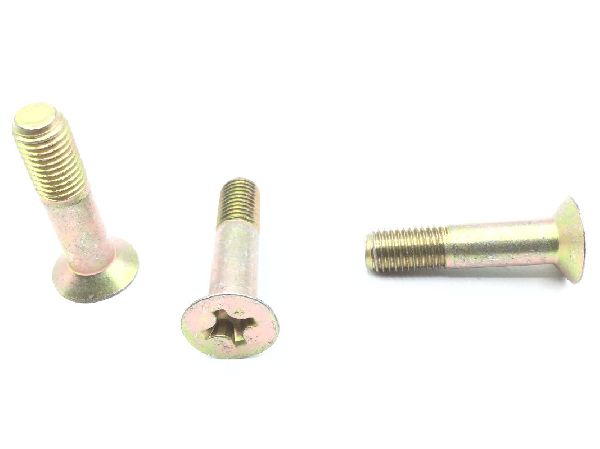

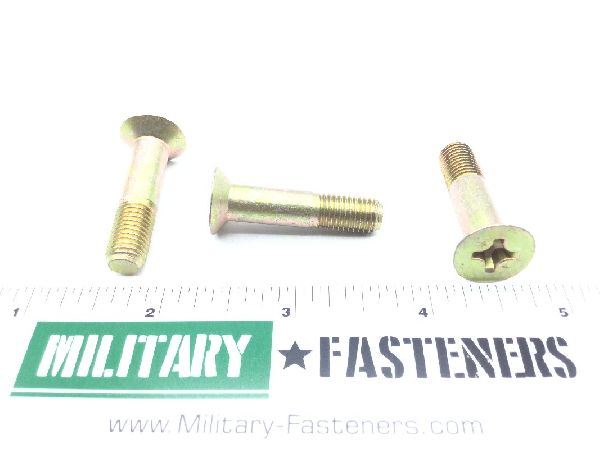

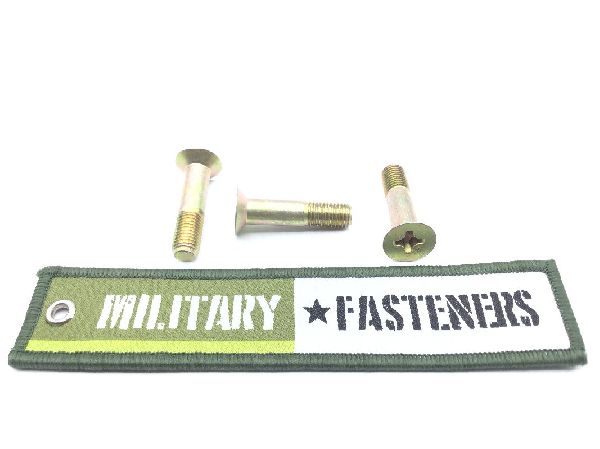

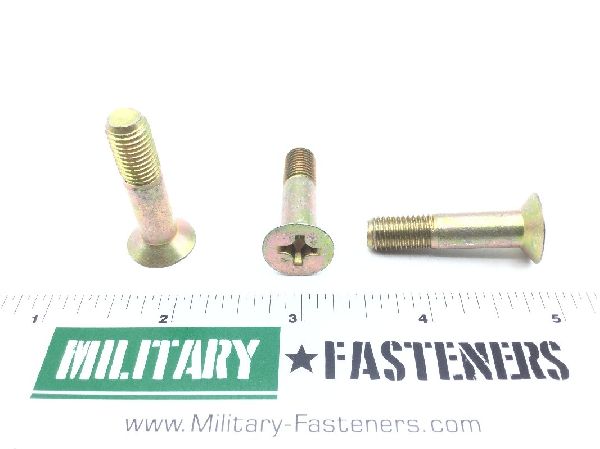

MS24694S153 Machine Screw

Product Series: MS
ECCN: EAR99
Schedule: 7318.15.2091

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 1.344 inches and 1.391 inches
Hardness Rating: Between 22.0 rockwell c and 32.0 rockwell c
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-6050 military specification 1st material response or ams 6300 assn standard 2nd material response
Min. Tensile Strength (psi): 125000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: Between 0.464 inches and 0.625 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Head Diameter: Between 0.569 inches and 0.635 inches
